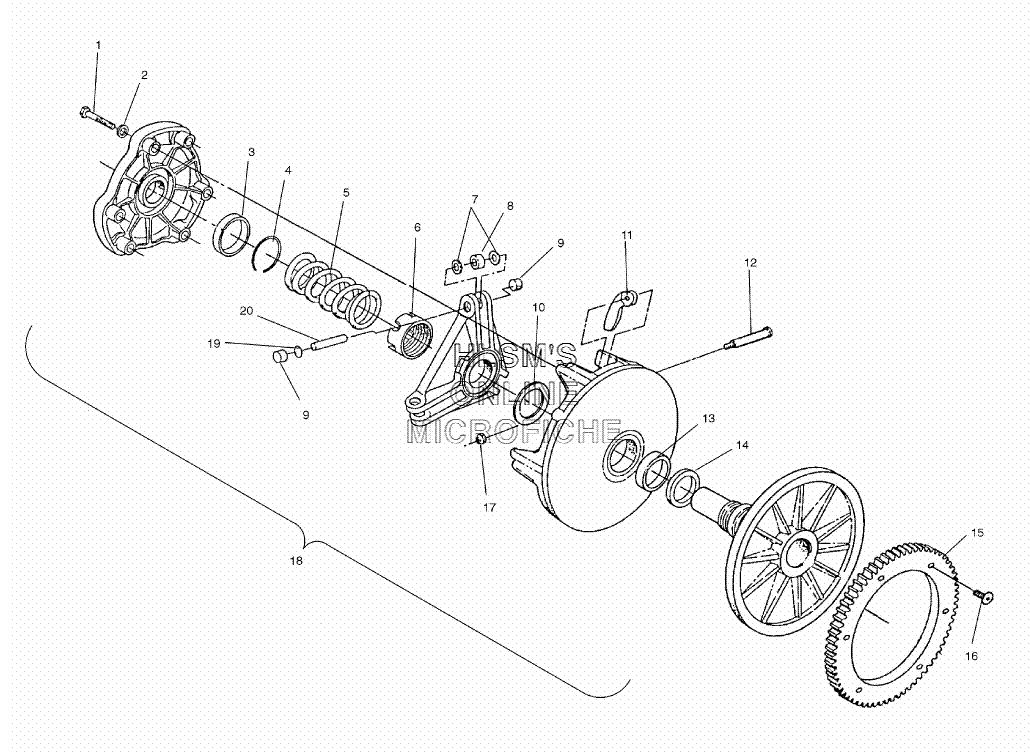

CLUTCH DRIVE (ELECTRIC START MODELS) для Polaris 800 XC SP M-10 F/O (S02NE8CS) - 2002 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK WASHERLOCK WASHER
-
33514347 COVER, BEARING, GARMAXCOVER, BEARING, GARMAX
-
47710417 RING, RETAINING, BOLTRING, RETAINING, BOLT
-
57041781 SPRING, CLUTCH (DARK BLUE/WHITE)SPRING, CLUTCH (DARK BLUE/WHITE)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210754 SPACER [.050'']SPACER [.050'']
-
105210753 SPACER [.032'']SPACER [.032'']
-
105242981 SPACER [.025'']SPACER [.025'']
-
105210752 SPACER [.020'']SPACER [.020'']
-
111321584 WT/BUSH.ASSY. (10-66 (3)WT/BUSH.ASSY. (10-66 (3)
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING, RETAINERBUSHING, RETAINER
-
155131062 GEAR-RINGGEAR-RING
-
167515351 BOLT, RING GEARBOLT, RING GEAR
-
177541906 NUT FLEX LOCNUT FLEX LOC
-
181322022 DRIVE CLUTCH ASSY., ES, BASIC, #125 [INCL. ALL LESS 5, 11]DRIVE CLUTCH ASSY., ES, BASIC, #125 [INCL. ALL LESS 5, 11]
-
192200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
205133054 PIN, ROLLER (1-1/8)PIN, ROLLER (1-1/8)
