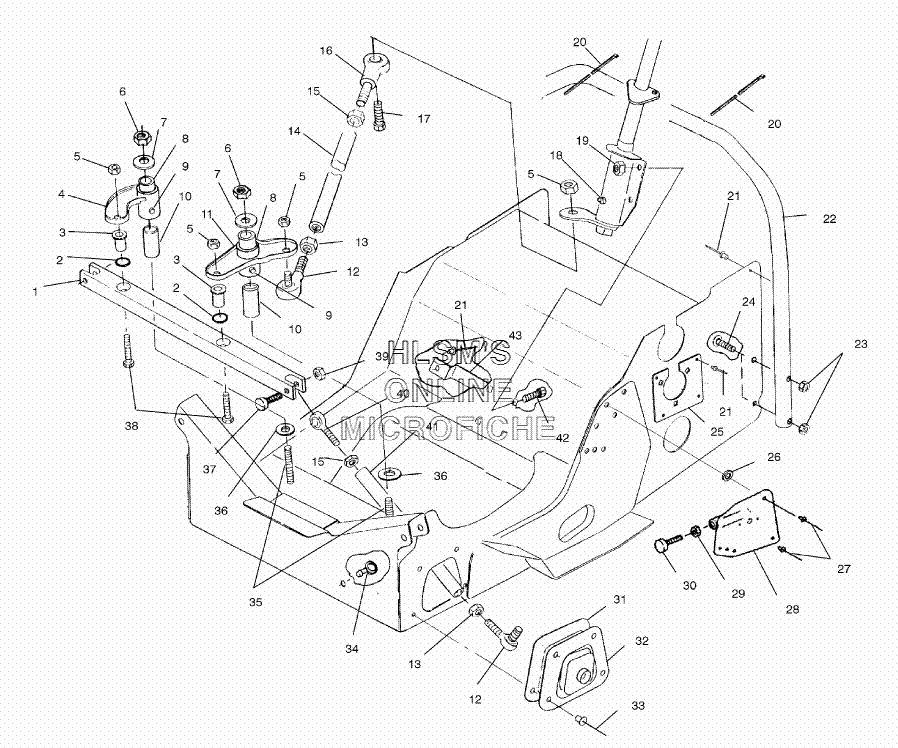

STEERING ASSEMBLY для Polaris 800 XCR (S02SB8AS) - 2002 года выпуска
-
№АртикулНазвание
-
11820691 STEERING RACK ASSY., W/WEBBS (LEFT)STEERING RACK ASSY., W/WEBBS (LEFT)
-
25411220 O-RINGO-RING
-
35010384 TUBE, SPACERTUBE, SPACER
-
41820579 IDLER ARM (INCL. 8, 9)IDLER ARM (INCL. 8, 9)
-
57542403 NUT LOCKNUT LOCK
-
67547029 NUT, FLEX LOCKNUT, FLEX LOCK
-
77555721 WASHERWASHER
-
83563907 BUSHINGBUSHING
-
97080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
105010468 SPACERSPACER
-
111822562 ARM, PITMAN ASSY. (INCL. 8, 9)ARM, PITMAN ASSY. (INCL. 8, 9)
-
127060174 ROD, END (RIGHT)ROD, END (RIGHT)
-
137542401 NUT, HEXNUT, HEX
-
145333411 ROD, DRAGLINKROD, DRAGLINK
-
157542424 NUTNUT
-
167060164 ROD END (LEFT)ROD END (LEFT)
-
177512404 BOLTBOLT
-
187080424 FITTING, LUBEFITTING, LUBE
-
197542303 NUT FLEX, LOCNUT FLEX, LOC
-
207080804 CABLE TIECABLE TIE
-
217661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
221012902-067 STEERING HOOP (BLACK)STEERING HOOP (BLACK)
-
237542103 NUT, LOCKNUT, LOCK
-
247512275 BOLT, CARRIAGEBOLT, CARRIAGE
-
255211806-067 PLATE, BEARING SUPPORTPLATE, BEARING SUPPORT
-
267555965 WASHERWASHER
-
277661130 RIVETRIVET
-
281013177 TORQUE STOPTORQUE STOP
-
297542414 NUT, HEXNUT, HEX
-
303021081 STOP, TORQUESTOP, TORQUE
-
315411249 BOOT, TIERODBOOT, TIEROD
-
325211796-067 PLATE, BOOTPLATE, BOOT
-
337621323 POP, RIVETPOP, RIVET
-
344020139 CLIP, PLASTICCLIP, PLASTIC
-
357517402 SCREWSCREW
-
367556053 WASHERWASHER
-
377515434 SCREWSCREW
-
387517574 SCREWSCREW
-
397542411 NUT, LOCKNUT, LOCK
-
407060166 ROD END (LEFT)ROD END (LEFT)
-
415020970-067 ROD, TIE (BLACK)ROD, TIE (BLACK)
-
427517428 BOLTBOLT
-
435241997 BRACKET, BOLT RETAINERBRACKET, BOLT RETAINER
