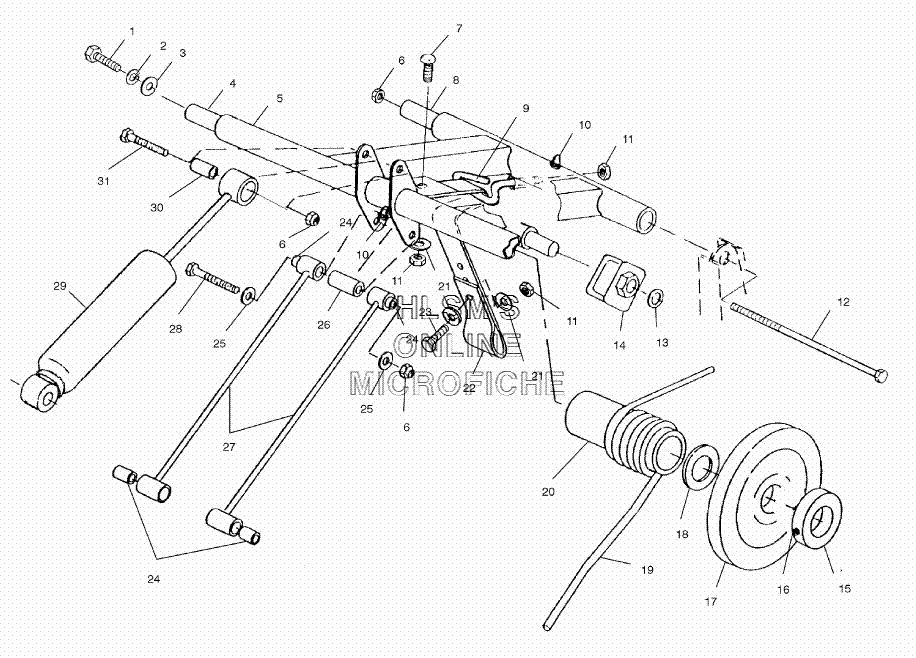

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 800 XCR (S02SB8AS) - 2002 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45131910 SHAFT, TORQUE (REAR/UPPER)SHAFT, TORQUE (REAR/UPPER)
-
51541290-067 ARM, TORQUE (REAR/BLACK)ARM, TORQUE (REAR/BLACK)
-
67542411 NUT, LOCKNUT, LOCK
-
77512377 BOLTBOLT
-
85333536 SHAFTSHAFT
-
97010050 BOLT, EYEBOLT, EYE
-
107080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
117542324 NUTNUT
-
127517232 SCREWSCREW
-
137080394 CLIPCLIP
-
145432983 ROLLER, SPRINGROLLER, SPRING
-
155131911 COLLAR, BEARING LOCKCOLLAR, BEARING LOCK
-
167512257 SCREW SETSCREW SET
-
171543023 WHEEL, CARRIERWHEEL, CARRIER
-
173514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
177718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
187555787 WASHER, REVERSEWASHER, REVERSE
-
197041627-067 SPRING, TORSION (LEFT/BLACK) (.347/77)SPRING, TORSION (LEFT/BLACK) (.347/77)
-
197041628-067 SPRING, TORSION (RIGHT/BLACK) (.347/77)SPRING, TORSION (RIGHT/BLACK) (.347/77)
-
197041629-067 SPRING, TORSION (LEFT/BLACK) (.359/77)SPRING, TORSION (LEFT/BLACK) (.359/77)
-
197041630-067 SPRING, TORSION (RIGHT/BLACK) (.359/77)SPRING, TORSION (RIGHT/BLACK) (.359/77)
-
197041631-067 SPRING, TORSION (LEFT/BLACK) (.375/77)SPRING, TORSION (LEFT/BLACK) (.375/77)
-
197041632-067 SPRING, TORSION (RIGHT/BLACK) (.375/77)SPRING, TORSION (RIGHT/BLACK) (.375/77)
-
205433007 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
217555959 WASHERWASHER
-
225411061 STRAP, LIMITERSTRAP, LIMITER
-
237512310 SCREWSCREW
-
245020561 BUSHING, PIVOT TUBEBUSHING, PIVOT TUBE
-
257555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
265333559 SPACERSPACER
-
271541015-067 ROD, SHOCKROD, SHOCK
-
287515472 BOLTBOLT
-
297041947 SHOCK, REAR TRACKSHOCK, REAR TRACK
-
305010422 BUSHINGBUSHING
-
317515540 BOLTBOLT
