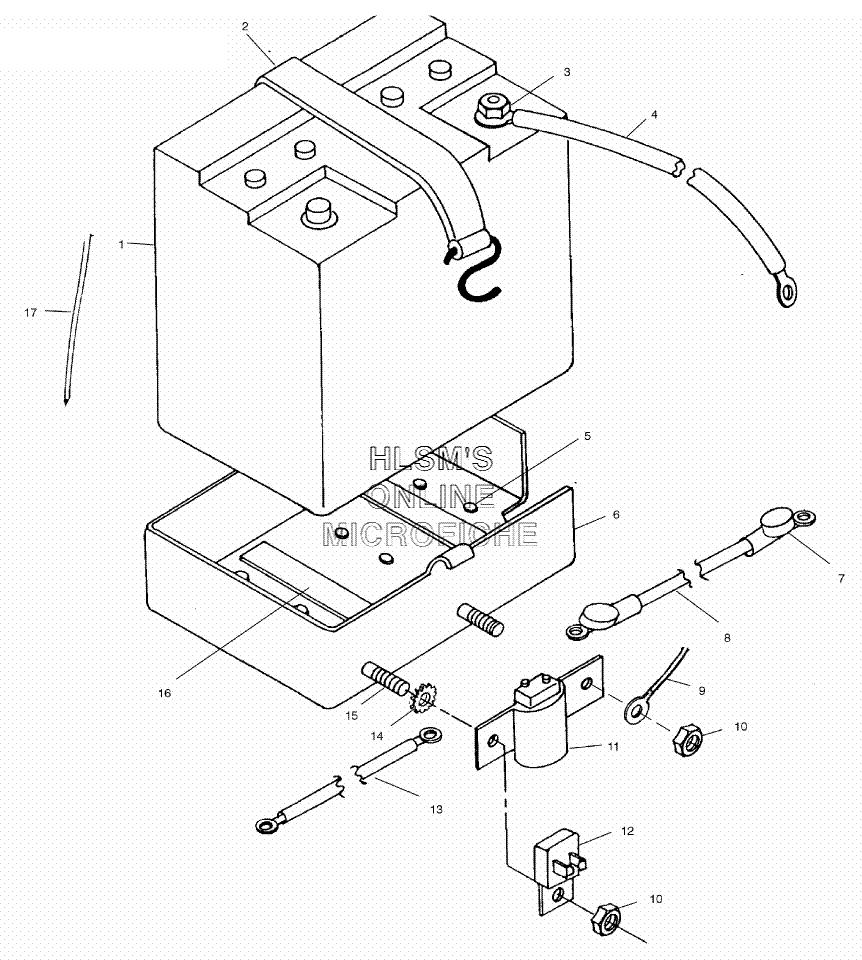

BATTERY BOX для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска
-
№АртикулНазвание
-
14140006 BATTERYBATTERY
-
22450022 STRAP, BATTERYSTRAP, BATTERY
-
32200361 BOLT, BATTERY KIT (SHORT)BOLT, BATTERY KIT (SHORT)
-
42460306 CABLE, STARTER (RED)CABLE, STARTER (RED)
-
57621472 RIVETRIVET
-
61011828-067 BOX, BATTERY (BLACK)BOX, BATTERY (BLACK)
-
75410346 INSUL.CABLE SOL.INSUL.CABLE SOL.
-
84010072 CABLE, STARTER (20.5'' BLACK)CABLE, STARTER (20.5'' BLACK)
-
94010108 WIRE, JUMPER (SOL/BATT, 8.5'') (IF BUILT AFTER 11/01/01)WIRE, JUMPER (SOL/BATT, 8.5'') (IF BUILT AFTER 11/01/01)
-
107541925 NUTNUT
-
113085521 SWITCH, MAGNETICSWITCH, MAGNETIC
-
122434008 CIRCUIT BREAKERCIRCUIT BREAKER
-
134010074 CABLE, STARTER (BLACK)CABLE, STARTER (BLACK)
-
147571602 WASHERWASHER
-
157512027 SCREWSCREW
-
165810317 PAD, FUELTANK BRACKETPAD, FUELTANK BRACKET
-
175432077 TUBE, BATTERY VENTTUBE, BATTERY VENT
Все узлы модели:
- • BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HOOD ACCESSORIES
- HOOD ASSEMBLY W/ WINDSHIELD AND HEADLIGHT
- NOSEPAN AND CONSOLE ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ TUNNEL ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
