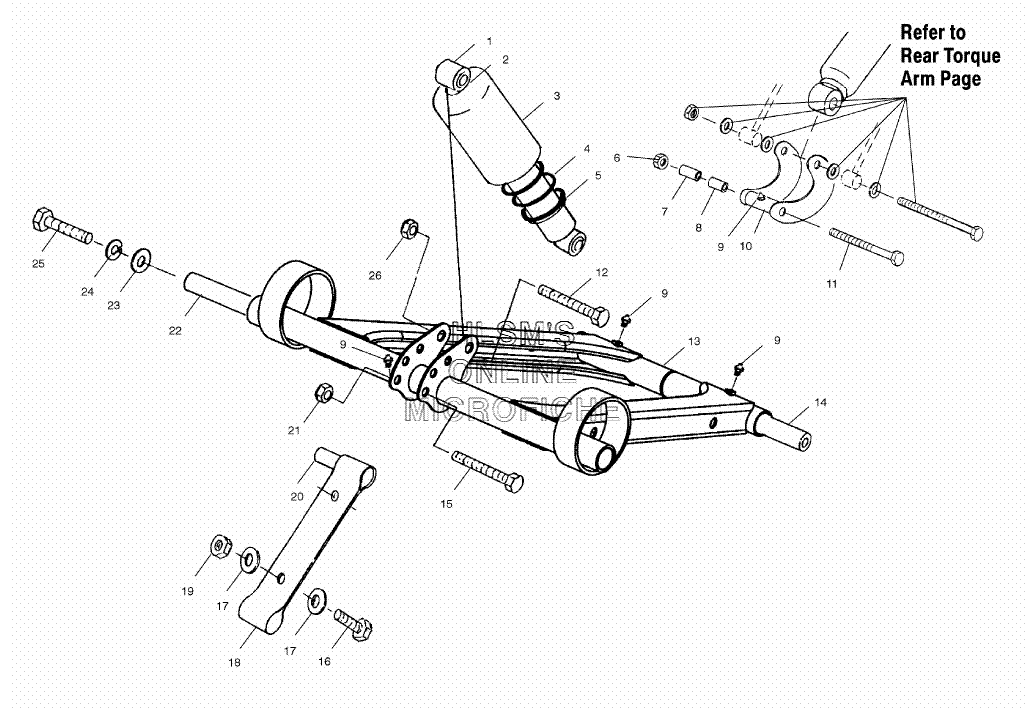

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris INDY 340 DELUXE (S02LD3AS) - 2002 года выпуска
-
№АртикулНазвание
-
17041930 SHOCK, FRONT, TRACK (1.25)SHOCK, FRONT, TRACK (1.25)
-
25020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
35430671 SHIELD, SPRINGSHIELD, SPRING
-
47041570-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
55245067 RETAINER, SPRING (GAB, PLATED)RETAINER, SPRING (GAB, PLATED)
-
67542403 NUT LOCKNUT LOCK
-
75333028 SPACERSPACER
-
85020561 BUSHING, PIVOT TUBEBUSHING, PIVOT TUBE
-
97080424 FITTING, LUBE.FITTING, LUBE.
-
101540942-067 ARM, SHOCKARM, SHOCK
-
117515438 BOLTBOLT
-
127515433 BOLTBOLT
-
131541522-067 ARM, FRONT, TRQ (LX, 1.28, BLACK)ARM, FRONT, TRQ (LX, 1.28, BLACK)
-
145333511 SHAFTSHAFT
-
157515319 BOLTBOLT
-
167517313 SCREWSCREW
-
177556175 WASHERWASHER
-
185811281 STRAP, LIMITER (XL)STRAP, LIMITER (XL)
-
197542344 NUT, NYLOCNUT, NYLOC
-
205333897 BUSHINGBUSHING
-
217542324 NUTNUT
-
225020908 SHAFTSHAFT
-
237555893 WASHERWASHER
-
247552603 WASHERWASHER
-
257517435 BOLTBOLT
-
267542439 NUT, NYLOKNUT, NYLOK
