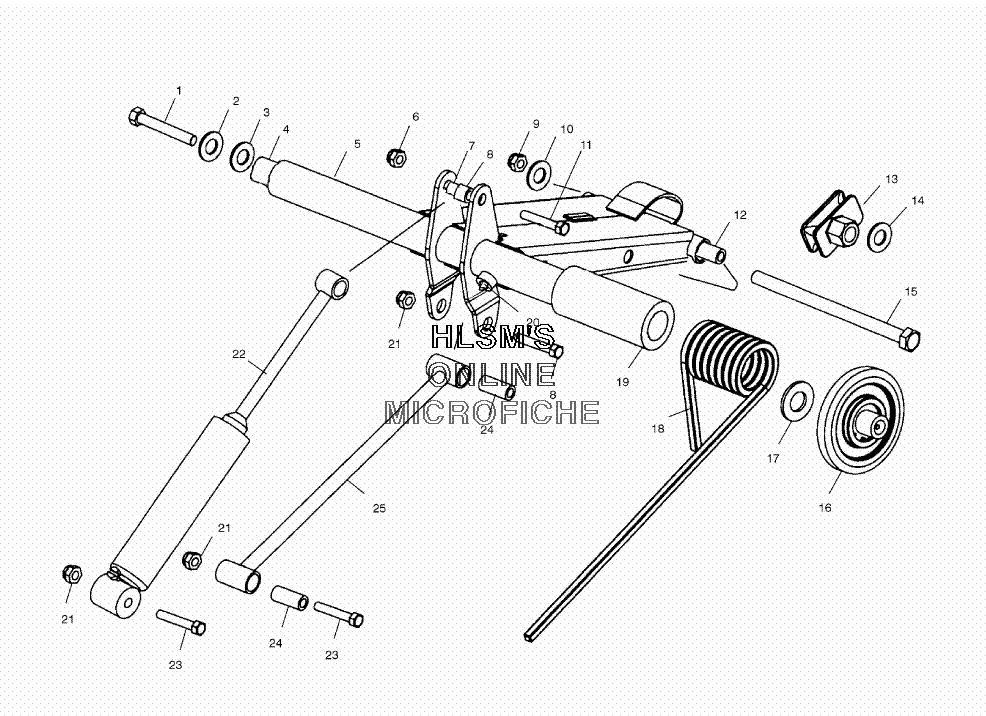

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris TRAIL RMK 136 (S02SR5BS) - 2002 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45131450 SHAFTSHAFT
-
51541432-067 WELD-REAR, TORQUE-ARM, XL (BLACK)WELD-REAR, TORQUE-ARM, XL (BLACK)
-
67542324 NUTNUT
-
75333030 BUSHING, R.SHOCKBUSHING, R.SHOCK
-
85430537 BUSHINGBUSHING
-
97547064 NUTNUT
-
107558402 WASHER STEELWASHER STEEL
-
117512329 BOLTBOLT
-
125333483 TUBETUBE
-
135432983 ROLLER, SPRING, ADJ, SQUARE, X10ROLLER, SPRING, ADJ, SQUARE, X10
-
147080394 CLIPCLIP
-
157517757 SCR, 5/16-24X5.00SCR, 5/16-24X5.00
-
161541285 WHEEL, CARRIER, W/COLLARWHEEL, CARRIER, W/COLLAR
-
177556301 MACHINERY BUSHINGMACHINERY BUSHING
-
187041627-067 SPRING-TORSION, .347SQ/77Ш (LEFT/BLACK)SPRING-TORSION, .347SQ/77Ш (LEFT/BLACK)
-
187041628-067 SPRING-TORSION, .347/77Ш (RIGHT/BLACK)SPRING-TORSION, .347/77Ш (RIGHT/BLACK)
-
187041631-067 SPRING-TORSION, .375/77Ш (LEFT/BLACK)SPRING-TORSION, .375/77Ш (LEFT/BLACK)
-
187041632-067 SPRING-TORSION, .375/77Ш (RIGHT/BLACK)SPRING-TORSION, .375/77Ш (RIGHT/BLACK)
-
195521475 TUBE, SPRINGTUBE, SPRING
-
207080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
217542439 NUT, NYLOKNUT, NYLOK
-
227041757 SHOCK, ADJ, XL, RR TRACKSHOCK, ADJ, XL, RR TRACK
-
237515415 BOLTBOLT
-
245010252 BUSHINGBUSHING
-
251541306-067 ROD, SHOCK, XL 136 (BLACK)ROD, SHOCK, XL 136 (BLACK)
