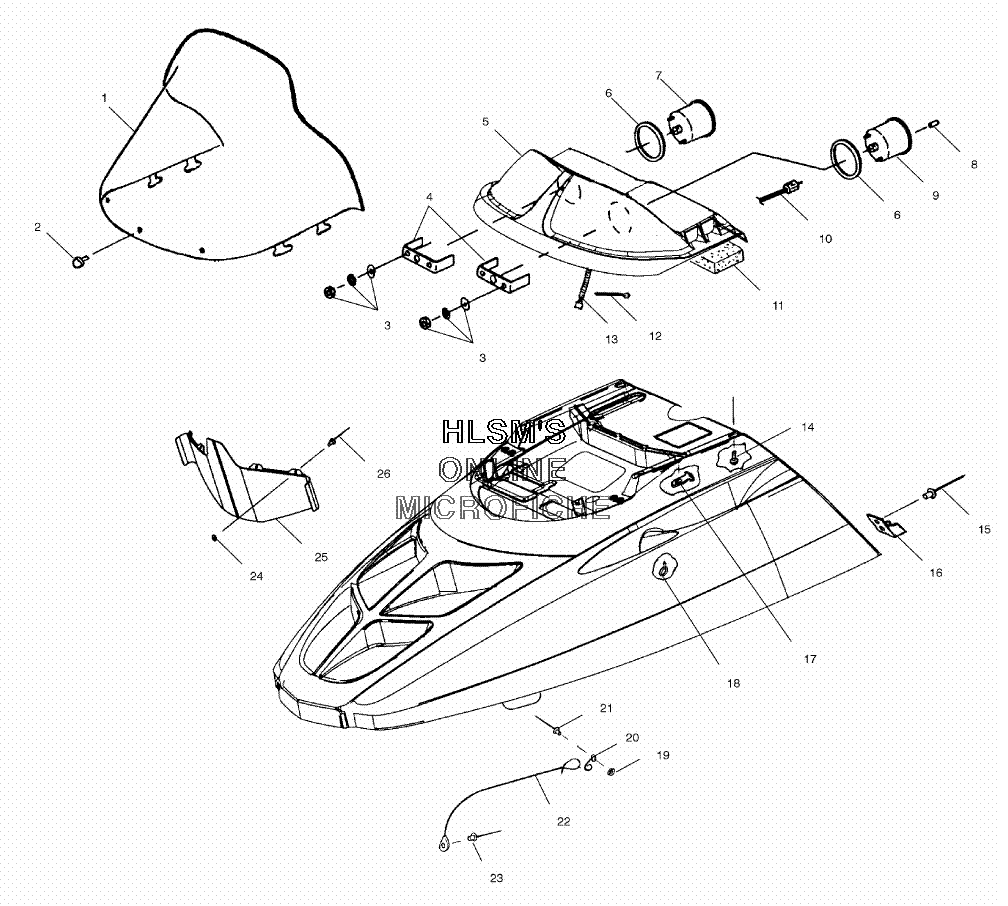

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris TRAIL RMK 136 (S02SR5BS) - 2002 года выпуска
-
№АртикулНазвание
-
15433165 WINDSHIELD-GEN 2, FLR, 14'' SMOKEWINDSHIELD-GEN 2, FLR, 14'' SMOKE
-
27621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
-
33280158 NUTNUT
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLATWASHER, FLAT
-
43280210 BRACKET, TACHOMETER/SPEEDOMETER, 5''BRACKET, TACHOMETER/SPEEDOMETER, 5''
-
52652208 HOUSING ASSY., INSTRUMENT (INCL. WARNING DECALS)HOUSING ASSY., INSTRUMENT (INCL. WARNING DECALS)
-
63280209 CUSHION, TACHOMETER/SPEEDOMETER, RUBBERCUSHION, TACHOMETER/SPEEDOMETER, RUBBER
-
73280329 TACHOMETER, 6 P, WHITE W/FUEL LT (INCL. 3, 4, 6)TACHOMETER, 6 P, WHITE W/FUEL LT (INCL. 3, 4, 6)
-
83280186 KNOB, TRIP ODOMETER (LEFT) THD.KNOB, TRIP ODOMETER (LEFT) THD.
-
93280328 SPEEDO, 5'', 120MPH, WHITE (INCL. 3, 4, 6)SPEEDO, 5'', 120MPH, WHITE (INCL. 3, 4, 6)
-
103280341 CABLE, SPEEDO, 90 IN.CABLE, SPEEDO, 90 IN.
-
115811625 FOAM, PREFILTERFOAM, PREFILTER
-
127080138 STRAP PANDUITSTRAP PANDUIT
-
132460732 HARNESS-HEADLIGHT, G2 COMMONHARNESS-HEADLIGHT, G2 COMMON
-
147517441 SCREWSCREW
-
157621334 RIVETRIVET
-
165430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
175410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
187080886 CLIP (ROSEBUD/GRAY)CLIP (ROSEBUD/GRAY)
-
197555904 BURR, RIVETBURR, RIVET
-
205242893 CLIP, PIGTAILCLIP, PIGTAIL
-
217661084 RIVET, 3/16 (.251-.375)RIVET, 3/16 (.251-.375)
-
227080764 CABLE, HOOD, HYB.CABLE, HOOD, HYB.
-
237621402 POP RIVETPOP RIVET
-
247555727 RIVET BURRRIVET BURR
-
255243212 DEFLECTOR-AIR, HOODDEFLECTOR-AIR, HOOD
-
267621301 RIVETRIVET
Все узлы модели:
- AIR BOX
- AUTOMATIC ALTITUDE ADJUSTMENT
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FUEL PUMP
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN #1
- NOSEPAN #2
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING
- STEERING LINKAGE
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ SKI
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION/TRACK
- TOOL KIT
- TUNNEL ASSEMBLY
- • WINDSHIELD/GUAGES/HOOD RETAINER
