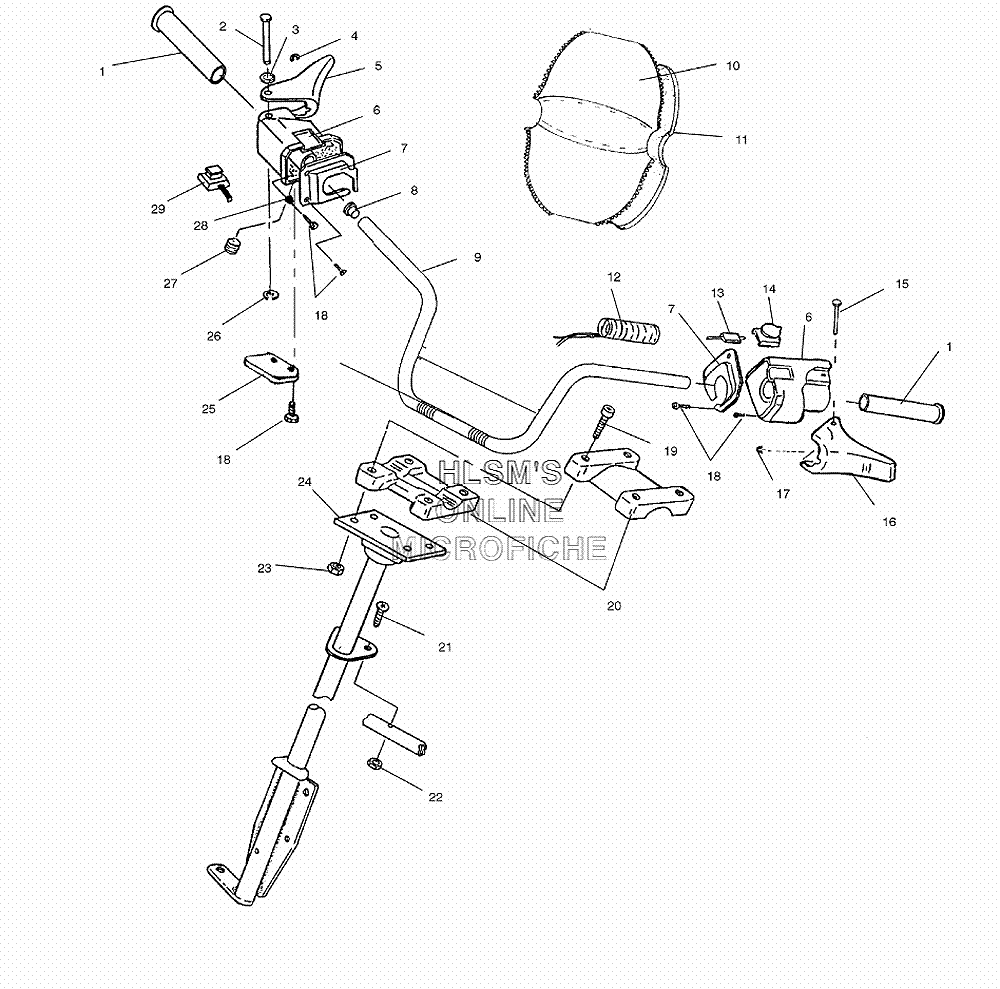

HANDLEBAR ASSEMBLY для Polaris WIDETRAK LX EURO (S02SU4BE) - 2002 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBAR SNOWGRIP, HANDLEBAR SNOW
-
27661624 PIN, HINGEPIN, HINGE
-
37555730 WASHERWASHER
-
47710401 E-RINGE-RING
-
52010171 LEVER ASSY., HTR HI/LO (35.5MM)LEVER ASSY., HTR HI/LO (35.5MM)
-
55432970 THROTLE, LEVER (35.5MM)THROTLE, LEVER (35.5MM)
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75430604 BLOCK, ADAPTERBLOCK, ADAPTER
-
85431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
91823135-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
102690146 COVER ASSY. HANDLEBARCOVER ASSY. HANDLEBAR
-
115811179 FOAM, HANDLEBAR BUCKHORNFOAM, HANDLEBAR BUCKHORN
-
122460311 GRIP, HEATER ASSY., HI/LOWGRIP, HEATER ASSY., HI/LOW
-
134110105 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
144110104 SWITCH, DIMMERSWITCH, DIMMER
-
157661617 RIVETRIVET
-
165430602 LEVER, BRAKELEVER, BRAKE
-
177670044 CLIP, SPEED.CLIP, SPEED.
-
187511848 SCREWSCREW
-
197517238 SCREWSCREW
-
205630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
217517377 SCREWSCREW
-
227542103 NUT, LOCKNUT, LOCK
-
237542122 NUT, LOCKNUT, LOCK
-
241823182-067 POST, STEERING (BLACK)POST, STEERING (BLACK)
-
255432261 HOLDER, WIREHOLDER, WIRE
-
267710503 RETAINING RINGRETAINING RING
-
277512465 SCREWSCREW
-
287555727 RIVET BURRRIVET BURR
-
294110106 SWITCH, AUX.SHUT-OFFSWITCH, AUX.SHUT-OFF
