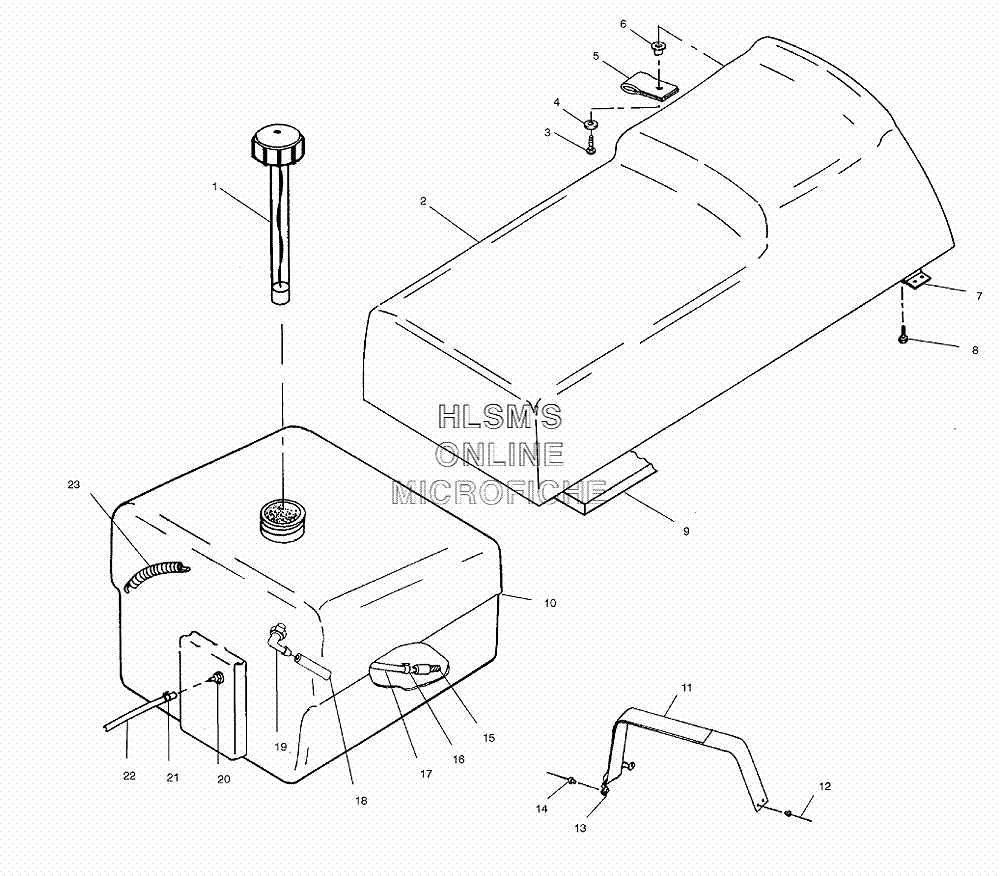

SEAT W/ GAS TANK ASSEMBLY для Polaris WIDETRAK LX EURO (S02SU4BE) - 2002 года выпуска
-
№АртикулНазвание
-
12511246 CAP, GAS W/GAUGECAP, GAS W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
22682780 ASSY., SEAT, WT/2-UP (INCL. 7)ASSY., SEAT, WT/2-UP (INCL. 7)
-
22682781 ASSY., SEAT COVER, WT/2-UPASSY., SEAT COVER, WT/2-UP
-
37511989 SCREWSCREW
-
47558203 WASHERWASHER
-
55810464 PULL, SEATPULL, SEAT
-
67541930 TEENUTTEENUT
-
77020023 HINGE, FLAT (SEE TUNNEL REF. 33)HINGE, FLAT (SEE TUNNEL REF. 33)
-
87511990 SCREWSCREW
-
95811339 PAD, SEAT (BOTTOM)PAD, SEAT (BOTTOM)
-
105431143 TANK, FUEL ASSY.TANK, FUEL ASSY.
-
112690086 SEATBELT ASSY. (W'TRAK) (INCL. 13)SEATBELT ASSY. (W'TRAK) (INCL. 13)
-
127621467 RIVET, BLINDRIVET, BLIND
-
147661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
157052243 FUEL PICKUP W/FILTERFUEL PICKUP W/FILTER
-
167080402 RING, COMPRESSIONRING, COMPRESSION
-
178350019-1525 LINE, FUELLINE, FUEL
-
188450061-600 FUEL LINE 3MM X 7MMFUEL LINE 3MM X 7MM
-
197052095 FITTING (90 DEG 1/8)FITTING (90 DEG 1/8)
-
207052023 FITTING OUTLETFITTING OUTLET
-
217080307 CLAMPCLAMP
-
228350018-600 TUBING, ETHER (160CM SVC)TUBING, ETHER (160CM SVC)
-
237042020 SPRING, TANKSPRING, TANK
