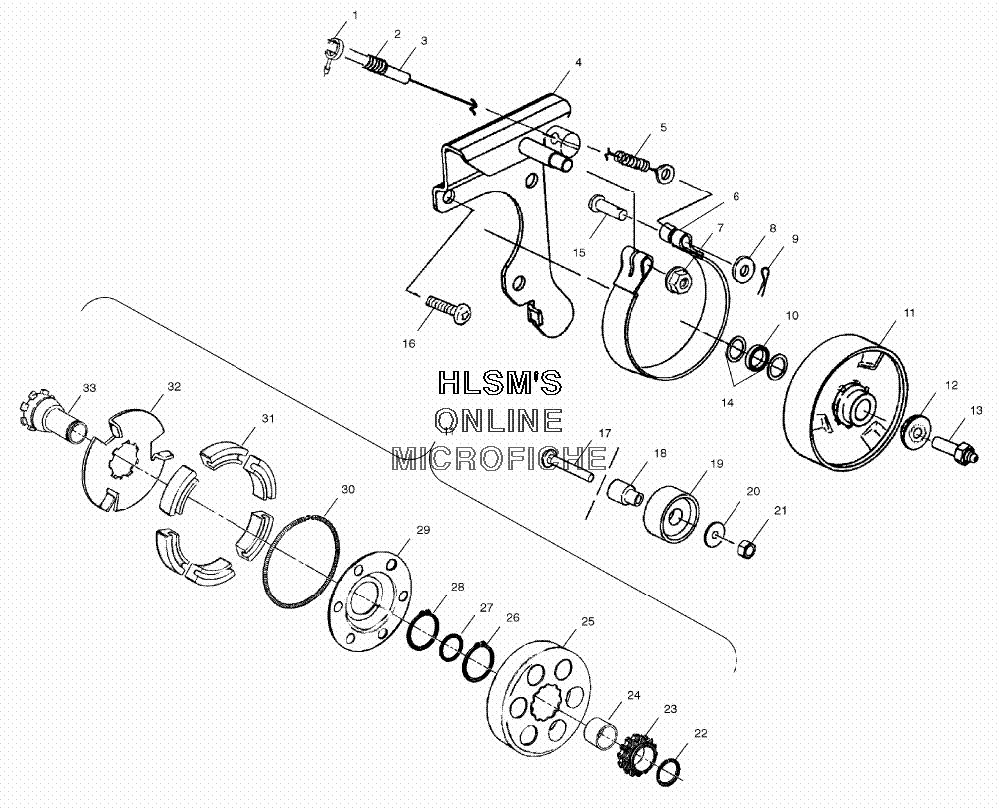

CLUTCH ASSEMBLY для Polaris 120 XC SP (S03WB1AS) - 2003 года выпуска
-
№АртикулНазвание
-
17670102 CLIPCLIP
-
24010051-13 CONDUIT, CONVOLUTED (13CM)CONDUIT, CONVOLUTED (13CM)
-
37081004 CABLE, BRAKE, W/ADAPTERCABLE, BRAKE, W/ADAPTER
-
41013547 WELD, BRAKE MOUNTWELD, BRAKE MOUNT
-
57041853 SPRING, BRAKE RELEASESPRING, BRAKE RELEASE
-
65245508 BAND, BRAKEBAND, BRAKE
-
77542321 NUT FLANGENUT FLANGE
-
87555923 WASHERWASHER
-
97661407 COTTER PINCOTTER PIN
-
105132933 SPACER, CLUTCH (OUTER) (.33)SPACER, CLUTCH (OUTER) (.33)
-
111321966 CLUTCH, DRIVE #40 (INCL. 22, 33)CLUTCH, DRIVE #40 (INCL. 22, 33)
-
125132462 SPACER, CLUTCH, ENDSPACER, CLUTCH, END
-
137517780 BOLT, ZERK (5/16X.90)BOLT, ZERK (5/16X.90)
-
147556138 WASHER, FIBERWASHER, FIBER
-
157661125 PIN, CLEVIS (3/8X1 1/4)PIN, CLEVIS (3/8X1 1/4)
-
167517810 SCREWSCREW
-
177515394 SCREWSCREW
-
185132601 BUSHING, TENSIONERBUSHING, TENSIONER
-
195433672 PULLEY, IDLER TENSIONERPULLEY, IDLER TENSIONER
-
207555734 WASHER, FLATWASHER, FLAT
-
217542324 NUT, NYLOKNUT, NYLOK
-
227710519 RING, RETAININGRING, RETAINING
-
231322042 CLUTCH, DRIVE #40CLUTCH, DRIVE #40
-
243514382 BEARINGBEARING
-
251322043 DRUMDRUM
-
267710518 RING, RETAININGRING, RETAINING
-
277556215 WASHERWASHER
-
287710520 RING, RETAININGRING, RETAINING
-
291322044 PLATE, DUST COVERPLATE, DUST COVER
-
307042118 SPRING, GARTER (RED)SPRING, GARTER (RED)
-
311322045 SHOESHOE
-
321322046 PLATEPLATE
-
331322047 HUBHUB
