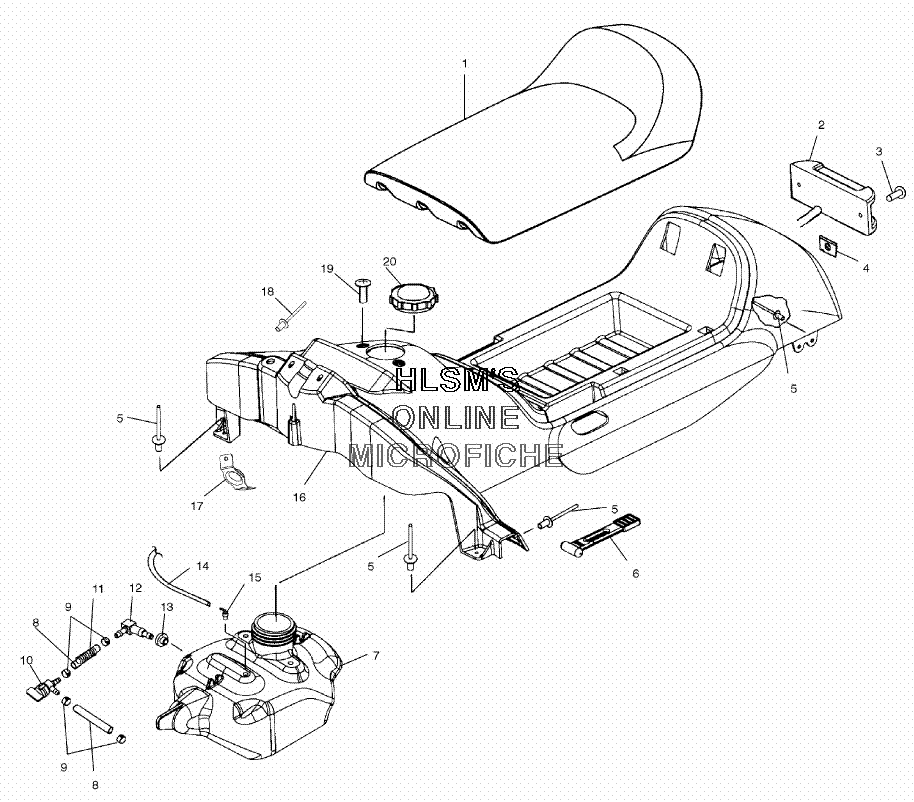

SEAT W/ GAS TANK ASSEMBLY для Polaris 120 XC SP (S03WB1AS) - 2003 года выпуска
-
№АртикулНазвание
-
12682533 COVER, SEATCOVER, SEAT
-
12682534 SEAT CUSHION ASSYSEAT CUSHION ASSY
-
22872427 TAILLIGHT, W/ HARNESSTAILLIGHT, W/ HARNESS
-
37512091 SCREWSCREW
-
47670094 NUTNUT
-
57621472 RIVETRIVET
-
65433150 STRAPSTRAP
-
72520171 TANK, GAS ASSY [INCL. 12, 13]TANK, GAS ASSY [INCL. 12, 13]
-
88350018-600 TUBING, ETHER ERETHANE (160CM)TUBING, ETHER ERETHANE (160CM)
-
97080307 CLAMP, HOSECLAMP, HOSE
-
107052249 VALVE, FUEL, PLASTIC (90Ш) (1/4HOSE)VALVE, FUEL, PLASTIC (90Ш) (1/4HOSE)
-
114010051-13 CONDUIT, CONVOLUTED (13CM)CONDUIT, CONVOLUTED (13CM)
-
127052289 FITTING, DEXTER W/FILTER (90Ш)FITTING, DEXTER W/FILTER (90Ш)
-
137052028 GROMMET, TANK FITTINGGROMMET, TANK FITTING
-
148450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
157052095 FITTING (90 DEG, 1/8)FITTING (90 DEG, 1/8)
-
162632154-293 CONSOLE, ASSY SEAT/TANK COVER (RED)CONSOLE, ASSY SEAT/TANK COVER (RED)
-
175243049 GUIDE, RECOILGUIDE, RECOIL
-
187621330 RIVET, POPRIVET, POP
-
197515148 SCREWSCREW
-
205433687 CAP, GAS TANKCAP, GAS TANK
Все узлы модели:
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CONSOLE W/WIRE HARNESS
- CRANKCASE ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- INTAKE AND EXHAUST
- NOSEPAN ASSEMBLY
- PISTON AND CRANKSHAFT
- • SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- SPEED CONTROL - GOVERNOR
- STARTER - RECOIL W/ BLOWER HOUSING
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - REAR
- TOOL KIT
- TUNNEL ASSEMBLY
