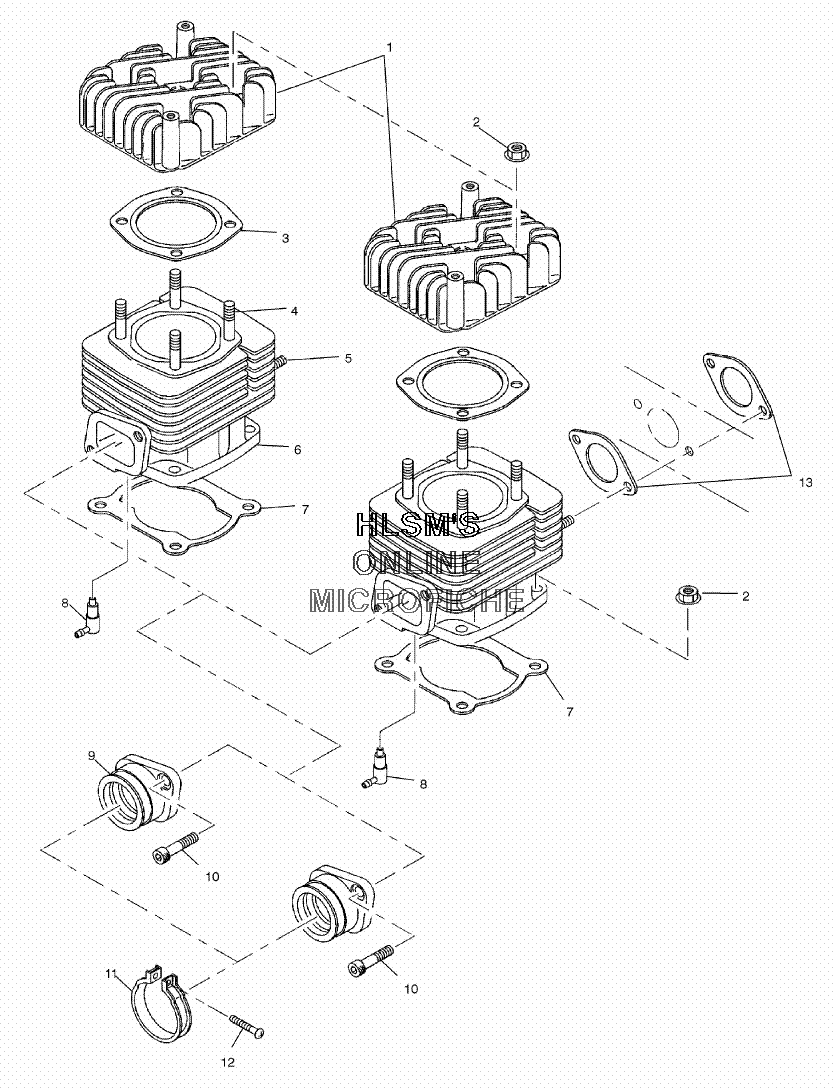

CYLINDER ASSEMBLY для Polaris 340 EDGE CLASSIC (S03ND3AS) - 2003 года выпуска
-
№АртикулНазвание
-
13083573 HEAD, CYLINDERHEAD, CYLINDER
-
23082910 NUT, FLANGENUT, FLANGE
-
33085844 GASKET, HEAD ASSYGASKET, HEAD ASSY
-
43080283 STUDSTUD
-
53085326 STUDSTUD
-
63083570 CYLINDER, ASSY (INCL. 4, 5)CYLINDER, ASSY (INCL. 4, 5)
-
73085843 GASKET, CYLINDERGASKET, CYLINDER
-
83086785 VALVE, CHECK ASSYVALVE, CHECK ASSY
-
93083576 ADAPTER, ASSYADAPTER, ASSY
-
103081330 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
113082257 BAND, ADAPTER ASSY (INCL. 12)BAND, ADAPTER ASSY (INCL. 12)
-
123081497 SCREW AND WASHER, ASSYSCREW AND WASHER, ASSY
-
133085845 GASKET, EXHAUST ASSYGASKET, EXHAUST ASSY
