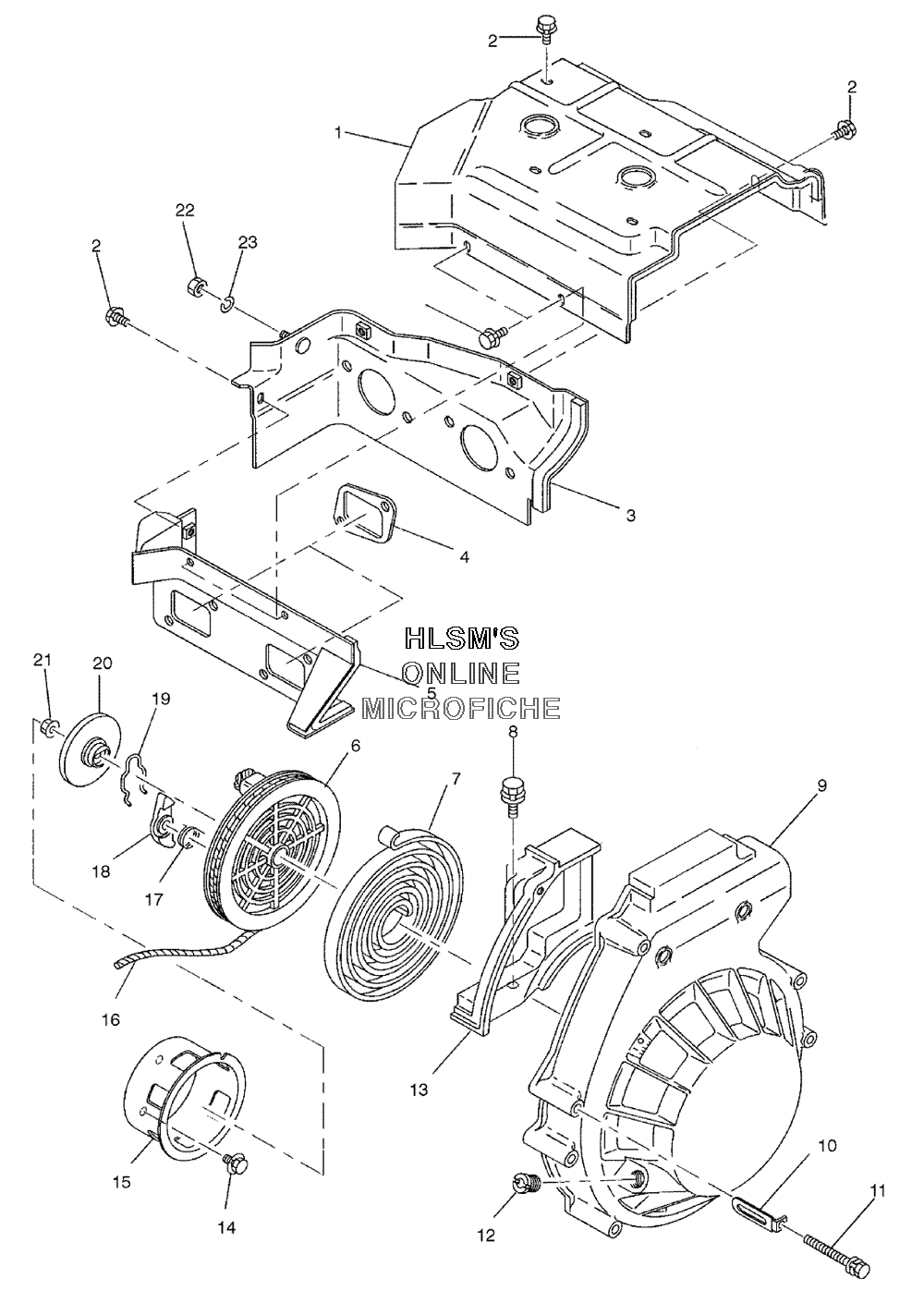

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris 340 EDGE CLASSIC (S03ND3AS) - 2003 года выпуска`
-
№АртикулНазвание
-
13084420 BAFFLE #1, CYLINDER ASSYBAFFLE #1, CYLINDER ASSY
-
23083715 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
33084421 BAFFLE #2, CYLINDER ASSYBAFFLE #2, CYLINDER ASSY
-
43085846 GASKET, INTAKEGASKET, INTAKE
-
53085847 CYLINDER, BAFFLE 3 ASSY (INCL. 4)CYLINDER, BAFFLE 3 ASSY (INCL. 4)
-
63083377 REEL, ASSYREEL, ASSY
-
73083376 SPRING, SPIRALSPRING, SPIRAL
-
83081663 BOLT AND WASHER, ASSYBOLT AND WASHER, ASSY
-
93083588 RECOIL STARTER (INCL. 7, 21)RECOIL STARTER (INCL. 7, 21)
-
93083589 CASE, STARTER ASSYCASE, STARTER ASSY
-
103083590 CLAMPCLAMP
-
113083729 BOLT AND WASHER, ASSYBOLT AND WASHER, ASSY
-
123083107 GUIDE, ROPEGUIDE, ROPE
-
133083591 HOUSING, BLOWER #2HOUSING, BLOWER #2
-
143081665 BOLT AND WASHER, ASSYBOLT AND WASHER, ASSY
-
153083108 PULLEY, STARTINGPULLEY, STARTING
-
162870621 ROPE, NYLON STARTER (100 FT)ROPE, NYLON STARTER (100 FT)
-
173083463 SPRING, RETURNSPRING, RETURN
-
183083378 RATCHETRATCHET
-
193083379 SPRING, FRICTIONSPRING, FRICTION
-
203083464 PLATE, FRICTIONPLATE, FRICTION
-
213083381 NUT, FLANGENUT, FLANGE
-
223084375 NUTNUT
-
233080077 WASHER SPRINGWASHER SPRING
