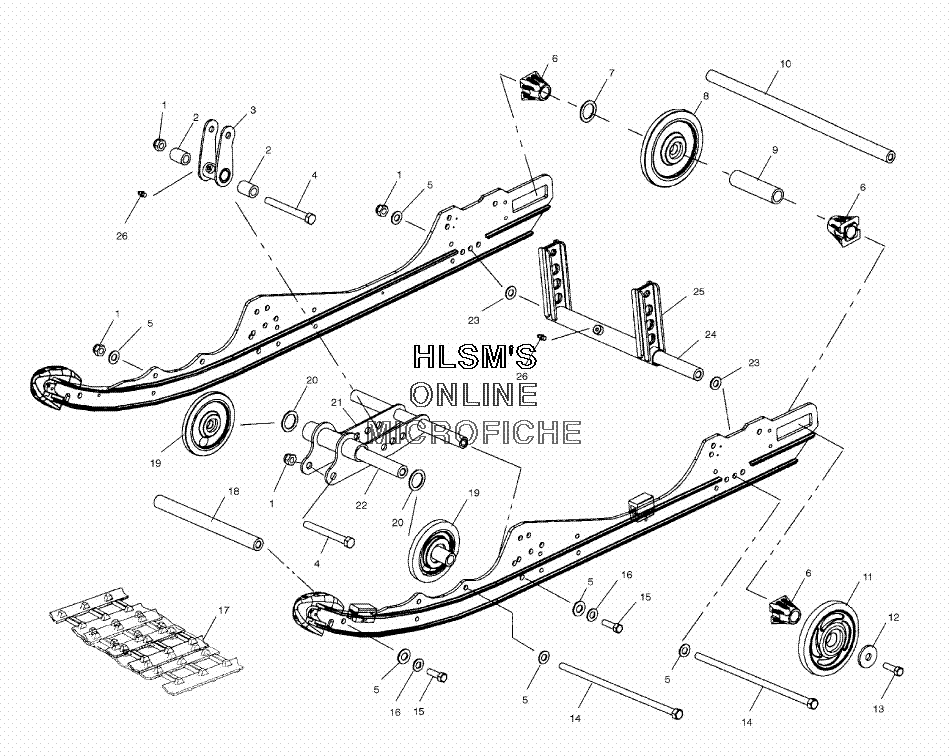

SUSPENSION - REAR TRACK для Polaris 500 EDGE (S03NB4BS) - 2003 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25133233 BUSHINGBUSHING
-
31541477-067 SHOCK PIVOT ARM (BLACK)SHOCK PIVOT ARM (BLACK)
-
47515417 SCREWSCREW
-
57555806 WASHER, FLATWASHER, FLAT
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY, PLAIN (6.38 O.D.)WHEEL ASSY, PLAIN (6.38 O.D.)
-
95333285 SPACER, IDLER (LONG)SPACER, IDLER (LONG)
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111590303-293 WHEEL, IDLER HP (RED)WHEEL, IDLER HP (RED)
-
117710444 RING, RETAININGRING, RETAINING
-
113514384 BEARINGBEARING
-
127556130 WASHERWASHER
-
137517731 BOLTBOLT
-
147517921 SCREWSCREW
-
157517247 SCREWSCREW
-
167552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
175411168 TRACK,121"X.82 (LIGHTNING)TRACK,121"X.82 (LIGHTNING)
-
175222839 CLIP, TRACK (CAMOPLAST)CLIP, TRACK (CAMOPLAST)
-
175222840 CLIP, GUIDE (CAMOPLAST)CLIP, GUIDE (CAMOPLAST)
-
185020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
191541485 WHEEL, W/ HOLE (5.35, .984 ID)WHEEL, W/ HOLE (5.35, .984 ID)
-
207556301 BUSHINGBUSHING
-
211541711-067 WELD, SHOCK MOUNT (BLACK)WELD, SHOCK MOUNT (BLACK)
-
225132490 SHAFTSHAFT
-
237555893 WASHER, FLATWASHER, FLAT
-
245333404 SHAFTSHAFT
-
251541707-067 WELD, PIVOT ARM (BLACK/REAR)WELD, PIVOT ARM (BLACK/REAR)
-
267080424 FITTING, LUBE.FITTING, LUBE.
