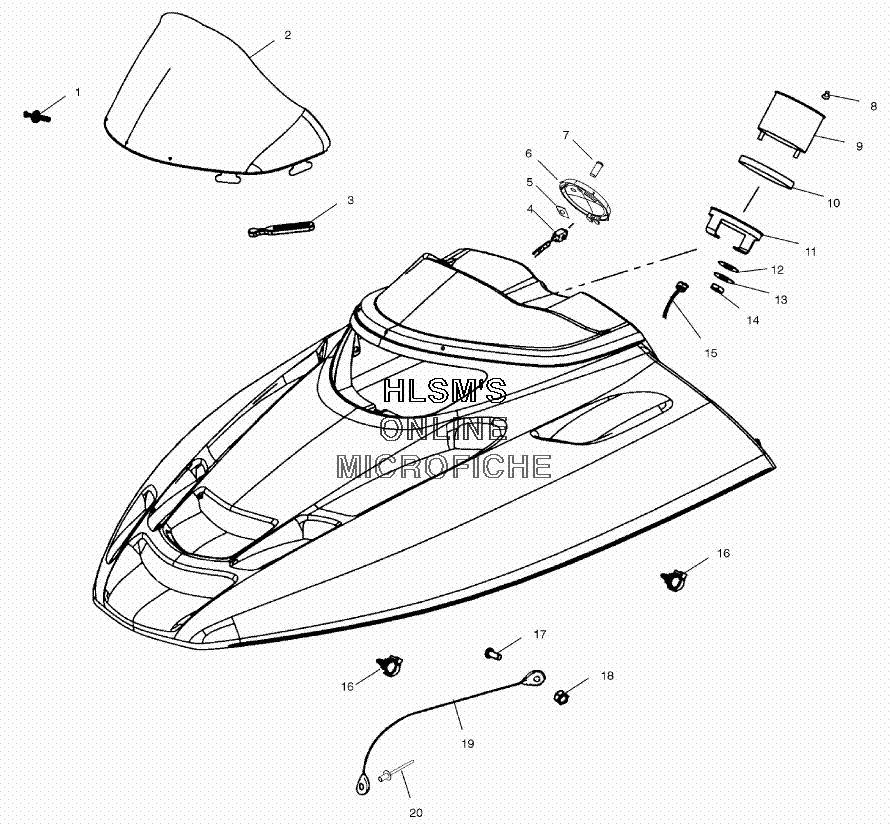

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 500 EDGE (S03NB4BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25433517 WDSHLD, 15" FLR SMOKE EDGEWDSHLD, 15" FLR SMOKE EDGE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
42460876 HARNESS, JUMPER TEMP LIGHTHARNESS, JUMPER TEMP LIGHT
-
57670133 RETAINER, BOLT/LAMP (1/2")RETAINER, BOLT/LAMP (1/2")
-
65434081 PLUG, DASH 5" W/SINGLE 1/2" HOLEPLUG, DASH 5" W/SINGLE 1/2" HOLE
-
74010535 INDICATOR, HIGH TEMP (1/2" DIA)INDICATOR, HIGH TEMP (1/2" DIA)
-
83280186 KNOB, TRIP ODOMETER THD. (LEFT)KNOB, TRIP ODOMETER THD. (LEFT)
-
93280411 SPEEDOMETER, ASSY 5" 120MPH WHITE/BLACK W/O ANSPEEDOMETER, ASSY 5" 120MPH WHITE/BLACK W/O AN
-
94030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
103280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
113280210 BRACKETTACHOMETER/SPEEDOMETER (5")BRACKETTACHOMETER/SPEEDOMETER (5")
-
123280157 WASHER, FLATWASHER, FLAT
-
133280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
143280158 NUTNUT
-
153280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
164010589 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
177512018 SCREWSCREW
-
187541925 NUT, NYLOKNUT, NYLOK
-
197080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
207661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
