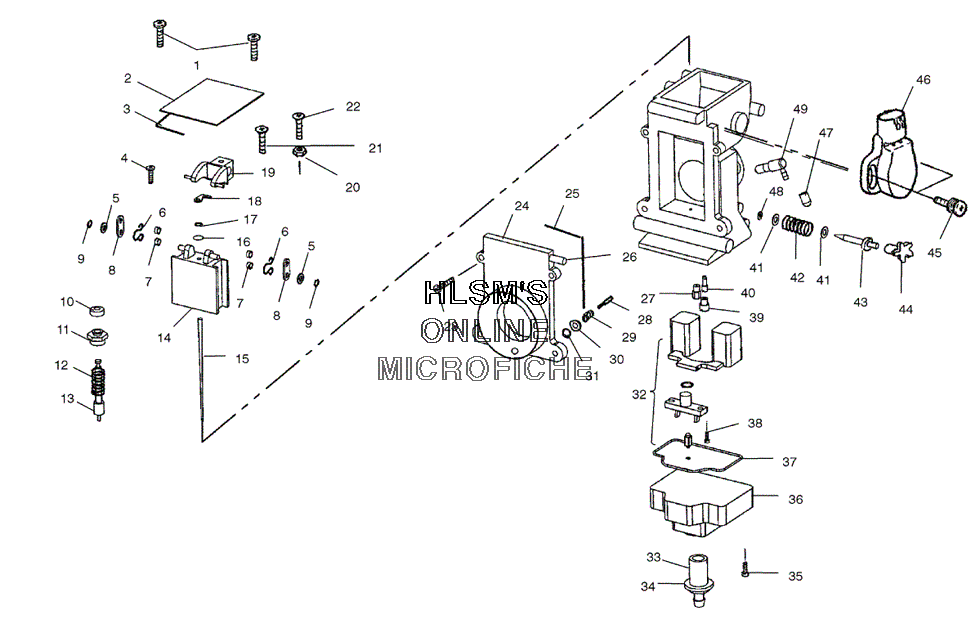

CARBURETOR ASSEMBLY для Polaris 500 XC SP EDGE (S03NP5CSA/B) - 2003 года выпуска
-
№АртикулНазвание
-
13130951 SCREWSCREW
-
23130976 CAP - TOPCAP - TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E - RINGE - RING
-
103130831 CAP, RUBBERCAP, RUBBER
-
113130830 HOLDER, GUIDEHOLDER, GUIDE
-
123130829 SPRINGSPRING
-
133130828 PLUNGER ASSY.PLUNGER ASSY.
-
143130940 VALVE, PISTON 1.5 (1.5)VALVE, PISTON 1.5 (1.5)
-
153131253 NEEDLE - JET J8 - 9DFH06 - 57 (J8 - 9DFH6 - 57)NEEDLE - JET J8 - 9DFH06 - 57 (J8 - 9DFH6 - 57)
-
163130867 PACKINGPACKING
-
173130868 E - RINGE - RING
-
183130843 PLATEPLATE
-
193130855 LEVER ASSY.LEVER ASSY.
-
193130849 LEVER ASSY.LEVER ASSY.
-
203130848 RINGRING
-
213130854 SCREWSCREW
-
223130850 SCREWSCREW
-
233130825 SCREWSCREW
-
243131335 ASSY. - FUNNELASSY. - FUNNEL
-
253131356 O - RING, LONG AIR FUNNELO - RING, LONG AIR FUNNEL
-
263130808 PINPIN
-
273130599 JET, MAIN, #410 (410)JET, MAIN, #410 (410)
-
283131336 SCREW - AIRSCREW - AIR
-
293131371 SPRINGSPRING
-
303131372 WASHERWASHER
-
313130522 O - RINGO - RING
-
323130859 FLOAT ASSY.FLOAT ASSY.
-
333131248 BOLT - DRAINBOLT - DRAIN
-
343130863 O - RINGO - RING
-
353130824 SCREWSCREW
-
363130858 FLOAT, BODYFLOAT, BODY
-
373130861 O - RINGO - RING
-
383130860 SCREWSCREW
-
393130068 JET, PILOT, #45 (45)JET, PILOT, #45 (45)
-
403130769 JET, STARTER, #VM11/22 - 145 (145)JET, STARTER, #VM11/22 - 145 (145)
-
413130837 WASHERWASHER
-
423130836 SPRINGSPRING
-
433130987 ADJUSTERADJUSTER
-
443130986 CAPCAP
-
453131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
463131009 ASSY. - SENSOR (MAG SIDE)ASSY. - SENSOR (MAG SIDE)
-
473130479 CAPCAP
-
483130835 PACKINGPACKING
-
497051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
491253444 ASSY. - CARB TM 38 500ASSY. - CARB TM 38 500
