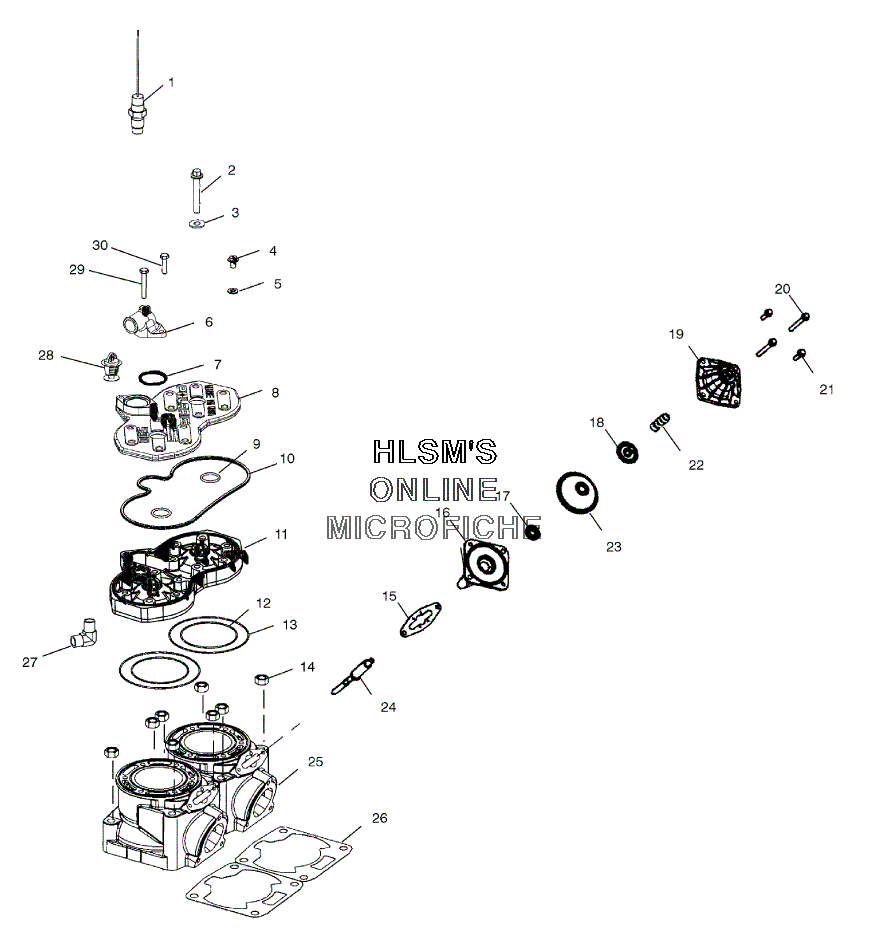

CYLINDER ASSEMBLY для Polaris 500 XC SP EDGE (S03NP5CSA/B) - 2003 года выпуска
-
№АртикулНазвание
-
14010398 SENSOR - THERMISTER, ESX8477ASENSOR - THERMISTER, ESX8477A
-
27517281 SCREWSCREW
-
37556082 WASHERWASHER
-
47517679 SCREWSCREW
-
57555998 WASHER, FLATWASHER, FLAT
-
65630992 COVER - THERMOSTATCOVER - THERMOSTAT
-
75411521 O - RING, LIPSEALO - RING, LIPSEAL
-
85631198-329 COVER - HEAD 70.5 500 BLK E - COATCOVER - HEAD 70.5 500 BLK E - COAT
-
95411411 O - RINGO - RING
-
105411465 SEALSEAL
-
113021321 HEAD - CYL 70.5MM W/BYP 3/8W/OMA (EDGE, EDGE, X)HEAD - CYL 70.5MM W/BYP 3/8W/OMA (EDGE, EDGE, X)
-
125411199 O - RINGO - RING
-
135411359 O - RINGO - RING
-
147547013 NUTNUT
-
155812350 GASKET - BASE TO CYL EXH VALVEGASKET - BASE TO CYL EXH VALVE
-
161202216 ASSY. - BASE EXH VALVE DOMASSY. - BASE EXH VALVE DOM
-
175132950 WASHER - BELLOWS, EXH VALVE, DOMWASHER - BELLOWS, EXH VALVE, DOM
-
185631381 BELLOWS - EXH VALVE DOMBELLOWS - EXH VALVE DOM
-
195434599 ASSY. - HOUSING W/BUSHINGASSY. - HOUSING W/BUSHING
-
207516820 SCREWSCREW
-
217517932 SCREWSCREW
-
227041786-11 SPRING - COMP, PINK/YLWSPRING - COMP, PINK/YLW
-
235412147 BELLOWS - EXH MODIFIEDBELLOWS - EXH MODIFIED
-
245133379 VALVE - GUILLOTINE 500, FORGEDVALVE - GUILLOTINE 500, FORGED
-
253021334 CYLINDER - 70.5CYLINDER - 70.5
-
265811916 GASKET - CYLINDER BASEGASKET - CYLINDER BASE
-
277052221 FITTING (EDGE, EDGE, X)FITTING (EDGE, EDGE, X)
-
287052267 THERMOSTAT - 50C TBYS SS STEM (EDGE, EDGE, X)THERMOSTAT - 50C TBYS SS STEM (EDGE, EDGE, X)
-
297517950 SCREWSCREW
-
307516822 SCREWSCREW
