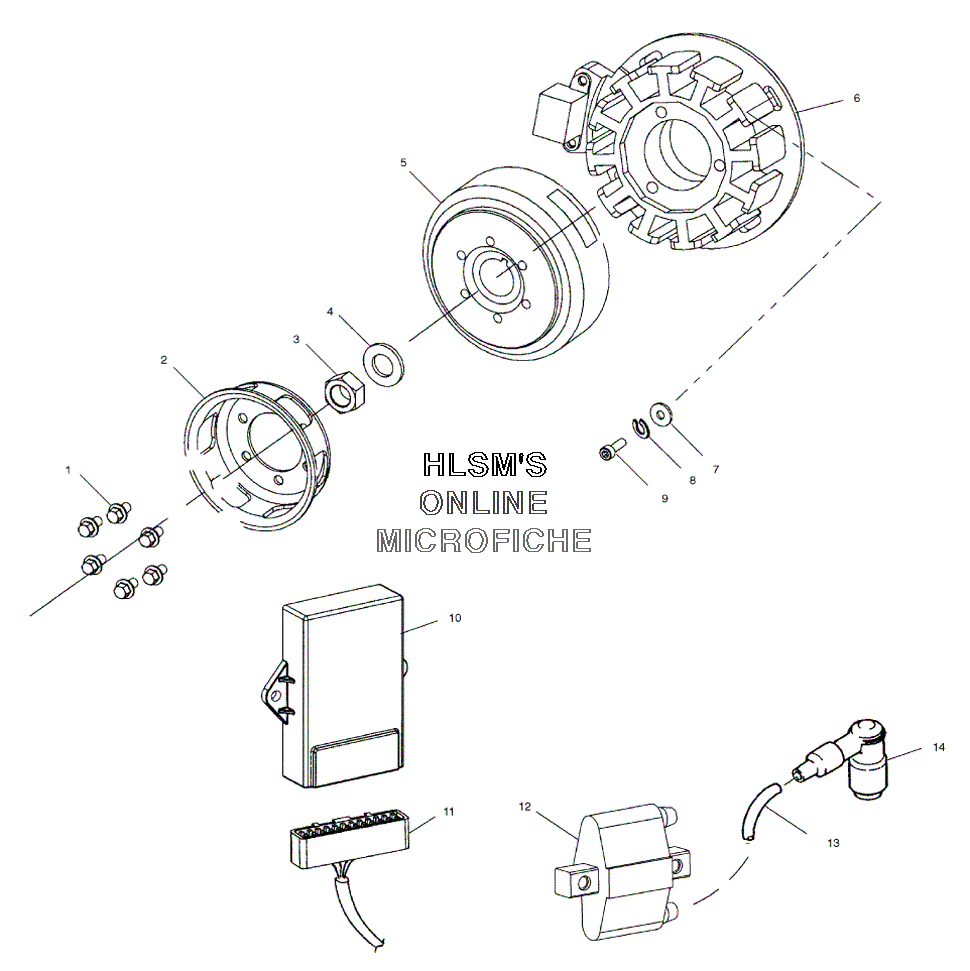

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 600 XC EDGE F/O (S03NP6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17517278 SCREWSCREW
-
23040161 PULLEY, STARTINGPULLEY, STARTING
-
37546909 NUTNUT
-
47555907 WASHERWASHER
-
54010677 FLYWHEEL - IGN 18ШFLYWHEEL - IGN 18Ш
-
64060222 STATORSTATOR
-
77555970 WASHER, FLATWASHER, FLAT
-
87555969 WASHER, LOCKWASHER, LOCK
-
97517314 SCREWSCREW
-
102202322 KIT - CDI S60 - 44 - 4010715 [INCL. NYOGEL AND DECAL)KIT - CDI S60 - 44 - 4010715 [INCL. NYOGEL AND DECAL)
-
114010549 HARNESS - IGN SNO TWN KOK NEWHARNESS - IGN SNO TWN KOK NEW
-
124060229 COIL, IGNITION, KOKCOIL, IGNITION, KOK
-
134010124-305 WIRE, IGN, BULK, 305CM.WIRE, IGN, BULK, 305CM.
-
144020159 CAP, SPARK PLUGCAP, SPARK PLUG
