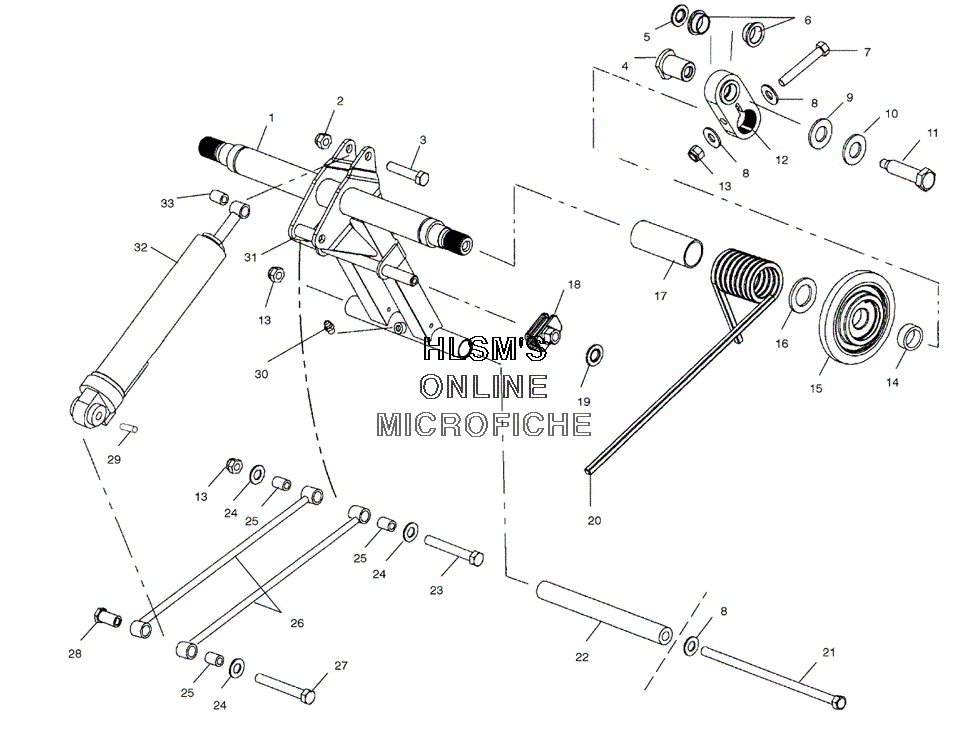

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 600 XC EDGE F/O (S03NP6ES) - 2003 года выпуска
-
№АртикулНазвание
-
11541561-067 WELD - ARM, TORQUE, REAR (BLACK)WELD - ARM, TORQUE, REAR (BLACK)
-
11541561-216 WELD - RTA, EDGE, COMP, (YELLOW)WELD - RTA, EDGE, COMP, (YELLOW)
-
27542411 NUT, FLEXLOCNUT, FLEXLOC
-
37512410 BOLTBOLT
-
45333758 SHAFT - ARMSHAFT - ARM
-
57555945 WASHER, THRUSTWASHER, THRUST
-
63514331 BUSHINGBUSHING
-
77515415 SCREWSCREW
-
87555806 WASHER, FLATWASHER, FLAT
-
97555893 WASHER, FLATWASHER, FLAT
-
107552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
117517435 SCREWSCREW
-
121541461 ARM, ASSY., RTA [INCL. 6)ARM, ASSY., RTA [INCL. 6)
-
137542439 NUT, NYLOKNUT, NYLOK
-
145132388 SPACER, WHEELSPACER, WHEEL
-
151590343 ASSY. - CARRIER WHEEL, 6.38ASSY. - CARRIER WHEEL, 6.38
-
167555787 WASHERWASHER
-
175431923 SLEEVE, TORSION SPRINGSLEEVE, TORSION SPRING
-
185432983 ROLLER, SPRING, ADJ, SQUAREROLLER, SPRING, ADJ, SQUARE
-
197080394 CLIP, PUSH ONCLIP, PUSH ON
-
207041942-067 SPRING - TORS.375SQ/77Ш (LEFT) (BLACK) [STD)SPRING - TORS.375SQ/77Ш (LEFT) (BLACK) [STD)
-
207041943-067 SPRING - TORS.375SQ/77Ш (RIGHT) (BLACK) [STD)SPRING - TORS.375SQ/77Ш (RIGHT) (BLACK) [STD)
-
207041629-067 SPRING, TORSION, .359/77 (LEFT) (BLACK) [OPT)SPRING, TORSION, .359/77 (LEFT) (BLACK) [OPT)
-
207041630-067 SPRING, TORSION, .359/77 (RIGHT) (BLACK) [OPT)SPRING, TORSION, .359/77 (RIGHT) (BLACK) [OPT)
-
207041940-067 SPRING - TORS, .405SQ/77Ш (BLACK) (LEFT) [OPT)SPRING - TORS, .405SQ/77Ш (BLACK) (LEFT) [OPT)
-
207041941-067 SPRING - TORS, .405SQ/77Ш (BLACK) (RIGHT) [OPT)SPRING - TORS, .405SQ/77Ш (BLACK) (RIGHT) [OPT)
-
217517232 SCREWSCREW
-
225333873 SHAFTSHAFT
-
237515514 BOLTBOLT
-
247555795 WASHER, WAVE SPRINGWASHER, WAVE SPRING
-
255132391 BUSHINGBUSHING
-
261541479-067 ROD, SHOCK, 12.850 (BLACK)ROD, SHOCK, 12.850 (BLACK)
-
277517851 SCREWSCREW
-
285132390 BUSHING, NUTBUSHING, NUT
-
295333907 SLEEVESLEEVE
-
307080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
315333904 SPACERSPACER
-
327042129 SHOCK - R/T, ALUM, PPSSHOCK - R/T, ALUM, PPS
-
327042093 SHOCK - REAR TRACK, REMOTERESSHOCK - REAR TRACK, REMOTERES
-
335010422 BUSHINGBUSHING
