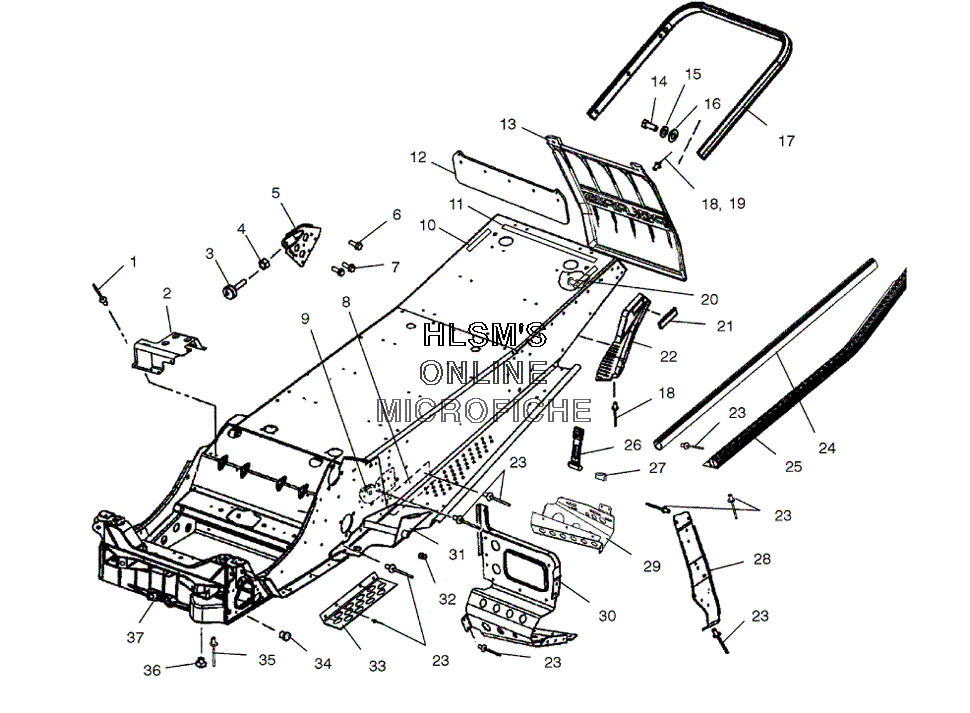

FRAME - CHASSIS для Polaris 600 XC SP EDGE M-10 F/O (S03NF6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17621432 RIVETRIVET
-
25246330 BRKT - OIL TANK/HOSE SUPPORTBRKT - OIL TANK/HOSE SUPPORT
-
33021104 STOP, TORQUE COURSE 3/8 - 16STOP, TORQUE COURSE 3/8 - 16
-
47542404 NUTNUT
-
51013379 WELD - TORQUE STOP, S44WELD - TORQUE STOP, S44
-
67517632 SCREWSCREW
-
77517854 SCREWSCREW
-
85244997-067 BRACE - LOWER, TUNNEL, (BLACK), (LEFT) (M - 10)BRACE - LOWER, TUNNEL, (BLACK), (LEFT) (M - 10)
-
85244998-067 BRACE - LOWER, TUNNEL, (BLACK), (RIGHT) (M - 10)BRACE - LOWER, TUNNEL, (BLACK), (RIGHT) (M - 10)
-
95244999-067 PAD - SUSP, FRONT, (BLACK), (LEFT) (M - 10)PAD - SUSP, FRONT, (BLACK), (LEFT) (M - 10)
-
95245001-067 PAD - SUSP, FRONT, (BLACK), (RIGHT) (M - 10)PAD - SUSP, FRONT, (BLACK), (RIGHT) (M - 10)
-
105812290 GASKET - SEAT BASEGASKET - SEAT BASE
-
115812360 GASKET - SEAT BASE 1/4"GASKET - SEAT BASE 1/4"
-
125812430 BACKER - SNOW FLAP (IF BUILT AFTER 4/29/02)BACKER - SNOW FLAP (IF BUILT AFTER 4/29/02)
-
135433521-1038 FLAP, SNOW, EDGE, (BLACK) W/CHROME (IF BUILT BEFORE 4/29/02)FLAP, SNOW, EDGE, (BLACK) W/CHROME (IF BUILT BEFORE 4/29/02)
-
135433979 FLAP - SNOW, EDGE X (IF BUILT BEFORE 4/29/02)FLAP - SNOW, EDGE X (IF BUILT BEFORE 4/29/02)
-
135434847-1038 FLAP - SNO, EDGE, LONG, (BLACK/WHT (IF BUILT AFTER 4/29/02)FLAP - SNO, EDGE, LONG, (BLACK/WHT (IF BUILT AFTER 4/29/02)
-
135434860 FLAP - SNOW EDGE LONG X (IF BUILT AFTER 4/29/02)FLAP - SNOW EDGE LONG X (IF BUILT AFTER 4/29/02)
-
147512240 BOLTBOLT
-
157552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
167558301 WASHER, FLATWASHER, FLAT
-
172632165-309 ASSY., BUMPER, REARASSY., BUMPER, REAR
-
172632165-216 ASSY. - REAR BUMPER, SCR YELLOWASSY. - REAR BUMPER, SCR YELLOW
-
187621472 RIVET (QTY. 8 IF BUILT AFTER 4/29/02)RIVET (QTY. 8 IF BUILT AFTER 4/29/02)
-
197621418 RIVET, POP (IF BUILT AFTER 4/29/02)RIVET, POP (IF BUILT AFTER 4/29/02)
-
207517441 SCREWSCREW
-
212670133 REFLECTOR ASSY., (RED)REFLECTOR ASSY., (RED)
-
222632443-070 ASSY. - SNOWSKIRT/REFLECTOR, (BLACK), (LEFT)ASSY. - SNOWSKIRT/REFLECTOR, (BLACK), (LEFT)
-
222632444-070 ASSY. - SNOWSKIRT/REFLECTOR, (BLACK), (RIGHT)ASSY. - SNOWSKIRT/REFLECTOR, (BLACK), (RIGHT)
-
237661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
245245118 BRACE - TUNNEL ROLL (STD. MODELS)BRACE - TUNNEL ROLL (STD. MODELS)
-
255132903 GRIP - TUNNEL, COMMON, (LEFT) (X MODELS)GRIP - TUNNEL, COMMON, (LEFT) (X MODELS)
-
255132904 GRIP - TUNNEL, COMMON, (RIGHT) (X MODELS)GRIP - TUNNEL, COMMON, (RIGHT) (X MODELS)
-
265433150 STRAPSTRAP
-
275812352 PAD - CLUTCH GUARDPAD - CLUTCH GUARD
-
285246310 SUPPORT - FOOTREST, (LEFT)SUPPORT - FOOTREST, (LEFT)
-
285246311 SUPPORT - FOOTREST, (RIGHT)SUPPORT - FOOTREST, (RIGHT)
-
295245457 MOUNT - CONSOLE, TOE CLIP, (LEFT)MOUNT - CONSOLE, TOE CLIP, (LEFT)
-
295245458 MOUNT - CONSOLE, TOE CLIP, (RIGHT)MOUNT - CONSOLE, TOE CLIP, (RIGHT)
-
305245288 FOOTREST - (LEFT), .080FOOTREST - (LEFT), .080
-
305242740 FOOTREST - (RIGHT)FOOTREST - (RIGHT)
-
312202059 KIT - MOUNT, TRAILING ARM, (LEFT)KIT - MOUNT, TRAILING ARM, (LEFT)
-
312202060 KIT - MOUNT, TRAILING ARM, (RIGHT)KIT - MOUNT, TRAILING ARM, (RIGHT)
-
325412276 GROMMET - M10 ACE WIREGROMMET - M10 ACE WIRE
-
327081085 PLUG - BARBED, .625 (M - 10)PLUG - BARBED, .625 (M - 10)
-
335245836 GUARD - BELT, EDGE, W/BENDGUARD - BELT, EDGE, W/BEND
-
347080416 PLUG, HOLEPLUG, HOLE
-
357661639 RIVETRIVET
-
367081076 PLUG - HOLE, 1.25PLUG - HOLE, 1.25
-
375132292 BULKHEAD - FRONT, MACHBULKHEAD - FRONT, MACH
-
-1013778-309 ASSY. - CHASSIS, SVC, EDGE, NATURALASSY. - CHASSIS, SVC, EDGE, NATURAL
-
-1013795-1124 ASSY. - CHASSIS, EDGE X, SVC, NAT/YELLOWASSY. - CHASSIS, EDGE X, SVC, NAT/YELLOW
-
-1014097-309 ASSY. - CHASSIS, EDGE M10, RC, NAT (M - 10)ASSY. - CHASSIS, EDGE M10, RC, NAT (M - 10)
-
-1014098-1124 ASSY. - CHASSIS, EDGE M10X, RC, NAT/YELLOWASSY. - CHASSIS, EDGE M10X, RC, NAT/YELLOW
