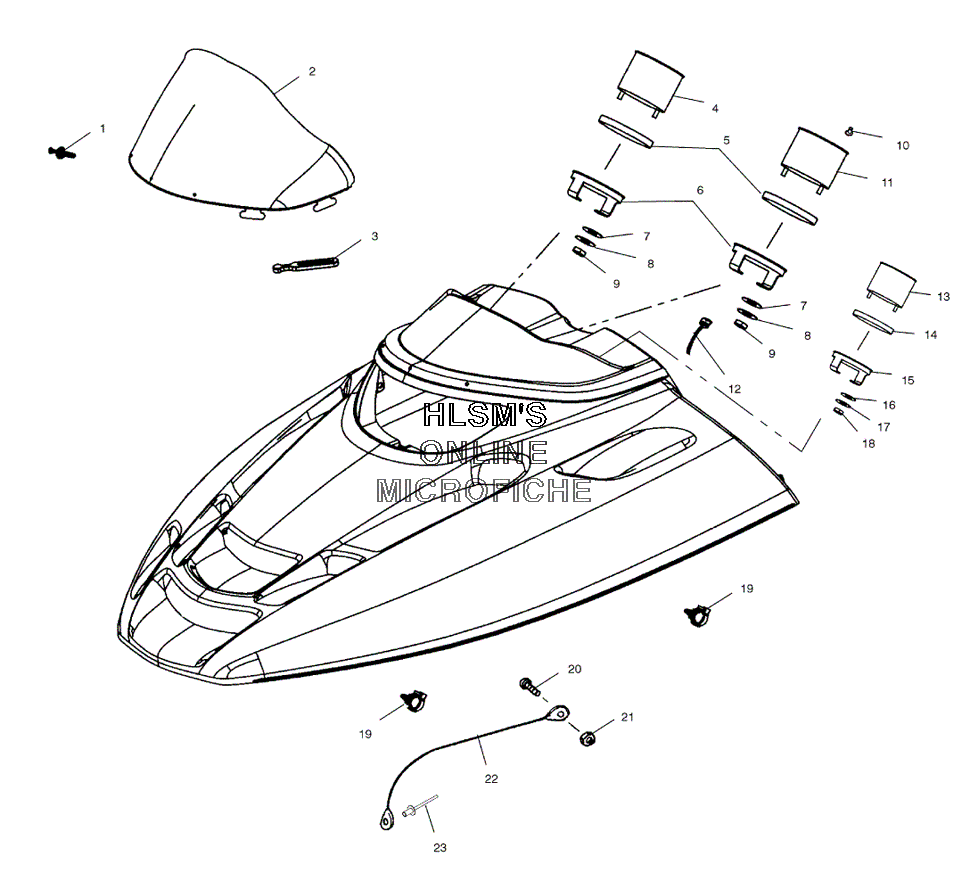

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris 600 XC SP EDGE M-10 F/O (S03NF6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI - LOCKRIVET, PLASTI - LOCK
-
25433517 WINDSHIELD - 15" EDGE - SMOKEWINDSHIELD - 15" EDGE - SMOKE
-
25434194 WINDSHIELD - 13"FLR, SMOKEWINDSHIELD - 13"FLR, SMOKE
-
35410970 RETAINER, WINDSHIELD,RETAINER, WINDSHIELD,
-
43280409 TACH, 6P, WHT/BK W/FUEL LTTACH, 6P, WHT/BK W/FUEL LT
-
44030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
53280209 CUSHION, TACH/SPEEDO, RUBBERCUSHION, TACH/SPEEDO, RUBBER
-
63280210 BRKT, TACH/SPEEDO, 5"BRKT, TACH/SPEEDO, 5"
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER, (LEFT) THD.KNOB, TRIP ODOMETER, (LEFT) THD.
-
113280411 ASSY. - SPD, 5", 120MPH, WH/BK, W/O ANASSY. - SPD, 5", 120MPH, WH/BK, W/O AN
-
114030015 BULB TAILLIGHT/TACH/SPEEDOBULB TAILLIGHT/TACH/SPEEDO
-
123280385 CABLE - SPEEDOMETERCABLE - SPEEDOMETER
-
133280404 ASSY., GAUGE, RIDE CONTROL (INCL. 14, 15)(M - 10 ACE)ASSY., GAUGE, RIDE CONTROL (INCL. 14, 15)(M - 10 ACE)
-
143280323 CUSHION, RUBBER, 2" (M - 10 ACE)CUSHION, RUBBER, 2" (M - 10 ACE)
-
153280322 BACK - CLAMP, GAUGE, 2" (M - 10 ACE)BACK - CLAMP, GAUGE, 2" (M - 10 ACE)
-
163280324 WASHER, FLAT (M - 10 ACE)WASHER, FLAT (M - 10 ACE)
-
177555868 WASHER, LOCK, (S.S.) (M - 10 ACE)WASHER, LOCK, (S.S.) (M - 10 ACE)
-
183280321 HEX NUT - NT0001 (M - 10 ACE)HEX NUT - NT0001 (M - 10 ACE)
-
194010589 CLIP - PLASTIC, DART NYLONCLIP - PLASTIC, DART NYLON
-
207512018 SCREWSCREW
-
217541925 NUT, NYLOKNUT, NYLOK
-
227080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
237661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
