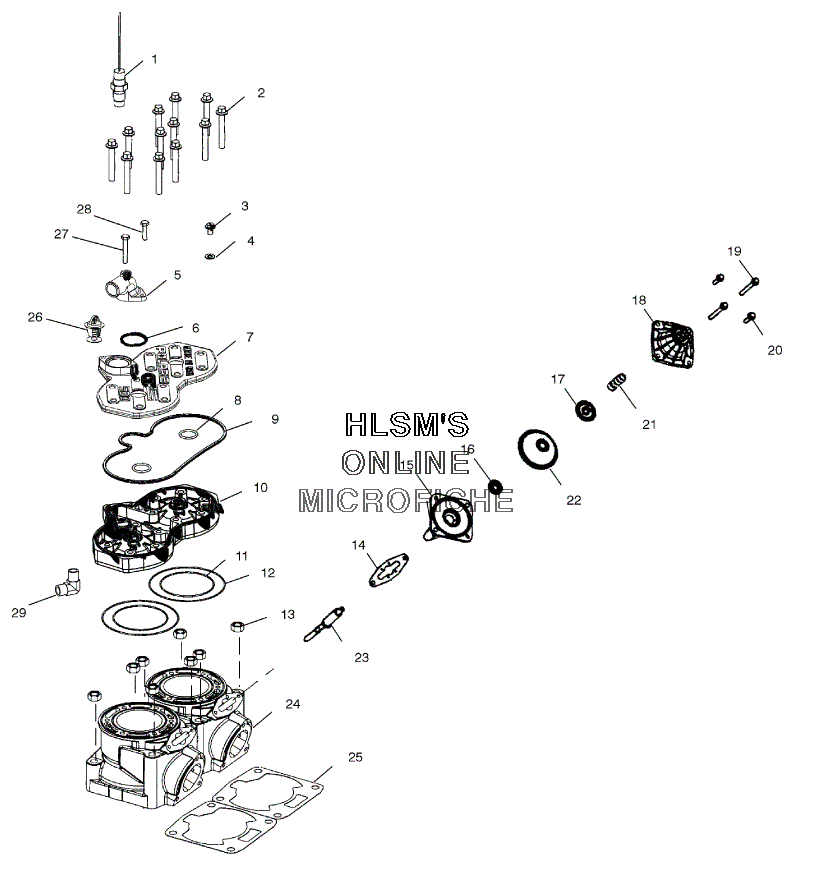

CYLINDER ASSEMBLY для Polaris 600 XC SP EDGE X F/O (S03NA6ES) - 2003 года выпуска

№

Артикул

Название
1

4010398 SENSOR - THERMISTER

SENSOR - THERMISTER

5 410 ₽
2

7517533 SCREW

SCREW

1 250 ₽
3

7517679 SCREW

SCREW

2 500 ₽
4

7555998 WASHER, FLAT

WASHER, FLAT

110 ₽
5

5630992 COVER - THERMOSTA

COVER - THERMOSTA

5 620 ₽
6

5411521 O - RING, LIPSEAL

O - RING, LIPSEAL

2 500 ₽
7

5631199-366 COVER - HEAD 77.25 RED PWD

COVER - HEAD 77.25 RED PWD

0 ₽
8

5411411 O - RING

O - RING

150 ₽
9

5411465 SEAL

SEAL

4 160 ₽
10

3021320 HEAD - CYL 77.25 TWN SN 3/8W/OMA (EDGE, EDGE, X)

HEAD - CYL 77.25 TWN SN 3/8W/OMA (EDGE, EDGE, X)

45 760 ₽
11

5410932 O - RING

O - RING

2 910 ₽
12

5411359 O - RING

O - RING

1 870 ₽
13

7547013 NUT

NUT

460 ₽
14

5812350 GASKET - BASE TO CYL EXH VALVE

GASKET - BASE TO CYL EXH VALVE

960 ₽
15

1202216 ASSY. - BASE EXH VALVE DOM **

ASSY. - BASE EXH VALVE DOM **

0 ₽
16

5132950 WASHER - BELLOWS, EXH VALVE, DOM

WASHER - BELLOWS, EXH VALVE, DOM

1 250 ₽
17

5631152 CAP/NUT, BELLOWS - EXH VALVE DOM

CAP/NUT, BELLOWS - EXH VALVE DOM

5 620 ₽
18

5434599 ASSY. - HOUSING W/BUSHING

ASSY. - HOUSING W/BUSHING

3 330 ₽
19

7516820 SCREW

SCREW

830 ₽
20

7517932 SCR

SCR

630 ₽
21

7041704-03 SPRING, PINK

SPRING, PINK

3 950 ₽
22

5412147 BELLOWS - EXH MODIFIED

BELLOWS - EXH MODIFIED

7 910 ₽
23

5133380 VALVE - GUILLOTINE 600 FORGED

VALVE - GUILLOTINE 600 FORGED

22 880 ₽
24

3021333 CYLINDER - 77.25

CYLINDER - 77.25

130 ₽
25

5811916 GASKET - CYLINDER BASE

GASKET - CYLINDER BASE

2 910 ₽
26

7052267 THERMOSTAT - 50C TBYS SS STEM (EDGE, EDGE, X)

THERMOSTAT - 50C TBYS SS STEM (EDGE, EDGE, X)

8 320 ₽
27

7516818 SCREW

SCREW

830 ₽
28

7516822 SCREW

SCREW

630 ₽
29

7052221 FITTING - 90Ш, 3/8 NPT, 5/8ID HOSE (EDGE, EDGE, X)

FITTING - 90Ш, 3/8 NPT, 5/8ID HOSE (EDGE, EDGE, X)

5 620 ₽
