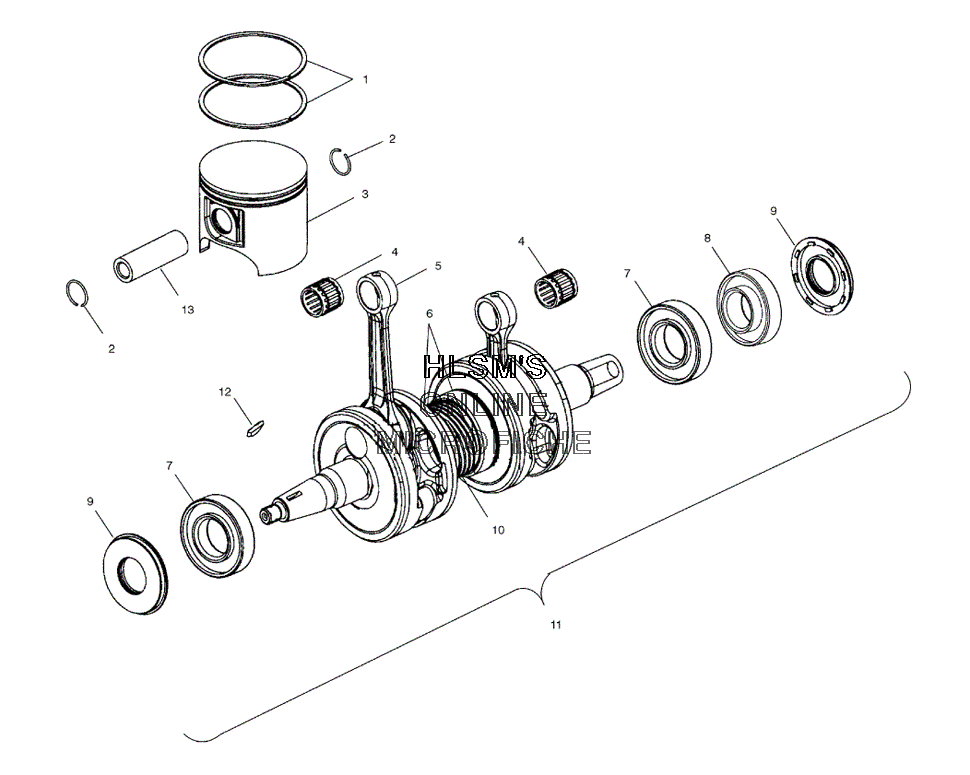

PISTON AND CRANKSHAFT для Polaris 600 XC SP EDGE X F/O (S03NA6ES) - 2003 года выпуска
-
№АртикулНазвание
-
12201256 KIT, PISTON RINGS, 1/2KEY, 77.25 CKIT, PISTON RINGS, 1/2KEY, 77.25 C
-
23022950 CIRCLIP, PISTON, 20MM. (2)CIRCLIP, PISTON, 20MM. (2)
-
32202258 KIT - PISTON 77X20 GRAFAL [INCL. 1, 2, 13)KIT - PISTON 77X20 GRAFAL [INCL. 1, 2, 13)
-
43552108 BEARING - 17 - 20X25X23, PNPIN, KOYOBEARING - 17 - 20X25X23, PNPIN, KOYO
-
52201132 KIT, ASSY., CONNECT RODKIT, ASSY., CONNECT ROD
-
63514363 BEARING - BALL, 35X72X20, SL, KOYOBEARING - BALL, 35X72X20, SL, KOYO
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
112202257 KIT - CRANKSHAFT 2@64X128 [INCL. 6 - 10)KIT - CRANKSHAFT 2@64X128 [INCL. 6 - 10)
-
127721117 KEY, WOODRUFFKEY, WOODRUFF
