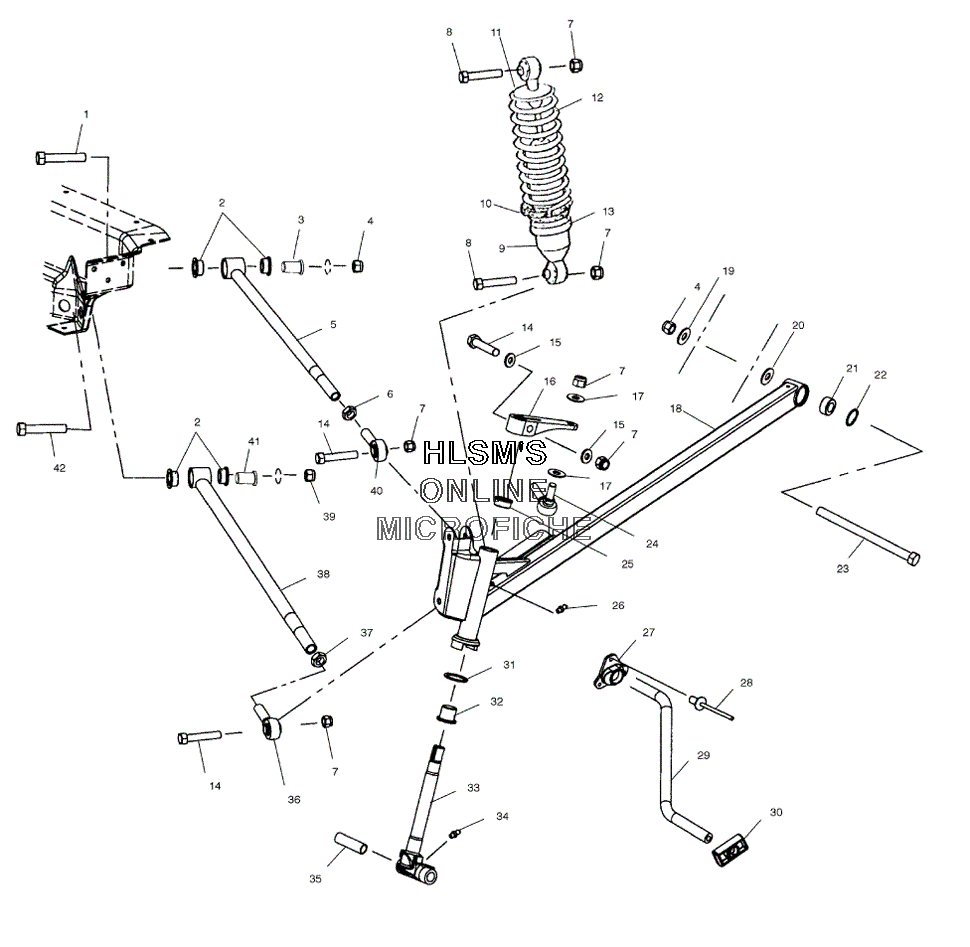

SUSPENSION - FRONT для Polaris 700 CLASSIC TOURING (S03NT7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17517980 BOLTBOLT
-
25434036 BUSHING, PIVOT, INNERBUSHING, PIVOT, INNER
-
35132779 BUSHING - SHLDRBUSHING - SHLDR
-
47547066 NUTNUT
-
51820679-385 WELD - RADIUS ROD, UPPER, CLD SLVWELD - RADIUS ROD, UPPER, CLD SLV
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
97041918 SHK, GAS, 11.09X16.35SHK, GAS, 11.09X16.35
-
105431734 RING, SPRING PRELOAD ADJ.RING, SPRING PRELOAD ADJ.
-
115630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
127042074-067 SPRING - COMP, 90/180#, 10.65 (BLACK)SPRING - COMP, 90/180#, 10.65 (BLACK)
-
131500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
147517583 SCREWSCREW
-
157555832 WASHERWASHER
-
165132728 ARM - STEERING, MACHINEDARM - STEERING, MACHINED
-
177555797 WASHER, FLATWASHER, FLAT
-
181821165-385 ASSY. - TRAILING ARM, SVC, CLOUDSILVE (INCL. 21, 22)ASSY. - TRAILING ARM, SVC, CLOUDSILVE (INCL. 21, 22)
-
181821166-385 ASSY. - TRAILING ARM, SVC, CLOUDSILVE (INCL. 21, 22)ASSY. - TRAILING ARM, SVC, CLOUDSILVE (INCL. 21, 22)
-
197555820 WASHER, FLATWASHER, FLAT
-
205132364 CUP, TRAILING ARM MNTCUP, TRAILING ARM MNT
-
217061042 BEARING - SPHERICAL, 7/16, PLASTICBEARING - SPHERICAL, 7/16, PLASTIC
-
227710437 RING, RETAININGRING, RETAINING
-
237512099 SCREWSCREW
-
247061057 ROD END - 3/8, PL, 75Ш, 1.00 (RIGHT)ROD END - 3/8, PL, 75Ш, 1.00 (RIGHT)
-
253573909 BUSHING - FLANGEBUSHING - FLANGE
-
267080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
275433814 BUSHING, TORS.BARBUSHING, TORS.BAR
-
287621452 RIVETRIVET
-
295244557-067 BAR, TORS., 9/16, 42.5" (BLACK)BAR, TORS., 9/16, 42.5" (BLACK)
-
305434371 SLIDE - TORSION BAR, 9/16, ANTIRATTSLIDE - TORSION BAR, 9/16, ANTIRATT
-
317556509 BUSHINGBUSHING
-
323574208 BUSHING, FLANGEDBUSHING, FLANGED
-
336230225-067 SHAFT - SPINDLE, W/STEER STOP (BLACK)SHAFT - SPINDLE, W/STEER STOP (BLACK)
-
347080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367061060 ROD END, RADIUS, 1/2ROD END, RADIUS, 1/2
-
377542711 NUT - JAMNUT - JAM
-
381820677-385 WELD - RADIUS ROD, LOWER, CLD SLVWELD - RADIUS ROD, LOWER, CLD SLV
-
397547065 NUTNUT
-
407061061 ROD END, RADIUS, 7/16ROD END, RADIUS, 7/16
-
415132780 BUSHING - SHLDRBUSHING - SHLDR
-
427512684 BOLTBOLT
