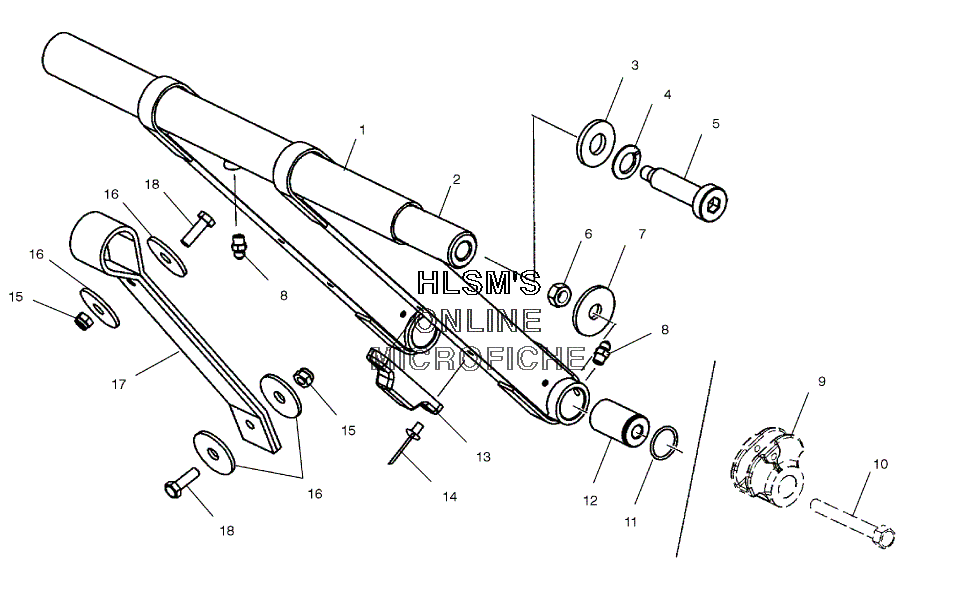

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 700 CLASSIC TOURING (S03NT7CS) - 2003 года выпуска
-
№АртикулНазвание
-
11541816-067 WELD - FRONT TORQUE ARM, M12 (BLACK)WELD - FRONT TORQUE ARM, M12 (BLACK)
-
25020812 SHAFT, UPPERSHAFT, UPPER
-
37555984 WASHER, FLATWASHER, FLAT
-
47552614 WASHER, LOCKWASHER, LOCK
-
57517815 SCREWSCREW
-
67542439 NUT, NYLOKNUT, NYLOK
-
77555743 WASHERWASHER
-
87080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
115412022 O - RINGO - RING
-
125133531 SHAFT, O - RINGSHAFT, O - RING
-
135432166 BUMPERBUMPER
-
147621418 RIVET, POPRIVET, POP
-
157542324 NUT, NYLOKNUT, NYLOK
-
167556175 WASHERWASHER
-
175412225 STRAP - LIMITERSTRAP - LIMITER
-
187512310 SCREWSCREW
