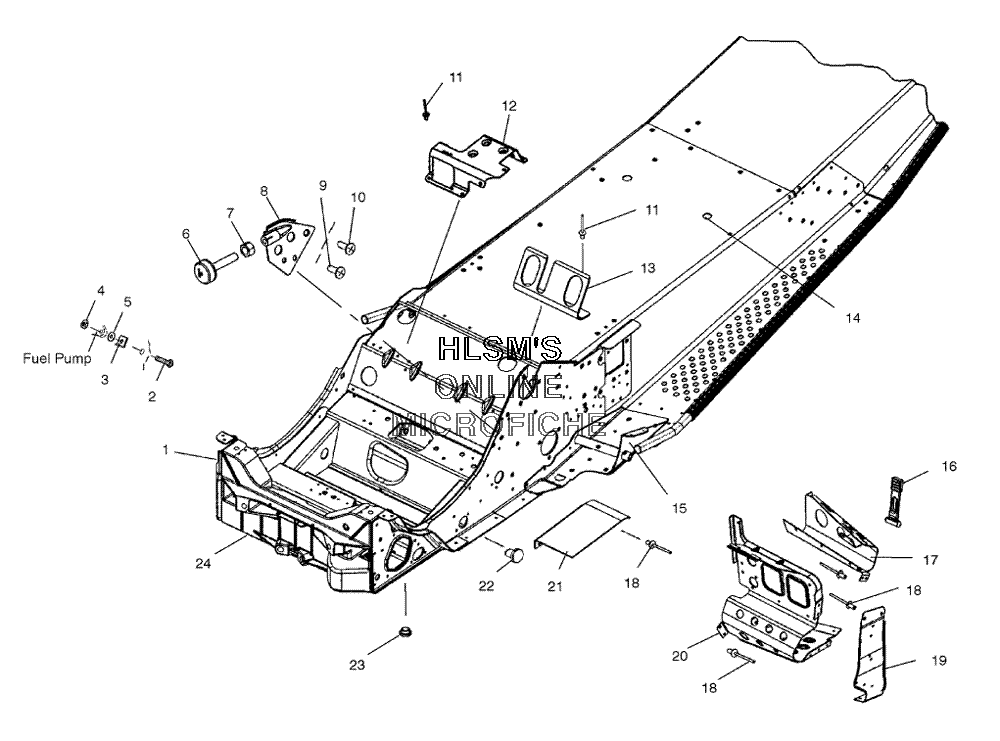

FRAME - CHASSIS для Polaris 700 EDGE RMK CC BUILT BEFORE 1/1/02 (S03NS7CS) - 2003 года выпуска
-
№АртикулНазвание
-
11013824-309 CHASSIS SERVICE ASSY 136"/144"CHASSIS SERVICE ASSY 136"/144"
-
27512275 BOLT CARRIAGEBOLT CARRIAGE
-
37670021 NUT SPEEDNUT SPEED
-
47542122 NUT NYLOKNUT NYLOK
-
57555932 WASHER NYLONWASHER NYLON
-
63110078 STOP, TORQUESTOP, TORQUE
-
77542404 NUTNUT
-
81013377 WELD TORQUE STOPWELD TORQUE STOP
-
97517854 SCREW SPEC-YSCREW SPEC-Y
-
107517632 SCREWSCREW
-
117621432 RIVETRIVET
-
125246330 BRACKET OIL TANK/HOSE SUPPORTBRACKET OIL TANK/HOSE SUPPORT
-
135246177 BRACKET AIRBOXBRACKET AIRBOX
-
147080592 CAPLUG (3/4")CAPLUG (3/4")
-
152202059 MOUNT TRAILING ARM KIT (LEFT)MOUNT TRAILING ARM KIT (LEFT)
-
152202060 MOUNT TRAILING ARM KIT (RIGHT)MOUNT TRAILING ARM KIT (RIGHT)
-
165433150 STRAPSTRAP
-
175245457 MOUNT CONSOLE, TOE CLIP (LEFT)MOUNT CONSOLE, TOE CLIP (LEFT)
-
175245458 MOUNT CONSOLE, TOE CLIP (RIGHT)MOUNT CONSOLE, TOE CLIP (RIGHT)
-
187661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
195246310 SUPPORT FOOTREST (LEFT)SUPPORT FOOTREST (LEFT)
-
195246311 SUPPORT FOOTREST (RIGHT)SUPPORT FOOTREST (RIGHT)
-
205245288 FOOTREST (.080) (LEFT)FOOTREST (.080) (LEFT)
-
205242740 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
215221583 GUARD ADAPTER DRIVEGUARD ADAPTER DRIVE
-
227080416 PLUG, HOLEPLUG, HOLE
-
237081076 PLUG HOLE (1.25)PLUG HOLE (1.25)
-
245132292 BULKHEAD MACH (FRONT)BULKHEAD MACH (FRONT)
