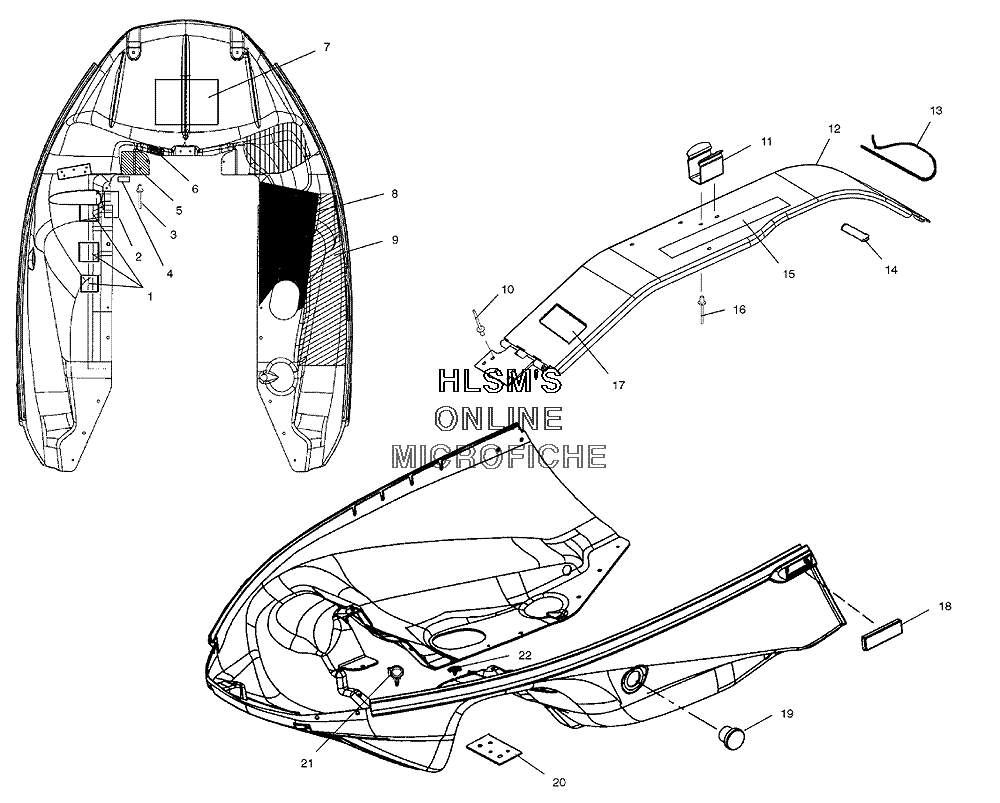

NOSEPAN ASSEMBLY #1 для Polaris 700 EDGE RMK CC BUILT BEFORE 1/1/02 (S03NS7CS) - 2003 года выпуска
-
№АртикулНазвание
-
17670130 SPEEDOMETER CLIP "U" TYPE (C-53791-014)SPEEDOMETER CLIP "U" TYPE (C-53791-014)
-
25811948 FOILFOIL
-
37621435 RIVETRIVET
-
47080963 RETAINER "J" CLIPRETAINER "J" CLIP
-
55812020 FOIL, TAPEFOIL, TAPE
-
65810949 FOIL, TAPEFOIL, TAPE
-
75812036 FOILFOIL
-
85812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
95812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
107621402 RIVET, POPRIVET, POP
-
115222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
121013069 GUARD, CLUTCH ASSYGUARD, CLUTCH ASSY
-
137080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
145812352 PAD-CLUTCH GUARDPAD-CLUTCH GUARD
-
157075350 DECAL, ENGINE AND CLUTCH (CPSC)DECAL, ENGINE AND CLUTCH (CPSC)
-
167621429 RIVETRIVET
-
177170043 DECAL TROUBLE SHOOTDECAL TROUBLE SHOOT
-
182670134 REFLECTOR, ASSY (AMBER)REFLECTOR, ASSY (AMBER)
-
195433926 PLUG, OBLONGPLUG, OBLONG
-
205211722 PLATE, BACKERPLATE, BACKER
-
214020139 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
227670131 PLUG NYLONPLUG NYLON
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE ASSEMBLY
- CHAINCASE - REVERSE MODELS
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FRAME - CHASSIS ACCESSORIES
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- • NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SHIFT - REVERSE MODELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY
- STEERING POST ASSEMBLY
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT TRACK SHOCK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- SUSPENSION - REAR TRACK SHOCK
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
