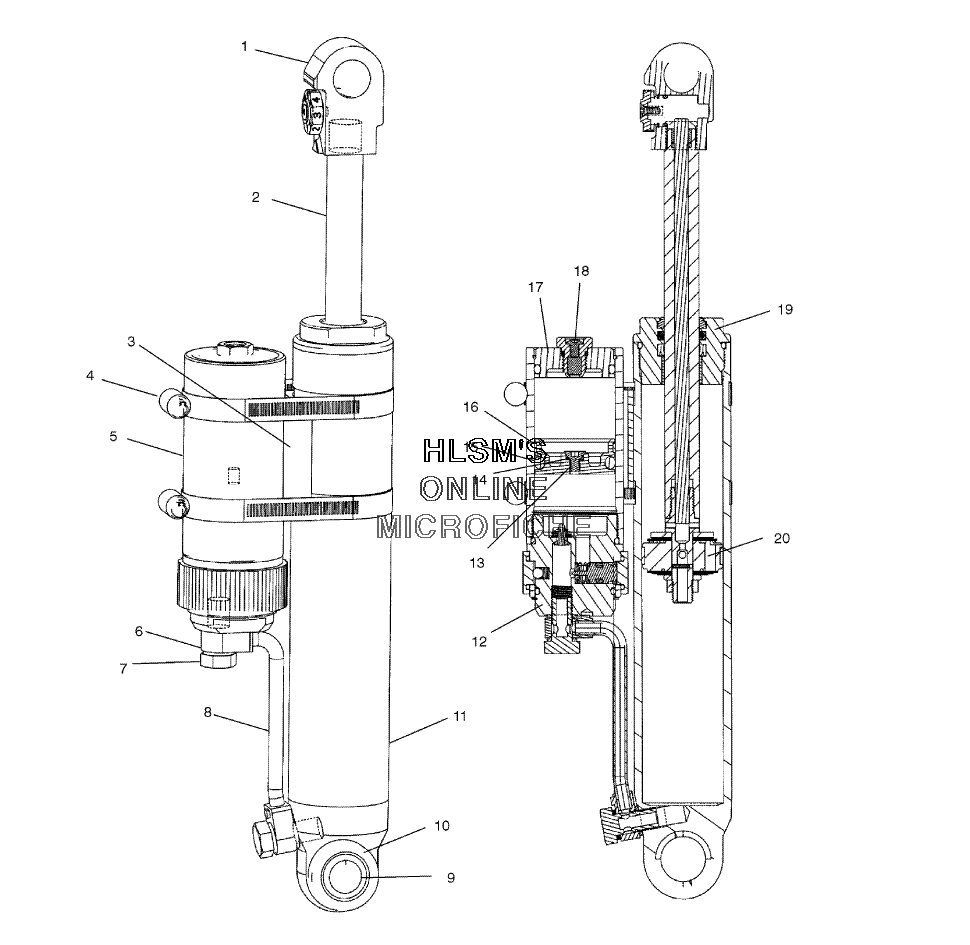

SUSPENSION - REAR TRACK SHOCK для Polaris 800 RMK 159 VERTICAL ESCAPE (S03NN8CS) - 2003 года выпуска
-
№АртикулНазвание
-
11700195 MOUNT ASSY. (UPPER)MOUNT ASSY. (UPPER)
-
21700196 SHAFTSHAFT
-
31700162 ISOLATORISOLATOR
-
41700197 CLAMP HOSECLAMP HOSE
-
51700198 BODY RESERVOIRBODY RESERVOIR
-
61700201 VALVEVALVE
-
71700200 BANJO BOLTBANJO BOLT
-
81700202 HOSE PRESSUREHOSE PRESSURE
-
91700069 SLEEVE .57"IDX.80"ODX1.20SLEEVE .57"IDX.80"ODX1.20
-
101700073 BUSHINGBUSHING
-
111700199 BODYBODY
-
121700205 VALVE BODY ASSYVALVE BODY ASSY
-
131700054 BLEED SCREW IFPBLEED SCREW IFP
-
141700016 BLEED SCREW O-RINGBLEED SCREW O-RING
-
151700204 O-RING, IFPO-RING, IFP
-
161700203 IFPIFP
-
171700164 RES END CAP W/VALVERES END CAP W/VALVE
-
171700217 CAP END, RESERVOIRCAP END, RESERVOIR
-
181700065 MALE ADAPTER 37ШMALE ADAPTER 37Ш
-
181700218 VALVE PRESSURE, W/SCREWVALVE PRESSURE, W/SCREW
-
191700206 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
191700051 CYLINDER HEAD O-RINGCYLINDER HEAD O-RING
-
191700019 ROD SCRAPERROD SCRAPER
-
191700046 CYLINDER HEAD O-RINGCYLINDER HEAD O-RING
-
191700020 ROD SEALROD SEAL
-
201700207 PISTON HIGH FLOWPISTON HIGH FLOW
-
201700031 PISTON WEAR BANDPISTON WEAR BAND
-
201700077 WASHER (TOP/OUTER)WASHER (TOP/OUTER)
-
201700078 BACK-UP WASHERBACK-UP WASHER
-
207042145 SHOCK, REAR TRACKSHOCK, REAR TRACK
