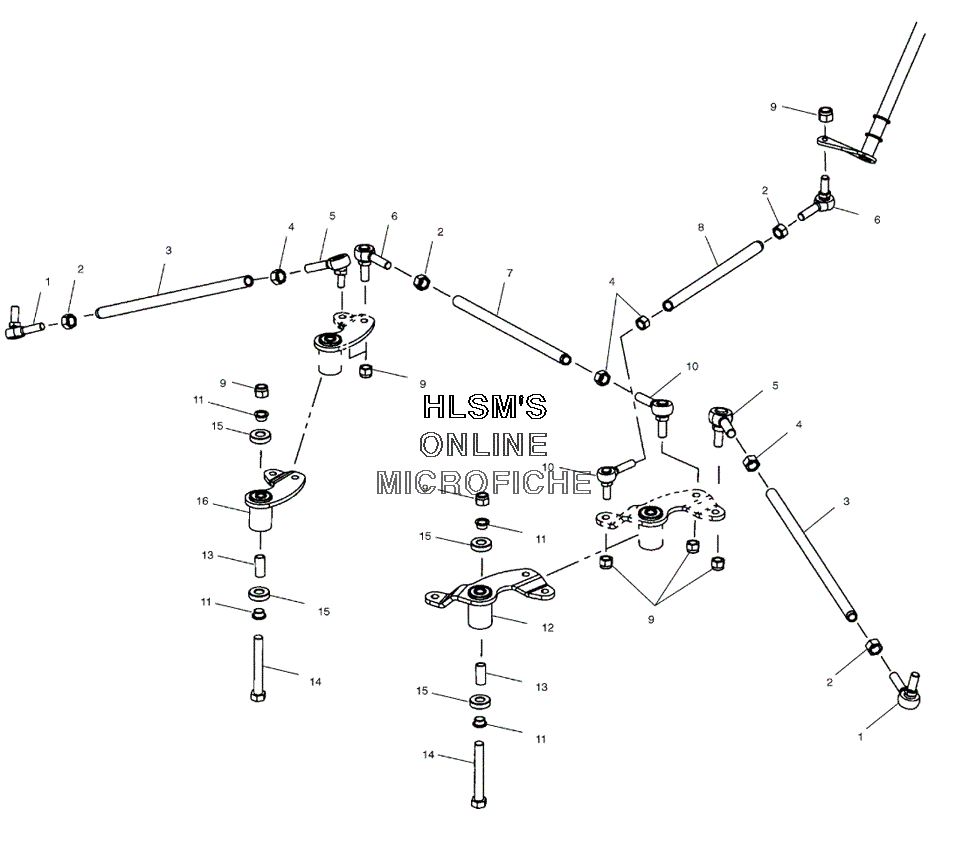

STEERING LINKAGE для Polaris 800 XC EDGE F/O (S03NP8CS) - 2003 года выпуска

№

Артикул

Название
1

7061057 ROD END - 3/8, PL, 75Ш, 1.00, (RIGHT)

ROD END - 3/8, PL, 75Ш, 1.00, (RIGHT)

9 780 ₽
2

7542401 NUT, HEX, (RIGHT)

NUT, HEX, (RIGHT)

110 ₽
3

5333949 ROD - TIE

ROD - TIE

6 660 ₽
4

7542424 NUT, (LEFT)

NUT, (LEFT)

150 ₽
5

7061055 ROD END - 3/8, PL, 75Ш (LEFT), 750 STUD

ROD END - 3/8, PL, 75Ш (LEFT), 750 STUD

9 780 ₽
6

7061076 ROD END - 3/8 (RIGHT), HI - ANGLE, PR

ROD END - 3/8 (RIGHT), HI - ANGLE, PR

9 780 ₽
7

5333772 ROD, STEERING RACK, 11.50

ROD, STEERING RACK, 11.50

6 660 ₽
8

5333773-067 ROD, DRAGLINK

ROD, DRAGLINK

4 790 ₽
9

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
10

7061075 ROD END - 3/8 (LEFT), HI - ANGLE, PR

ROD END - 3/8 (LEFT), HI - ANGLE, PR

9 780 ₽
11

5132106 BUSHING - REDUCER, 12MM TO .385

BUSHING - REDUCER, 12MM TO .385

1 730 ₽
12

1820957 ASSY., PITMAN ARM (INCL. 11, 13, 15)

ASSY., PITMAN ARM (INCL. 11, 13, 15)

33 280 ₽
13

5133423 SPACER - TUBE PITMAN/IDLER ARMS

SPACER - TUBE PITMAN/IDLER ARMS

880 ₽
14

7512435 SCREW

SCREW

250 ₽
15

3514320 BEARING - BALL, 600ILLU

BEARING - BALL, 600ILLU

3 750 ₽
16

1820959 ASSY. - IDLER ARM (INCL. 11, 13, 15)

ASSY. - IDLER ARM (INCL. 11, 13, 15)

30 160 ₽
