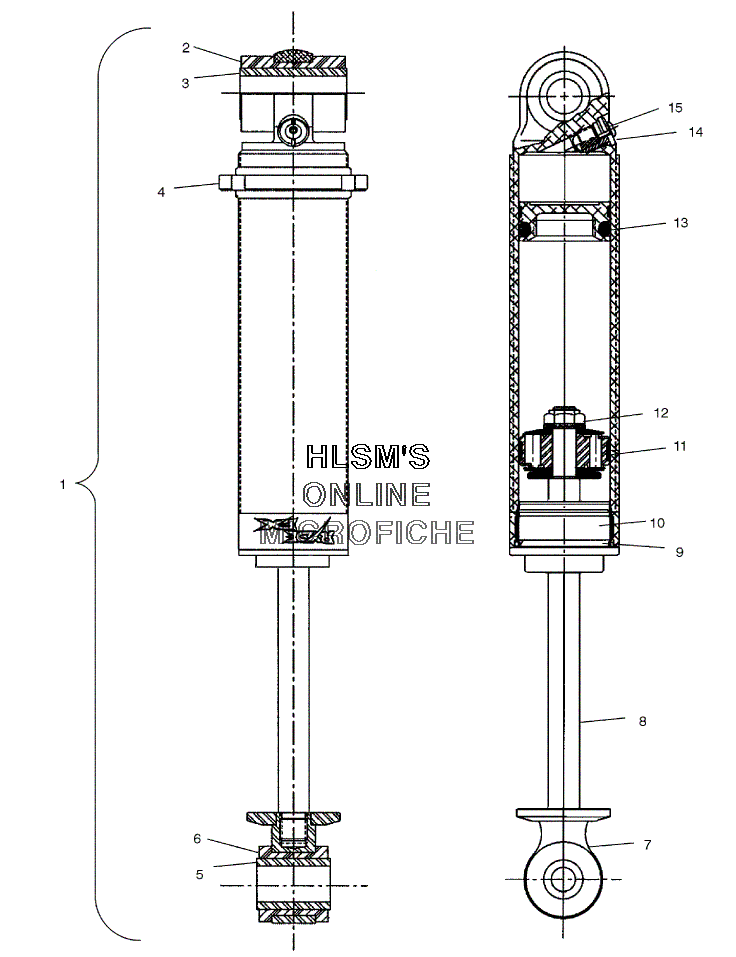

SUSPENSION - FRONT TRACK SHOCK для Polaris 800 XC EDGE F/O (S03NP8CS) - 2003 года выпуска
-
№АртикулНазвание
-
17041975 SHOCK - F/T IFPSHOCK - F/T IFP
-
21700074 BUSHINGBUSHING
-
31700071 SLEEVESLEEVE
-
41700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
51700069 SLEEVESLEEVE
-
61700075 BUSHINGBUSHING
-
71700010 MOUNT, UPPERMOUNT, UPPER
-
81700026 SHAFT - 1/2"DIAX6.10"LSHAFT - 1/2"DIAX6.10"L
-
91700051 CYL - HEAD O - RINGCYL - HEAD O - RING
-
101700156 CYL HEAD ASSY. 215098 - 100CYL HEAD ASSY. 215098 - 100
-
111700103 ASSY., BANDED PISTON .070" ORIFCEASSY., BANDED PISTON .070" ORIFCE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP - OUT WASHERTOP - OUT WASHER
-
111700078 BACK - UP WASHERBACK - UP WASHER
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP - O - RINGIFP - O - RING
-
141700076 PRESS - VALVE ASSYPRESS - VALVE ASSY
-
151700056 VALVE SCREWVALVE SCREW
