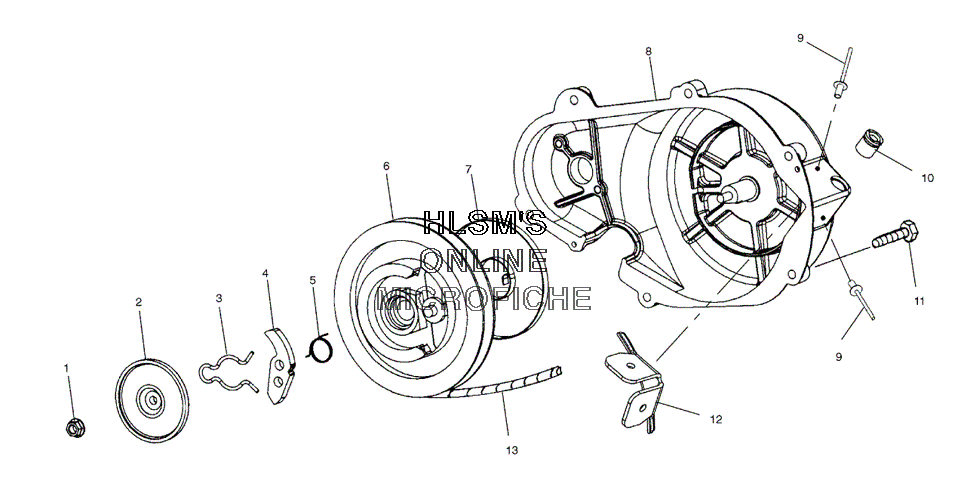

STARTER - RECOIL ASSEMBLY для Polaris 800 XC SP EDGE X F/O (S03NA8CS) - 2003 года выпуска
-
№АртикулНазвание
-
13040163 NUT, FLANGENUT, FLANGE
-
23040164 PLATE, FRICTIONPLATE, FRICTION
-
33040167 SPRING, FRICTIONSPRING, FRICTION
-
45246108 RATCHET - PAWL ELEC REVRATCHET - PAWL ELEC REV
-
53040166 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73040170 SPRING, SPIRALSPRING, SPIRAL
-
83040160 ASSY. - RECOIL E/R, SHEILDASSY. - RECOIL E/R, SHEILD
-
97661148 RIVETRIVET
-
103040171 SUBSTITUTED BY 3083107SUBSTITUTED BY 3083107
-
117517998 SCREWSCREW
-
125246218 SHIELD - RECOIL ROPESHIELD - RECOIL ROPE
-
133040169 ROPE, STARTERROPE, STARTER
-
131202408 ASSY. - RECOIL E/R, SHEILD (INCL. 1 - 10, 13 & STARTING PULLEY)ASSY. - RECOIL E/R, SHEILD (INCL. 1 - 10, 13 & STARTING PULLEY)
