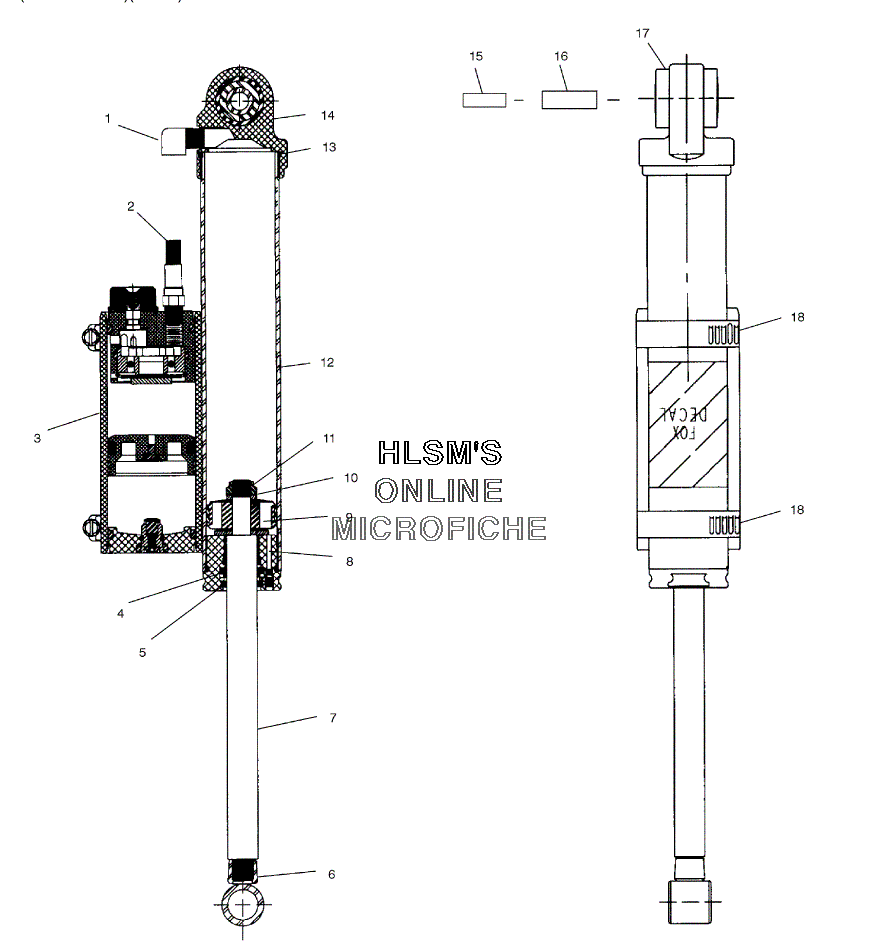

SUSPENSION - FOX SHOCK - REAR TRACK AND RESEVOIR для Polaris 800 XC SP EDGE X F/O (S03NA8CS) - 2003 года выпуска
-
№АртикулНазвание
-
11500157 FITTING, ELBOW, 90DEG.FITTING, ELBOW, 90DEG.
-
21500326 HOSE, ASSY., 3.12 TLGHOSE, ASSY., 3.12 TLG
-
41500256 U - CUPU - CUP
-
51500257 WIPER - U - CUPWIPER - U - CUP
-
61500302 EYELETEYELET
-
71500322 SHAFT, .62X8.35TLG, 1.15SHLGSHAFT, .62X8.35TLG, 1.15SHLG
-
81500328 BEARING, ASSY., QUAD RINGBEARING, ASSY., QUAD RING
-
92200618 KIT, VALV.PISTONKIT, VALV.PISTON
-
101500074 BUMPER, RUBBERBUMPER, RUBBER
-
111500016 NUT, LOCKNUT, LOCK
-
121500319 BODY, 8.67 TLG, .58 THDBODY, 8.67 TLG, .58 THD
-
131500108 O - RINGO - RING
-
141500244 BODY, CAP, ASSY.BODY, CAP, ASSY.
-
151500327 SLEEVESLEEVE
-
161500311 SLEEVESLEEVE
-
171500307 BUSHINGBUSHING
-
181500330 CLAMP, HOSECLAMP, HOSE
-
187042196 SHOCK - REAR TRACK, REMOTERESSHOCK - REAR TRACK, REMOTERES
