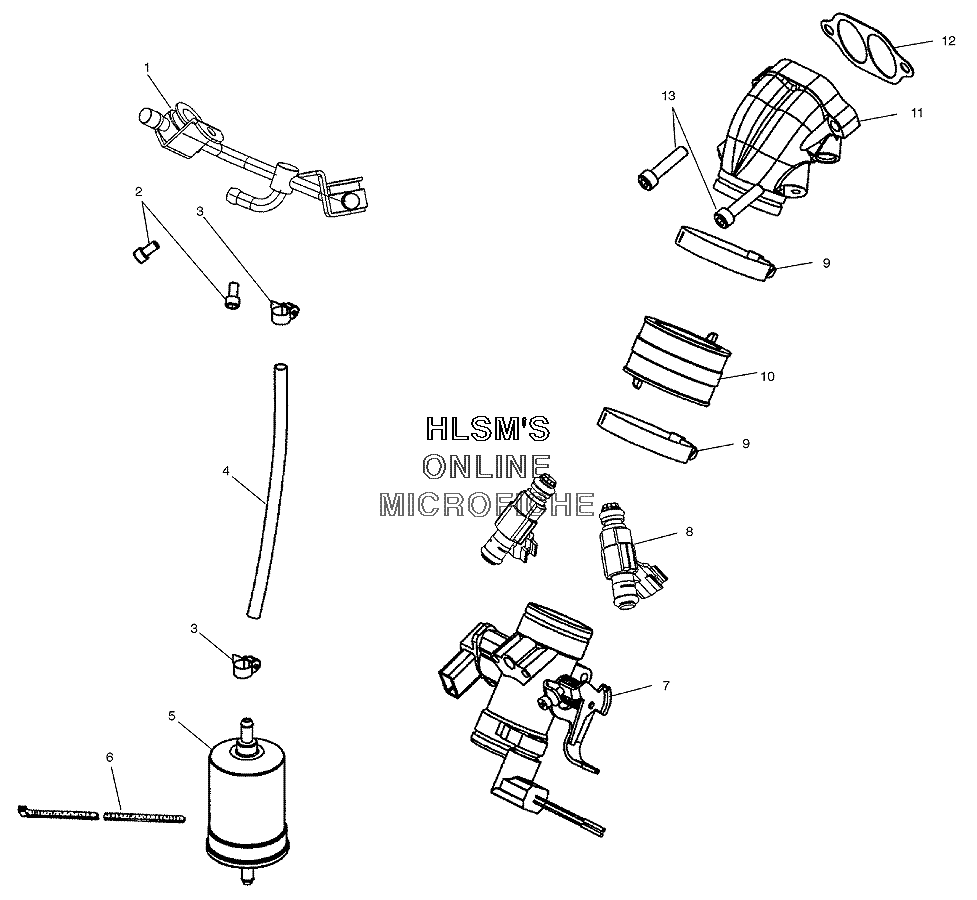

FUEL SYSTEM для Polaris FRONTIER TOURING (S03NT7DS) - 2003 года выпуска
-
№АртикулНазвание
-
12520280 FUEL RAILFUEL RAIL
-
27517405 SCREWSCREW
-
37080417 CLAMP, HOSE (SCREW TYPE)CLAMP, HOSE (SCREW TYPE)
-
48450044-153 FUEL LINE (5 FT.)FUEL LINE (5 FT.)
-
52520223 FILTER FUELFILTER FUEL
-
67080817 CABLE TIE (13")CABLE TIE (13")
-
71253496 THROTTLE BODY, ASSY.THROTTLE BODY, ASSY.
-
72410351 SENSOR THROTTLE POSITIONSENSOR THROTTLE POSITION
-
81202576 FUEL INJECTOR, ASSY.FUEL INJECTOR, ASSY.
-
81500198 O-RINGO-RING
-
97081029 CLAMP (2 3/4")CLAMP (2 3/4")
-
105412103 ADAPTER THROTTLE BODY 40MMBOREADAPTER THROTTLE BODY 40MMBORE
-
115631365 MANIFOLD INTAKEMANIFOLD INTAKE
-
125812217 GASKET INTAKEGASKET INTAKE
-
137517966 SCREW SHCS-Y/DSCREW SHCS-Y/D
