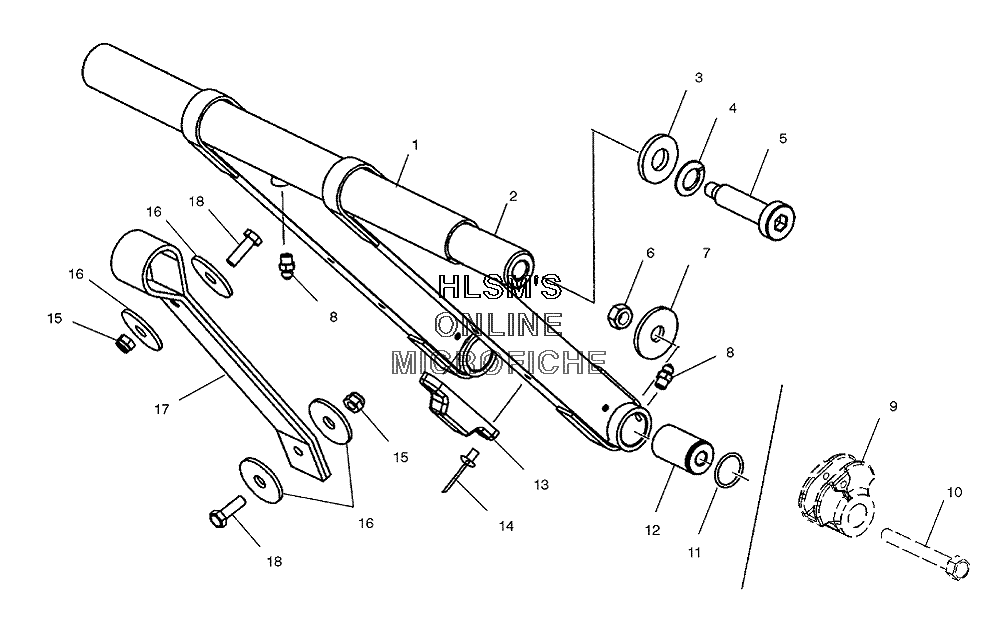

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris FRONTIER TOURING (S03NT7DS) - 2003 года выпуска
-
№АртикулНазвание
-
11541816-067 WELD FRONT TORQUE ARM, M12 (BLACK)WELD FRONT TORQUE ARM, M12 (BLACK)
-
25020812 SHAFT (UPPER)SHAFT (UPPER)
-
37555984 WASHER FLATWASHER FLAT
-
47552614 WASHER LOCKWASHER LOCK
-
57517815 SCREW SOCKET HEAD P80-DGPTSCREW SOCKET HEAD P80-DGPT
-
67542439 NUT, NYLOKNUT, NYLOK
-
77555743 WASHERWASHER
-
87080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
115412022 O-RINGO-RING
-
125133531 SHAFT O-RINGSHAFT O-RING
-
135432166 BUMPERBUMPER
-
147621418 RIVET POPRIVET POP
-
157542324 NUT, NYLOKNUT, NYLOK
-
167556175 WASHERWASHER
-
175412225 STRAP LIMITERSTRAP LIMITER
-
187512392 BOLTBOLT
