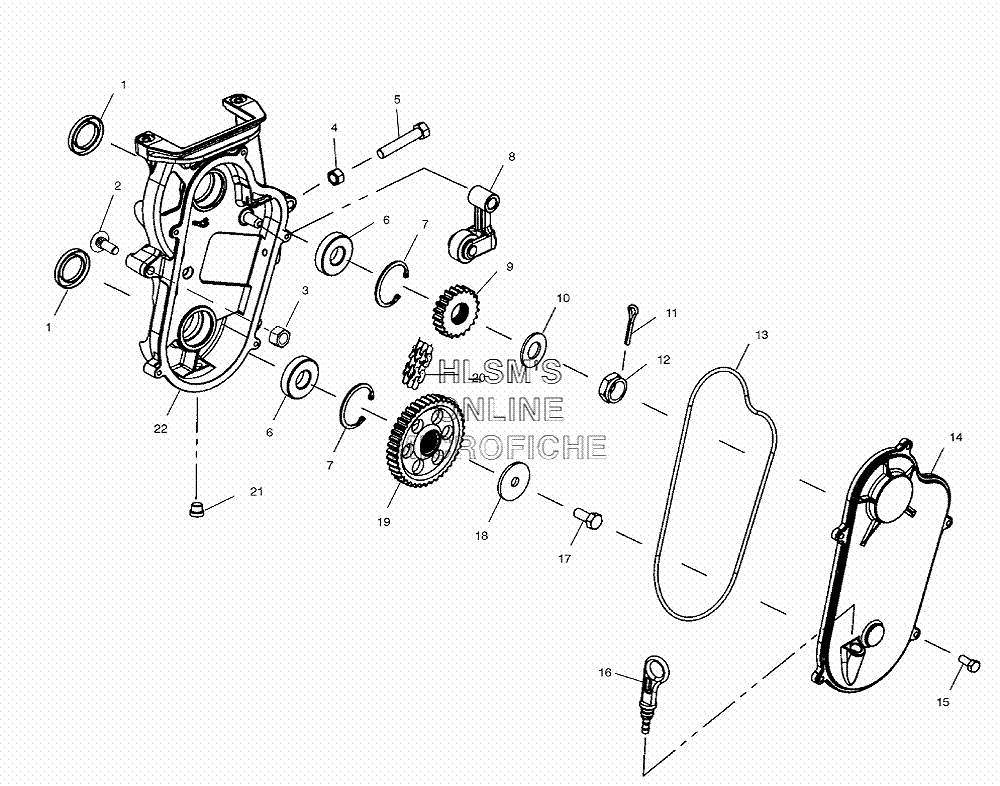

CHAINCASE ASSEMBLY для Polaris SUPERSPORT EDGE (S03NB5BS) - 2003 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27515477 SCREW CARRIAGESCREW CARRIAGE
-
37542451 NUT, NYLOKNUT, NYLOK
-
45132237 NUT CHAIN ADJUSTER, 3/8-16NUT CHAIN ADJUSTER, 3/8-16
-
57512470 SCREWSCREW
-
63514309 BEARING BALLBEARING BALL
-
77718406 RING RETAININGRING RETAINING
-
81332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
83553002 BEARINGBEARING
-
85630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
87558702 WASHER THRUSTWASHER THRUST
-
87662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
85630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
93221095 SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)
-
107571620 WASHER, SPRINGWASHER, SPRING
-
117661401 PIN, COTTERPIN, COTTER
-
127542811 NUT, THIN NYLON INSERT-YNUT, THIN NYLON INSERT-Y
-
135411497 GASKET, O-RINGGASKET, O-RING
-
145132368 COVER CHNCASE, ALUM (7.92 CD)COVER CHNCASE, ALUM (7.92 CD)
-
157512242 SCREWSCREW
-
161332250 DIPSTICK, W/MAGNET ASSY EDGEDIPSTICK, W/MAGNET ASSY EDGE
-
177517979 SCREW 3/4 HEXAGON HEAD/NYL, GR8-PSCREW 3/4 HEXAGON HEAD/NYL, GR8-P
-
187571618 WASHER, SPRINGWASHER, SPRING
-
193222108 SPROCKET (39T/15T, 3/4W, HYVO PM)SPROCKET (39T/15T, 3/4W, HYVO PM)
-
203221110 CHAIN, HYVO (72P, 3/4W)CHAIN, HYVO (72P, 3/4W)
-
217052115 PLUGPLUG
-
225132773 CHAINCASE 7.92 CD, ALUMCHAINCASE 7.92 CD, ALUM
