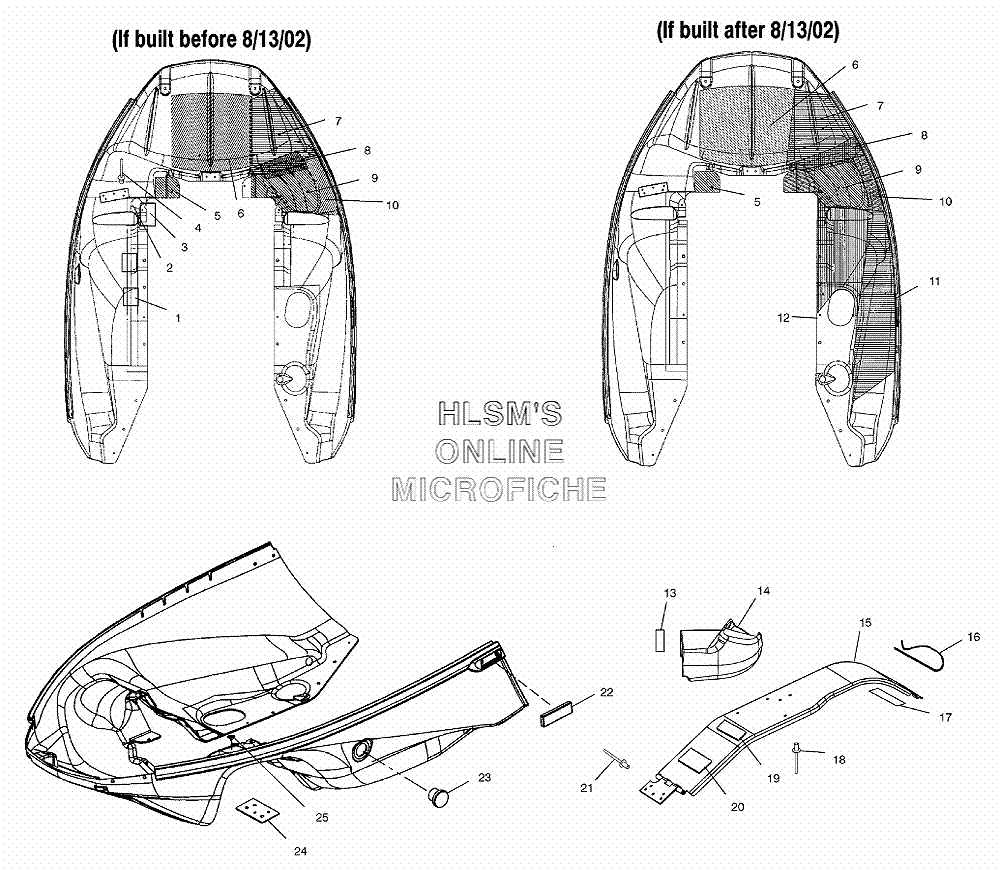

NOSEPAN ASSEMBLY #2 для Polaris SUPERSPORT EDGE (S03NB5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17670130 SPEEDOMETER CLIP "U" TYPE (C-53791-014)SPEEDOMETER CLIP "U" TYPE (C-53791-014)
-
27080963 RETAINER "J" CLIPRETAINER "J" CLIP
-
35811948 FOILFOIL
-
47621462 RIVETRIVET
-
55812020 FOIL, TAPEFOIL, TAPE
-
65811458 FOIL TAPE (12"X12")FOIL TAPE (12"X12")
-
75812040 FOIL (FRONT)FOIL (FRONT)
-
85812067 FOIL, TAPEFOIL, TAPE
-
95812039 FOILFOIL
-
105812068 FOIL, TAPEFOIL, TAPE
-
115812018 FOIL, TAPE (UPPER/RIGHT) (IF BUILT AFTER 8/13/02)FOIL, TAPE (UPPER/RIGHT) (IF BUILT AFTER 8/13/02)
-
125812019 FOIL, TAPE (LOWER/RIGHT) (IF BUILT AFTER 8/13/02)FOIL, TAPE (LOWER/RIGHT) (IF BUILT AFTER 8/13/02)
-
135812353 FOAM W/PSAFOAM W/PSA
-
145434531 DUCT, ENGINE AIR OUTLETDUCT, ENGINE AIR OUTLET
-
151013069 GUARD, CLUTCH ASSYGUARD, CLUTCH ASSY
-
167080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
175812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
187621485 RIVETRIVET
-
197079297 DECAL WARNING, ENGINE AND CLUTCHDECAL WARNING, ENGINE AND CLUTCH
-
207170046 DECAL TROUBLE SHOOT, PPSDECAL TROUBLE SHOOT, PPS
-
207170987 DECAL TROUBLE SHOOT, COMP ADJUSTDECAL TROUBLE SHOOT, COMP ADJUST
-
207170930 DECAL TROUBLE SHOOT, M-10 121"DECAL TROUBLE SHOOT, M-10 121"
-
207170743 DECAL TROUBLE SHOOT, M-10 ACEDECAL TROUBLE SHOOT, M-10 ACE
-
217621402 RIVET, POPRIVET, POP
-
222670134 REFLECTOR, ASSY (AMBER)REFLECTOR, ASSY (AMBER)
-
235433926 PLUG, OBLONGPLUG, OBLONG
-
245211722 PLATE, BACKERPLATE, BACKER
-
257670131 PLUG NYLON (MANUAL START)PLUG NYLON (MANUAL START)
