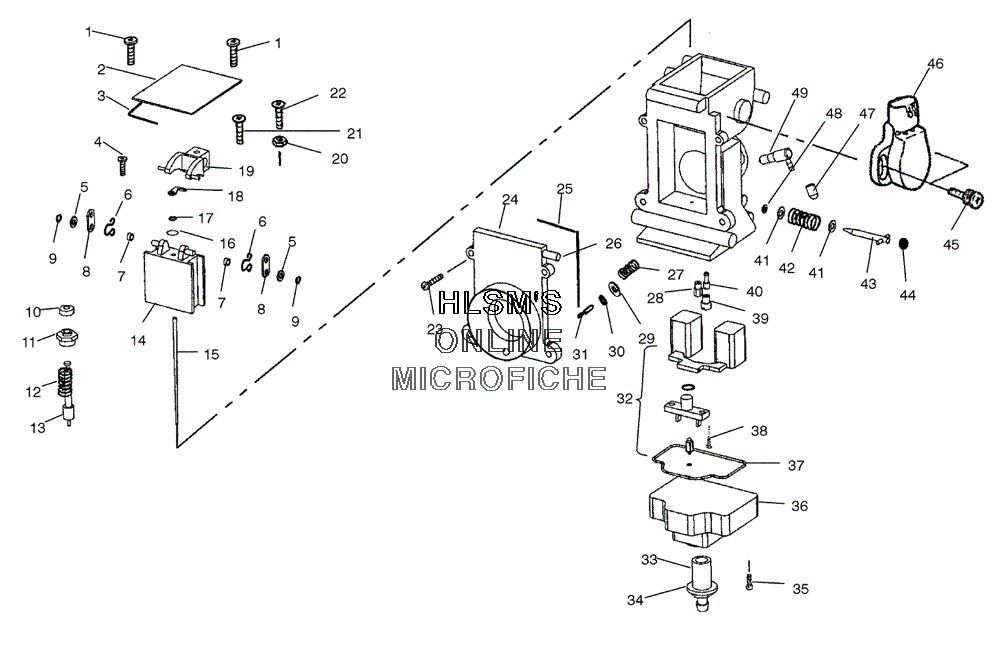

CARBURETOR - INTERNAL (600) для Polaris 600 CLASSIC TOURING EURO (S04NT6EE) - 2004 года выпуска
-
№АртикулНазвание
-
13130951 SCREWSCREW
-
23130872 CAP, TOPCAP, TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, RUBBERCAP, RUBBER
-
113130830 HOLDER, GUIDEHOLDER, GUIDE
-
123130829 SPRINGSPRING
-
133130828 PLUNGER ASM./258PLUNGER ASM./258
-
143130940 VALVE, PISTON 1.5VALVE, PISTON 1.5
-
153131377 JET-NEEDLE J8-9DGI01-60JET-NEEDLE J8-9DGI01-60
-
163130867 PACKINGPACKING
-
173130868 E-RINGE-RING
-
183130843 PLATEPLATE
-
193130855 LEVER ASM.LEVER ASM.
-
193130849 LEVER ASM.LEVER ASM.
-
203130848 RINGRING
-
213130854 SCREWSCREW
-
223130850 SCREWSCREW
-
233130825 SCREWSCREW
-
243131335 ASM-FUNNELASM-FUNNEL
-
253131356 O-RING, LONG AIR FUNNELO-RING, LONG AIR FUNNEL
-
263130808 PINPIN
-
273131371 SPRINGSPRING
-
283130142 JET, MAIN, HX.HD#420JET, MAIN, HX.HD#420
-
293131372 WASHERWASHER
-
303130522 O-RINGO-RING
-
313131336 SCREW-AIRSCREW-AIR
-
323130859 FLOAT ASM.FLOAT ASM.
-
333131248 BOLT-DRAINBOLT-DRAIN
-
343130863 O-RINGO-RING
-
353130824 SCREWSCREW
-
363130858 FLOAT, BODYFLOAT, BODY
-
373130861 O-RINGO-RING
-
383130860 SCREWSCREW
-
393130069 JET, PILOT, #50JET, PILOT, #50
-
403130768 JET, STARTER, #VM11/22-140JET, STARTER, #VM11/22-140
-
413130837 WASHERWASHER
-
423130836 SPRINGSPRING
-
433130987 ADJUSTERADJUSTER
-
443130986 CAPCAP
-
453131010 SCREW (MAG SIDE)SCREW (MAG SIDE)
-
463131009 ASM-SENSOR (MAG)ASM-SENSOR (MAG)
-
473130479 CAPCAP
-
483130835 PACKINGPACKING
-
497051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
-1253505 ASM-CARBURETORASM-CARBURETOR
