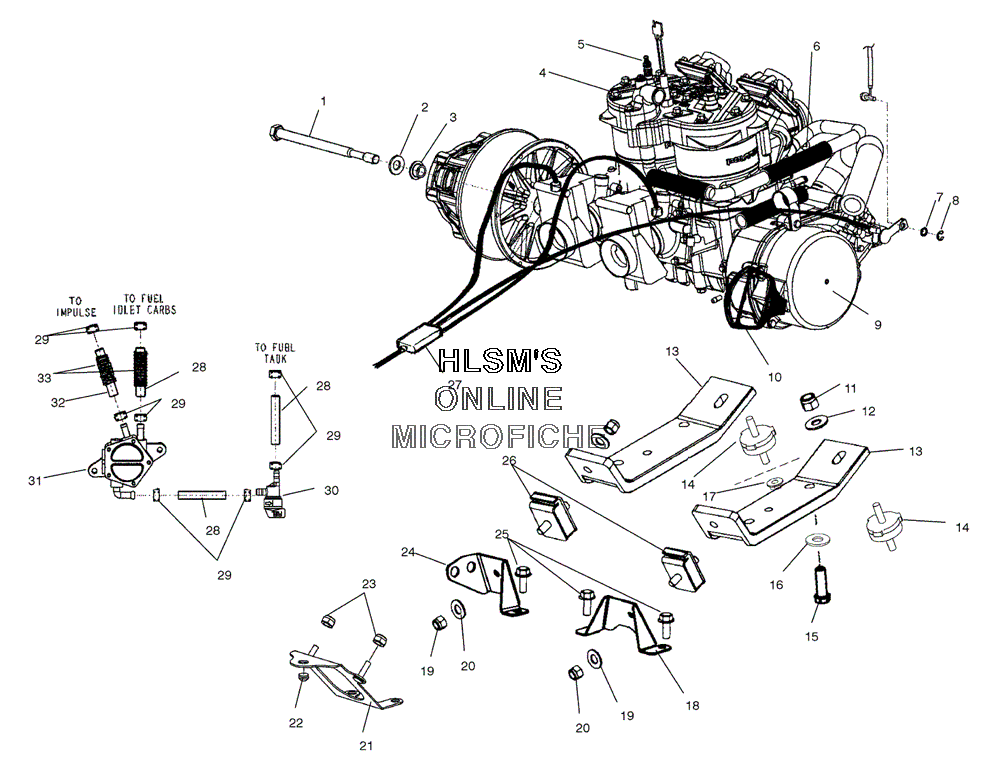

ENGINE MOUNTING (600) для Polaris 600 CLASSIC TOURING EURO (S04NT6EE) - 2004 года выпуска
-
№АртикулНазвание
-
17517501 SCR-M14X1.5X215, HX, 10.9, Y35, RSCR-M14X1.5X215, HX, 10.9, Y35, R
-
27556003 WASHERWASHER
-
35131872 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
42202515 ENGINE (SEE NOTE)ENGINE (SEE NOTE)
-
53070190 SP.PLUG, CHAMPION RN57Y CC (4)SP.PLUG, CHAMPION RN57Y CC (4)
-
65521398-13 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
77555944 WASHERWASHER
-
87710427 RING-E, RET.RING-E, RET.
-
95811485 FOIL-TAPE, 5.5''DIAFOIL-TAPE, 5.5''DIA
-
105431499-070 HANDLE-RECOIL, BLACKHANDLE-RECOIL, BLACK
-
117542451 NUT, NYLOKNUT, NYLOK
-
127555893 WASHER, FLATWASHER, FLAT
-
135245465 STRAP-ENGINE MOUNT, S44, LEFT HANDSTRAP-ENGINE MOUNT, S44, LEFT HAND
-
135246382 STRAP-ENGINE MOUNT, S44, RIGHT HANDSTRAP-ENGINE MOUNT, S44, RIGHT HAND
-
143021220 MOUNT-ENGINE, 3/8-16MOUNT-ENGINE, 3/8-16
-
157512539 BOLTBOLT
-
167553101 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
177547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
185245044 BRKT-ENGINE MOUNT, RIGHT HAND, FORMEDBRKT-ENGINE MOUNT, RIGHT HAND, FORMED
-
197555806 WASHER, FLATWASHER, FLAT
-
207547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
211014392 WELD-BRKT PUMP, FUELWELD-BRKT PUMP, FUEL
-
225410012 PLUG, RUBBER-HOLE, .5DIAPLUG, RUBBER-HOLE, .5DIA
-
237542122 NUT-NYLOKNUT-NYLOK
-
241013397 WELD-ENG MOUNT BRKT, LEFT HANDWELD-ENG MOUNT BRKT, LEFT HAND
-
257517854 SCR-3/8-16X1-P30-SPEC-YSCR-3/8-16X1-P30-SPEC-Y
-
263021206 MOUNT-ENGINE, 3/8-16, RECTMOUNT-ENGINE, 3/8-16, RECT
-
277080867 CABLE, THROTTLECABLE, THROTTLE
-
288350017-600 FUEL, LINE, ETHER, RED, 5/16"FUEL, LINE, ETHER, RED, 5/16"
-
297080003 CLAMP, HOSECLAMP, HOSE
-
301253424 ASM-VALVE, FUEL, PLASTIC 90°5/16ASM-VALVE, FUEL, PLASTIC 90°5/16
-
312520275 PUMP-FUEL, 5/16 IN/OUT, MIKPUMP-FUEL, 5/16 IN/OUT, MIK
-
328450040-600 LINE FUEL, 1/4 ID (600 CM.)LINE FUEL, 1/4 ID (600 CM.)
-
338360052-25 TUBING, CONVOLUTEDTUBING, CONVOLUTED
