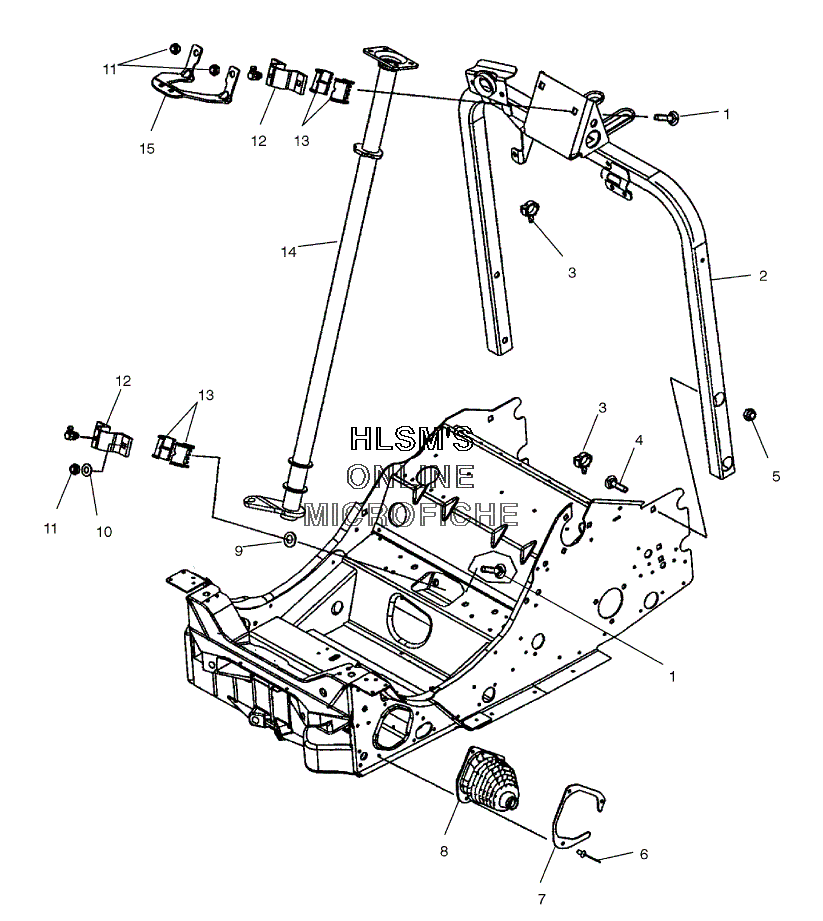

STEERING ASSEMBLY для Polaris 600 CLASSIC TOURING (S04NT6ES) - 2004 года выпуска
-
№АртикулНазвание
-
17517579 BOLT-CARR 5/16-X1''GR5 Y LOBOLT-CARR 5/16-X1''GR5 Y LO
-
21013804-067 WELD-HOOP, STEERING, BLACKWELD-HOOP, STEERING, BLACK
-
34020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
47512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
57542343 NUT, FLANGENUT, FLANGE
-
67621433 RIVETRIVET
-
75244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
85433532 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
85433533 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
97547030 PALNUTPALNUT
-
107558402 WASHER, FLATWASHER, FLAT
-
117542324 NUT, NYLOKNUT, NYLOK
-
125133648 BRKT-STEERING POST, MODBRKT-STEERING POST, MOD
-
127080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
135432785 BUSHINGBUSHING
-
141820965-067 WELD-POST, STEERING, BLACKWELD-POST, STEERING, BLACK
-
155245354 BRKT-CONSOLE, FRONT NECK, STDBRKT-CONSOLE, FRONT NECK, STD
Все узлы модели:
- BATTERY BOX
- BRAKE ASSEMBLY
- BUMPER/HITCH FLAP
- CARBURETOR (600)
- CARBURETOR - INTERNAL (600)
- CARGO BOX W/ TAILLIGHT ASSY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE (600)
- CYLINDER (600)
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ENGINE MOUNTING (600)
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL TANK
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ INSTRUMENTS
- HOOD ASSEMBLY W/ WINDSHIELD
- MAGNETO (600)
- NOSEPAN ASSEMBLY
- NOSEPAN W/ FOIL/FOAM
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT (600)
- RAIL MOUNTING
- RECOIL STARTER (600)
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTING MOTOR (600)
- STEERING - TIE RODS
- • STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WATER PUMP/OIL PUMP (600)
