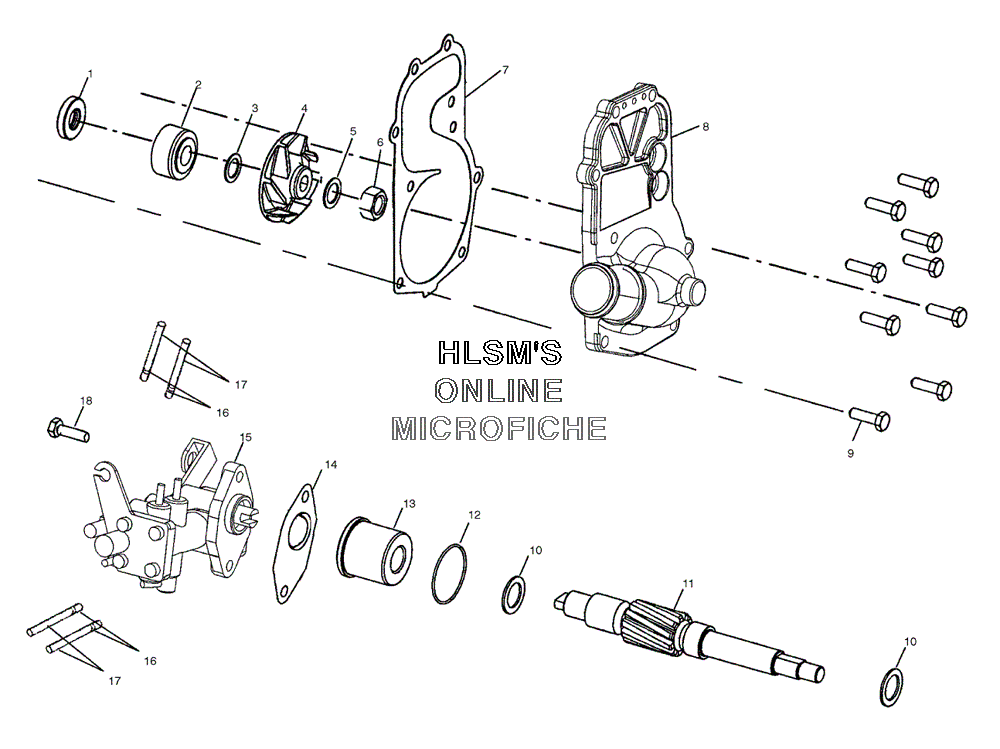

WATER PUMP/OIL PUMP (600) для Polaris 600 CLASSIC TOURING (S04NT6ES) - 2004 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S, ARSSEAL, TYPE S, ARS
-
23610067 SEALSEAL
-
37556006 WASHER, FLAT, SS.WASHER, FLAT, SS.
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER, FLAT, S.S.WASHER, FLAT, S.S.
-
67546804 NUT, HEX, , NYLOKNUT, HEX, , NYLOK
-
75811601 GASKET, WATERPUMP CVR.GASKET, WATERPUMP CVR.
-
85630920 COVER-WATERPUMP, SNOW HI-FLOWCOVER-WATERPUMP, SNOW HI-FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115133688 GEAR-CROSS SHAFT, 11 STARTGEAR-CROSS SHAFT, 11 START
-
125411196 O-RINGO-RING
-
135010391 BRNG, PUMP SHAFT, FLANGEDBRNG, PUMP SHAFT, FLANGED
-
145811789 GASKETGASKET
-
152540117 ASM-OIL PUMP 0.909ASM-OIL PUMP 0.909
-
167080603 CLAMPCLAMP
-
178450061-600 LINE, FUEL, 3MMX7MMLINE, FUEL, 3MMX7MM
-
187517277 SCREWSCREW
