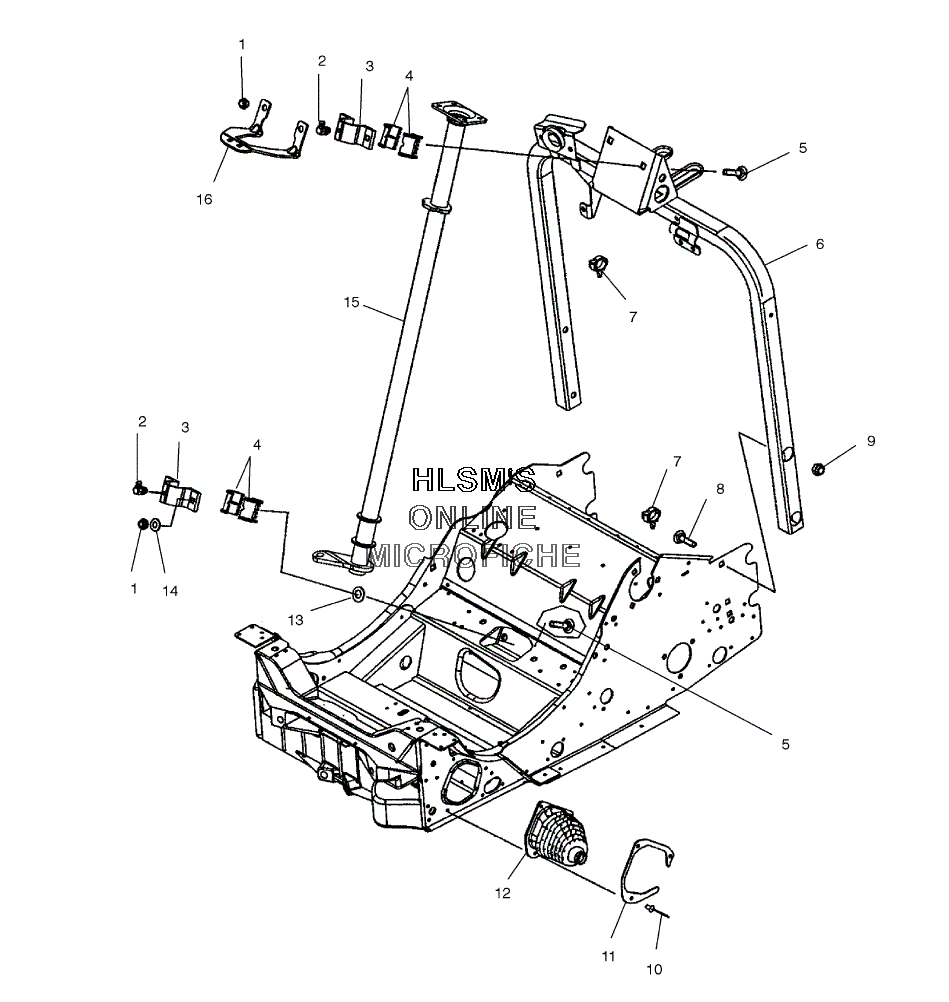

STEERING ASSEMBLY #2 для Polaris 600 XC SP EDGE (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27080510 FITTING, ZERK (90 DEGREE)FITTING, ZERK (90 DEGREE)
-
35133648 BRACKET STEERING POST, MODBRACKET STEERING POST, MOD
-
45432785 BUSHINGBUSHING
-
57517579 BOLT-CARRBOLT-CARR
-
61013776-067 WELD STEERING HOOP (BLACK) (EDGE)WELD STEERING HOOP (BLACK) (EDGE)
-
61013804-067 WELD HOOP, STEERING (BLACK) (M-10)WELD HOOP, STEERING (BLACK) (M-10)
-
74020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
87512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
97542343 NUT, FLANGENUT, FLANGE
-
107621433 RIVETRIVET
-
115244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
125433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
125433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
137547030 PALNUTPALNUT
-
147558402 WASHER, FLATWASHER, FLAT
-
151820965-067 WELD POST, STEERING (BLACK)WELD POST, STEERING (BLACK)
-
165245354 BRACKET CONSOLE (FRONT)BRACKET CONSOLE (FRONT)
