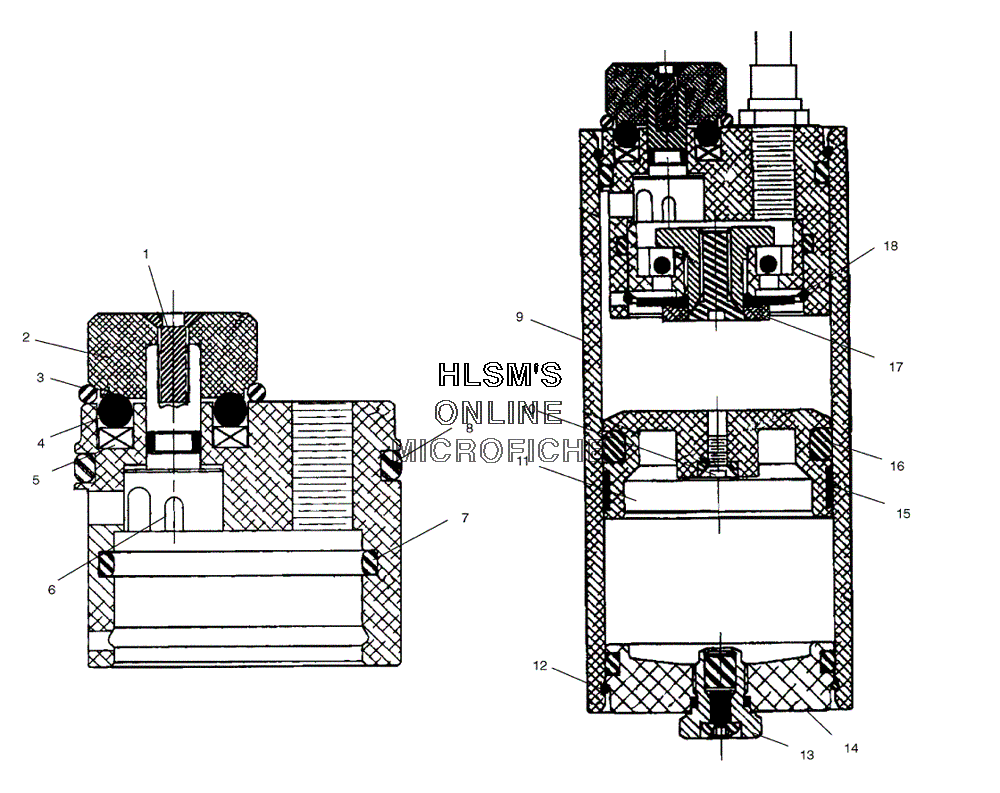

SUSPENSION - COMPRESSION DAMPING RESERVOIR (EDGE) для Polaris 600 XC SP EDGE (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
1A1500329 RESERVOIR WITH GROOVE ASSY (INCL. 1-18)RESERVOIR WITH GROOVE ASSY (INCL. 1-18)
-
1B1500263 HOUSING COMPRESSION DAMP (INCL. 1-8)HOUSING COMPRESSION DAMP (INCL. 1-8)
-
11500223 SCREWSCREW
-
21500224 KNOB DAMP ADJUSTKNOB DAMP ADJUST
-
31500253 O-RINGO-RING
-
41500226 BALLBALL
-
51500225 SPRINGSPRING
-
61500254 DRUM, COMPRESSION DAMPINGDRUM, COMPRESSION DAMPING
-
71500227 O-RINGO-RING
-
81500228 O-RINGO-RING
-
91500325 DAMPNER ASSYDAMPNER ASSY
-
101500161 SCREWITH OUTER RING ASSYSCREWITH OUTER RING ASSY
-
111500235 PISTON, FLOAT ASSYPISTON, FLOAT ASSY
-
121500236 RING, RETAININGRING, RETAINING
-
131500232 SCREWSCREW
-
141500231 RESERVOIR END CAP ASSYRESERVOIR END CAP ASSY
-
151500230 BEARING, EXTERNALBEARING, EXTERNAL
-
161500229 SEAL, O-RINGSEAL, O-RING
-
171500324 PLATE, DAMPING 4-HOLEPLATE, DAMPING 4-HOLE
-
181500233 RING, RETAININGRING, RETAINING
