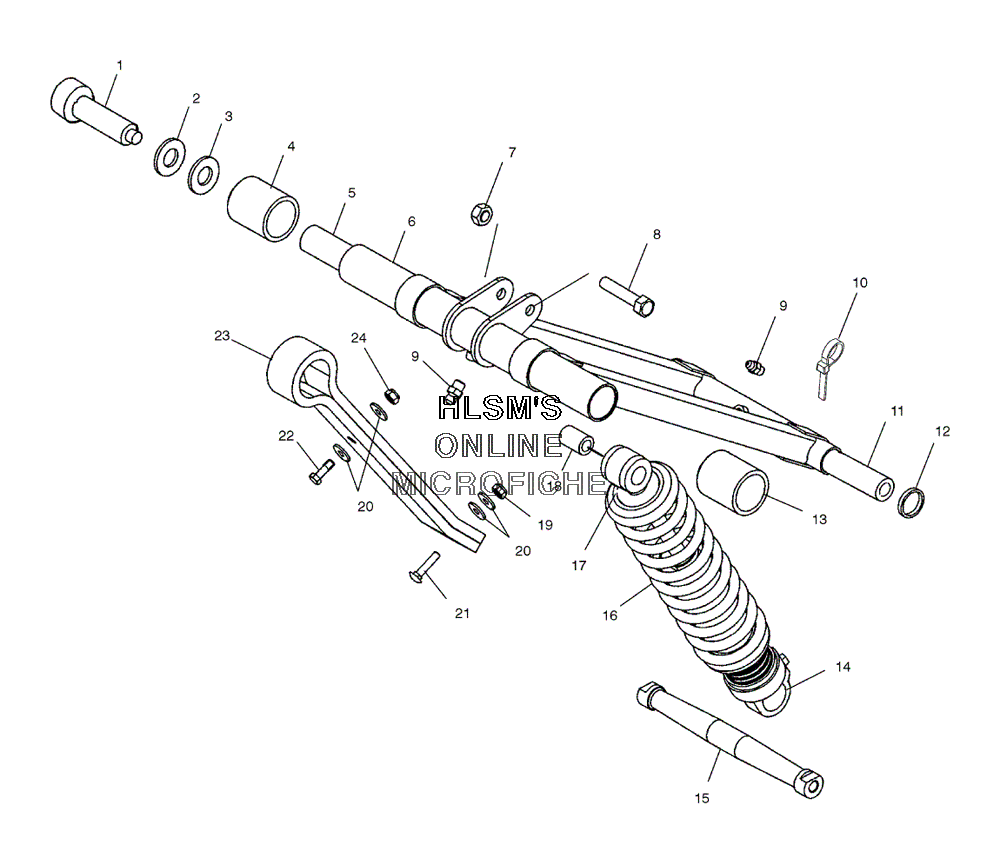

SUSPENSION - FRONT TORQUE ARM ASSEMBLY (M-10) для Polaris 600 XC SP M-10 (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
17517815 SCREW SOC HEADSCREW SOC HEAD
-
27552614 WASHER, LOCKWASHER, LOCK
-
37555984 WASHER, FLATWASHER, FLAT
-
45132595 SPACER (UPPER)SPACER (UPPER)
-
47512257 SCREW SOCKET SETSCREW SOCKET SET
-
55132675 SHAFT (UPPER)SHAFT (UPPER)
-
61541527-067 TORQUE ARM (M-10) (BLACK)TORQUE ARM (M-10) (BLACK)
-
61541893-067 WELD TORQUE ARM (M-10 ACE) (BLACK)WELD TORQUE ARM (M-10 ACE) (BLACK)
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515415 SCREWSCREW
-
97080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
107080138 CABLE TIE (ACE)CABLE TIE (ACE)
-
115132579 SHAFT, PIVOT (LOWER)SHAFT, PIVOT (LOWER)
-
125132783 SPACER (LOWER)SPACER (LOWER)
-
135435190 SLEEVE ACE WIRESLEEVE ACE WIRE
-
147042224 SHOCK TRACK (FRONT)SHOCK TRACK (FRONT)
-
167041671-067 SPRING COMPRESSION (BLACK)SPRING COMPRESSION (BLACK)
-
175020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
185333905 SLEEVESLEEVE
-
197542324 NUT, NYLOKNUT, NYLOK
-
207556175 WASHERWASHER
-
217515316 BOLTBOLT
-
227512392 BOLTBOLT
-
235411940 STRAP LIMITER (M-10)STRAP LIMITER (M-10)
-
247542344 NUT, NYLOKNUT, NYLOK
