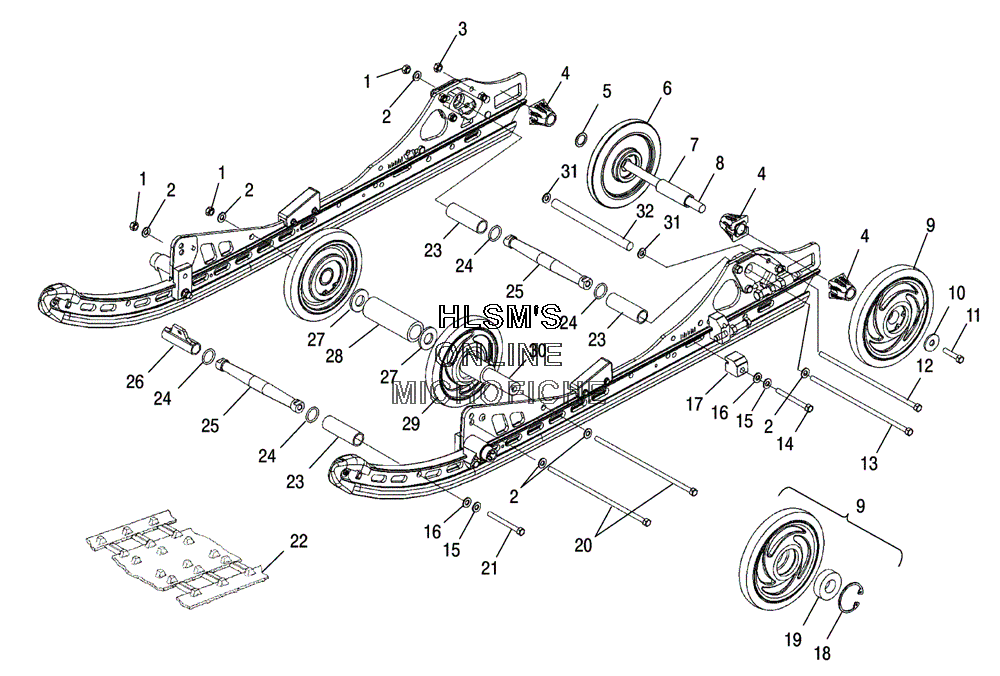

SUSPENSION - REAR (M-10) для Polaris 600 XC SP M-10 (S04NP5CS) - 2004 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
27555806 WASHER, FLATWASHER, FLAT
-
37547064 NUT, NYLOKNUT, NYLOK
-
45432535 SPACER, IDLERSPACER, IDLER
-
57555918 BUSHINGBUSHING
-
61590307 WHEEL, IDLER 6.0 OD PLAIN ASSYWHEEL, IDLER 6.0 OD PLAIN ASSY
-
75333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
85020744 SHAFT, IDLERSHAFT, IDLER
-
91590305-244 WHEEL IDLER M-10 GENII, EDGE (SILVER)WHEEL IDLER M-10 GENII, EDGE (SILVER)
-
107556130 WASHERWASHER
-
117517731 BOLTBOLT
-
127517896 SCREW HEXAGON HEAD CAPSCREW HEXAGON HEAD CAP
-
137517821 SCREW HEXAGON HEAD CAPSCREW HEXAGON HEAD CAP
-
147517856 SCREW HEXAGON CAP (M-10 ONLY)SCREW HEXAGON CAP (M-10 ONLY)
-
157552603 WASHER, SPRING LOCK (QTY. 2 ACE)WASHER, SPRING LOCK (QTY. 2 ACE)
-
167556042 WASHER FLAT (QTY. 2 ACE)WASHER FLAT (QTY. 2 ACE)
-
175132583 BLOCK SHOCK PIVOT ADJUSTER (M-10 ONLY)BLOCK SHOCK PIVOT ADJUSTER (M-10 ONLY)
-
187710444 RING, RETAININGRING, RETAINING
-
193514384 BEARINGBEARING
-
207517921 SCREW, HEXAGONSCREW, HEXAGON
-
217517857 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
225411994 TRACK 121"X1" SHOCKWAVETRACK 121"X1" SHOCKWAVE
-
225411963 TRACK 121"X1.25" SHOCKWAVETRACK 121"X1.25" SHOCKWAVE
-
225222840 CLIP, GUIDECLIP, GUIDE
-
235333902 SPACER SHOCK CENTERING (QTY. 1 ACE)SPACER SHOCK CENTERING (QTY. 1 ACE)
-
245411965 O-RINGO-RING
-
245411092 O-RING (ACE)O-RING (ACE)
-
255132793 SHAFT TAPERED (QTY. 1 ACE)SHAFT TAPERED (QTY. 1 ACE)
-
265132586 LIMITER STRAP ATTACH (LOWER) (LIMITER, STRAP)LIMITER STRAP ATTACH (LOWER) (LIMITER, STRAP)
-
277556301 BUSHINGBUSHING
-
285330394 SPACER BOGIE (INNER)SPACER BOGIE (INNER)
-
291541530-244 WHEEL, 5.35, .75IDW/IN ASSY (SILVER)WHEEL, 5.35, .75IDW/IN ASSY (SILVER)
-
305132490 SHAFTSHAFT
-
317558402 WASHER, FLATWASHER, FLAT
-
325333477-067 TUBE (BLACK)TUBE (BLACK)
