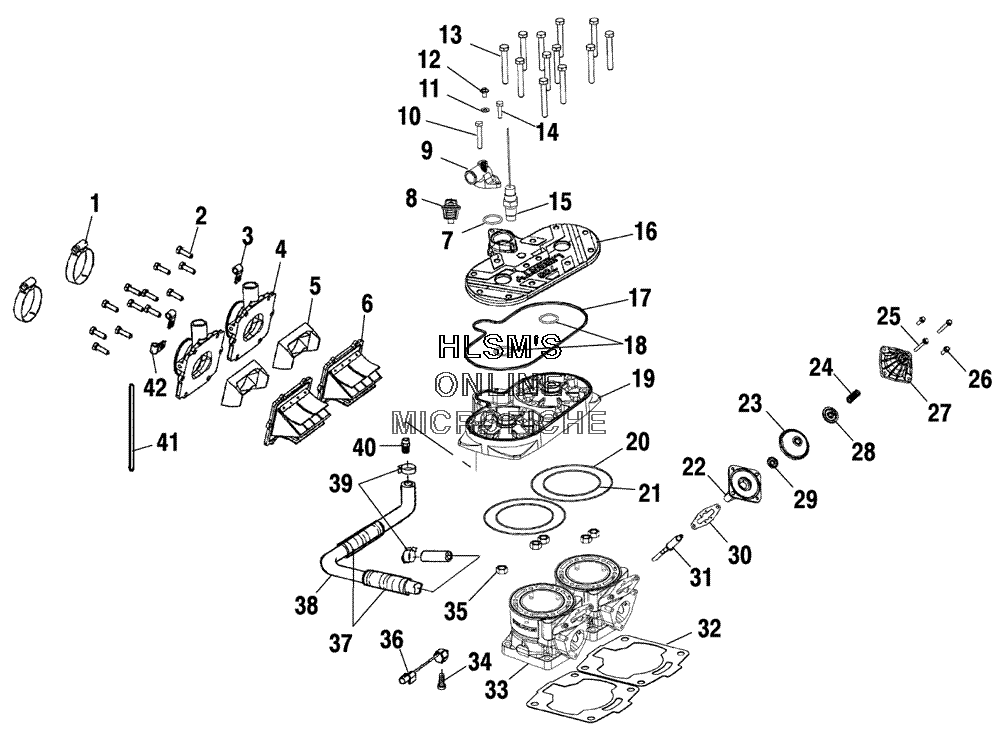

CYLINDER ASSEMBLY для Polaris 800 CLASSIC (S04ND7CS) - 2004 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253327 ADAPTER, CARBURETOR 40MMADAPTER, CARBURETOR 40MM
-
55433151 STUFFER REED BLOCK NOKSTUFFER REED BLOCK NOK
-
61201825 VALVE, REED ASSYVALVE, REED ASSY
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052258 THERMOSTAT 120ШF W/O BYPASSTHERMOSTAT 120ШF W/O BYPASS
-
95631391 COVER, THERMOSTAT M6 BLEED MACHCOVER, THERMOSTAT M6 BLEED MACH
-
107516818 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREW HEXAGON FLANGE ZSCREW HEXAGON FLANGE Z
-
137517534 SCREWSCREW
-
147516822 SCREWSCREW
-
154010398 SENSOR THERMISTERSENSOR THERMISTER
-
165631427-329 COVER HEAD (LIBERTY BLACK)COVER HEAD (LIBERTY BLACK)
-
175411294 SEAL, RUBBER HEADSEAL, RUBBER HEAD
-
185410917 O-RINGO-RING
-
193021427 HEAD CYLINDER (85MM 3/8 DETON)HEAD CYLINDER (85MM 3/8 DETON)
-
205412232 O-RINGO-RING
-
215411675 O-RING HI-TMPO-RING HI-TMP
-
221202216 BASE EXHAUST VALVE DOM ASSYBASE EXHAUST VALVE DOM ASSY
-
235412399 BELLOWS, EXHAUST MODIFIEDBELLOWS, EXHAUST MODIFIED
-
247041786-11 SPRING COMP (PINK/YELLOW)SPRING COMP (PINK/YELLOW)
-
257517932 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
267516820 SCREWSCREW
-
271202640 HOUSING W/BUSHING ASSYHOUSING W/BUSHING ASSY
-
285831152 CAP/NUT, BELLOWS EXHAUST VALVE DOMCAP/NUT, BELLOWS EXHAUST VALVE DOM
-
295132950 WASHER BELLOWS, EXHAUST VALVE DOMWASHER BELLOWS, EXHAUST VALVE DOM
-
305812350 GASKET BASE TO CYLINDER EXHAUST VALVEGASKET BASE TO CYLINDER EXHAUST VALVE
-
315133775 VALVE, GUILLOTINEVALVE, GUILLOTINE
-
325812362 GASKET CYLINDER BASE METAL 700GASKET CYLINDER BASE METAL 700
-
333021339 CYLINDER 85MM EV W/ DECOMCYLINDER 85MM EV W/ DECOM
-
347517262 SCREW HEXAGON FLANGESCREW HEXAGON FLANGE
-
357547013 NUTNUT
-
362410369 SENSOR DETONATION BOSCHSENSOR DETONATION BOSCH
-
375521398-96 CONDUIT, FLEX (.75"ID)CONDUIT, FLEX (.75"ID)
-
385411536 HOSE, BYPASSHOSE, BYPASS
-
397081030 CLAMP BYPASS NORMA #24-15CLAMP BYPASS NORMA #24-15
-
407052222 FITTING, 1/2ID. HOSEFITTING, 1/2ID. HOSE
-
417080654 RETAINERRETAINER
-
427080880 CLAMP HOSE, .625 DIA VINYL COATEDCLAMP HOSE, .625 DIA VINYL COATED
