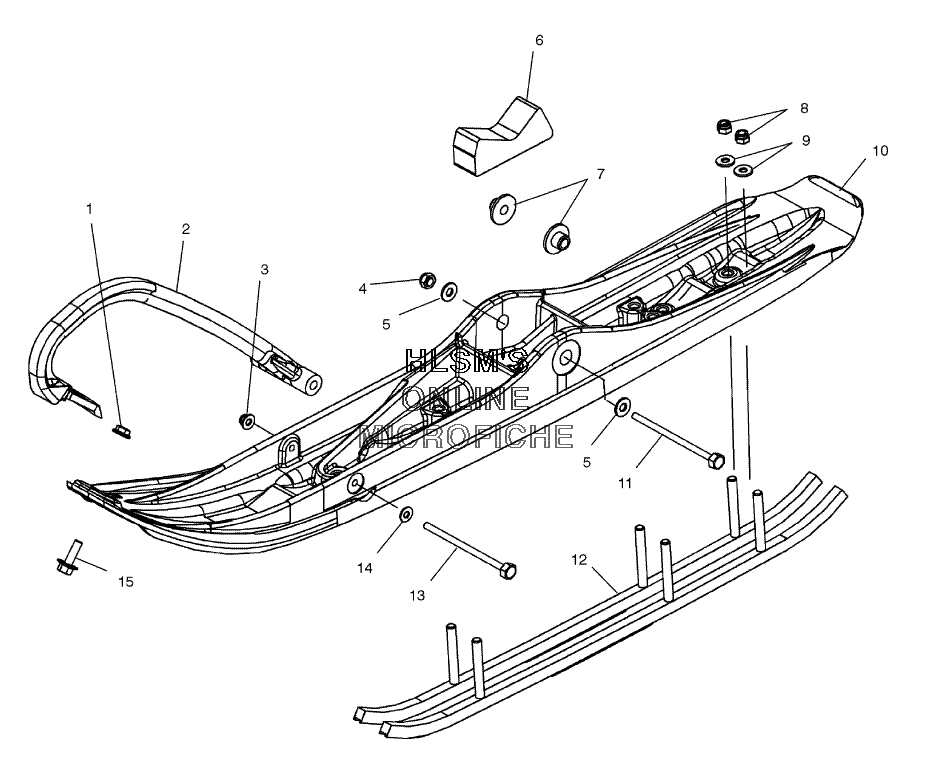

SKI ASSEMBLY для Polaris 800 CLASSIC (S04ND7CS) - 2004 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
25434618-385 TOE PLASTIC SKI RMK (CLOUD SILVER)TOE PLASTIC SKI RMK (CLOUD SILVER)
-
37542122 NUT, NYLOKNUT, NYLOK
-
47542439 NUT, NYLOKNUT, NYLOK
-
57556130 WASHERWASHER
-
65412018 STOP, RUBBERSTOP, RUBBER
-
75132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
87542324 NUT, NYLOKNUT, NYLOK
-
97555843 WASHER, WROUGHTWASHER, WROUGHT
-
101821451-070 SKI BLANK, ACCU TRAK DUAL ASSY (BLACK)SKI BLANK, ACCU TRAK DUAL ASSY (BLACK)
-
117517968 SCREW, HEXAGON CAP-YSCREW, HEXAGON CAP-Y
-
122874851 SKAG, KIT (1 PAIR)SKAG, KIT (1 PAIR)
-
137518047 BOLT, HEXAGON CAPBOLT, HEXAGON CAP
-
147558301 WASHER, FLATWASHER, FLAT
-
157518070 SCREWSCREW
