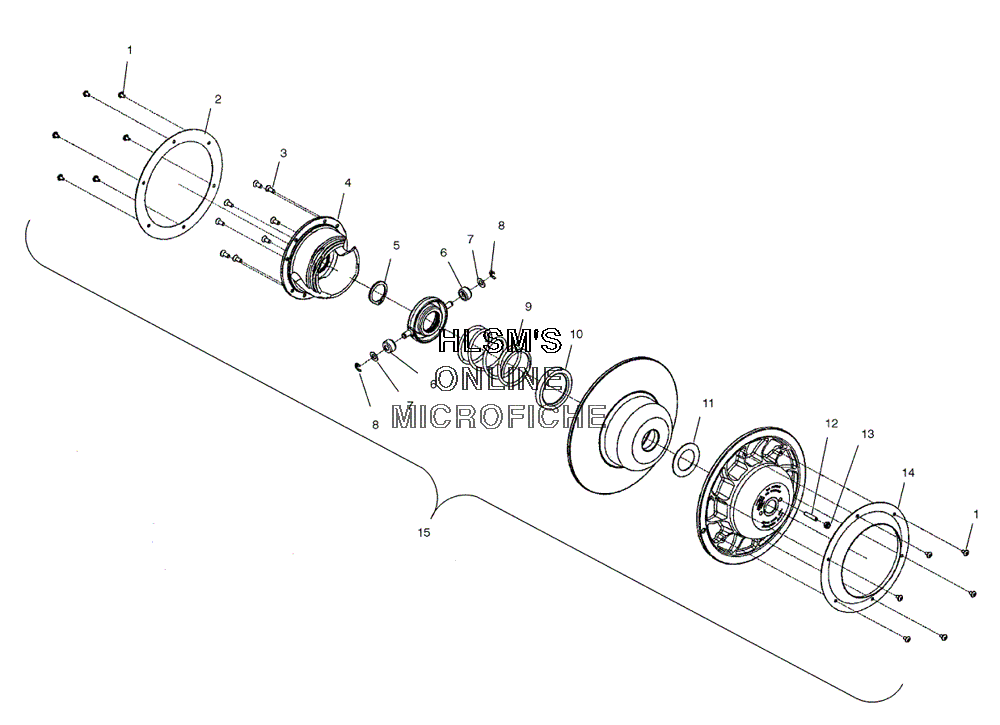

CLUTCH - DRIVEN для Polaris SUPERSPORT M-10 (S04NP5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17518023 SCREW THEADSCREW THEAD
-
25246216 PLATE WINDAGE MOVPLATE WINDAGE MOV
-
33233996 SCREW CAP TORXSCREW CAP TORX
-
45133887 RAMP DRIVENRAMP DRIVEN
-
57710522 RETAINING RING EXTENSIONRETAINING RING EXTENSION
-
65434534 ROLLERROLLER
-
77556226 WASHER THRUSTWASHER THRUST
-
87710523 RETAINING RING EXTENSIONRETAINING RING EXTENSION
-
97042137 SPRING DRIVEN CLUTCH (LEFT/RED/BLUE)SPRING DRIVEN CLUTCH (LEFT/RED/BLUE)
-
107556227 WASHER THRUSTWASHER THRUST
-
113234033 SPACERSPACER
-
127518024 SCREW SET HEXAGON SKTSCREW SET HEXAGON SKT
-
137542103 NUT, FLEXLOCNUT, FLEXLOC
-
145246217 PLATE WINDAGE STATPLATE WINDAGE STAT
-
151322321 DRIVEN CLUTCH BASIC ASSYDRIVEN CLUTCH BASIC ASSY
