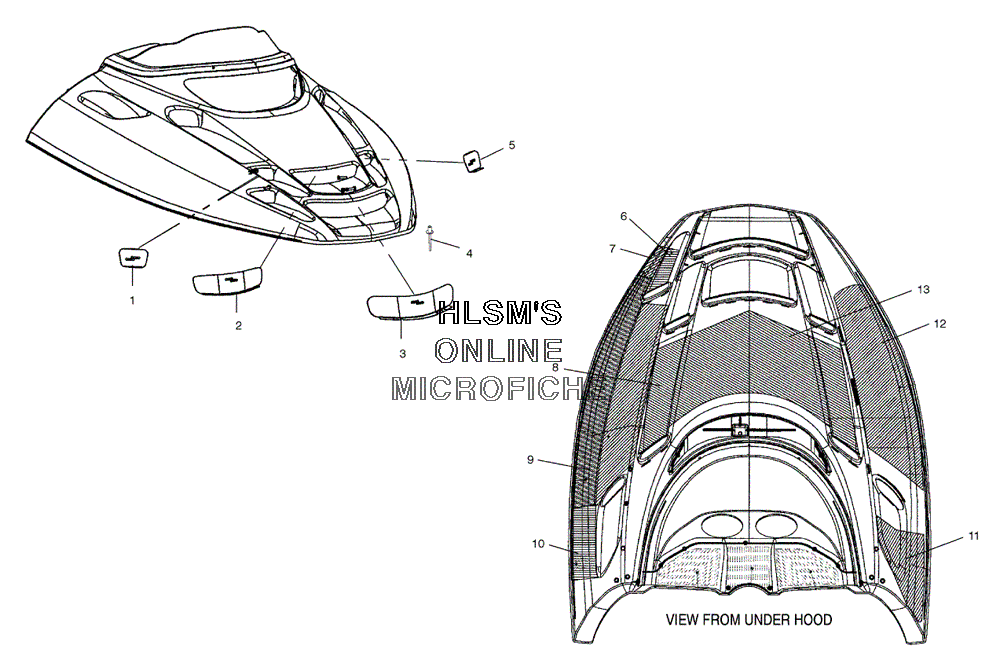

HOOD - FOAM/FOIL/SCREENS для Polaris SUPERSPORT M-10 (S04NP5BS) - 2004 года выпуска
-
№АртикулНазвание
-
15243465-067 SCREEN HOOD, NOSTRIL (RIGHT/BLACK)SCREEN HOOD, NOSTRIL (RIGHT/BLACK)
-
25243463-067 SCREEN HOOD, LOUVER (REAR/BLACK)SCREEN HOOD, LOUVER (REAR/BLACK)
-
35243462-067 SCREEN, HOOD, LOUVER (FRONT/BLACK)SCREEN, HOOD, LOUVER (FRONT/BLACK)
-
47621334 RIVETRIVET
-
55243464-067 SCREEN HOOD, NOSTRIL (LEFT/BLACK)SCREEN HOOD, NOSTRIL (LEFT/BLACK)
-
65812424 FOIL, LOUVER (RIGHT)FOIL, LOUVER (RIGHT)
-
75812061 FOIL, TAPE (4X4)FOIL, TAPE (4X4)
-
85812107 FOIL (RIGHT)FOIL (RIGHT)
-
95812106 FOIL (RIGHT)FOIL (RIGHT)
-
105810345 FOIL, TAPEFOIL, TAPE
-
115812270 FOAM (REAR/LEFT)FOAM (REAR/LEFT)
-
125812286 FOAM (FRONT/LEFT)FOAM (FRONT/LEFT)
-
135812007 FOAM, CENTERFOAM, CENTER
