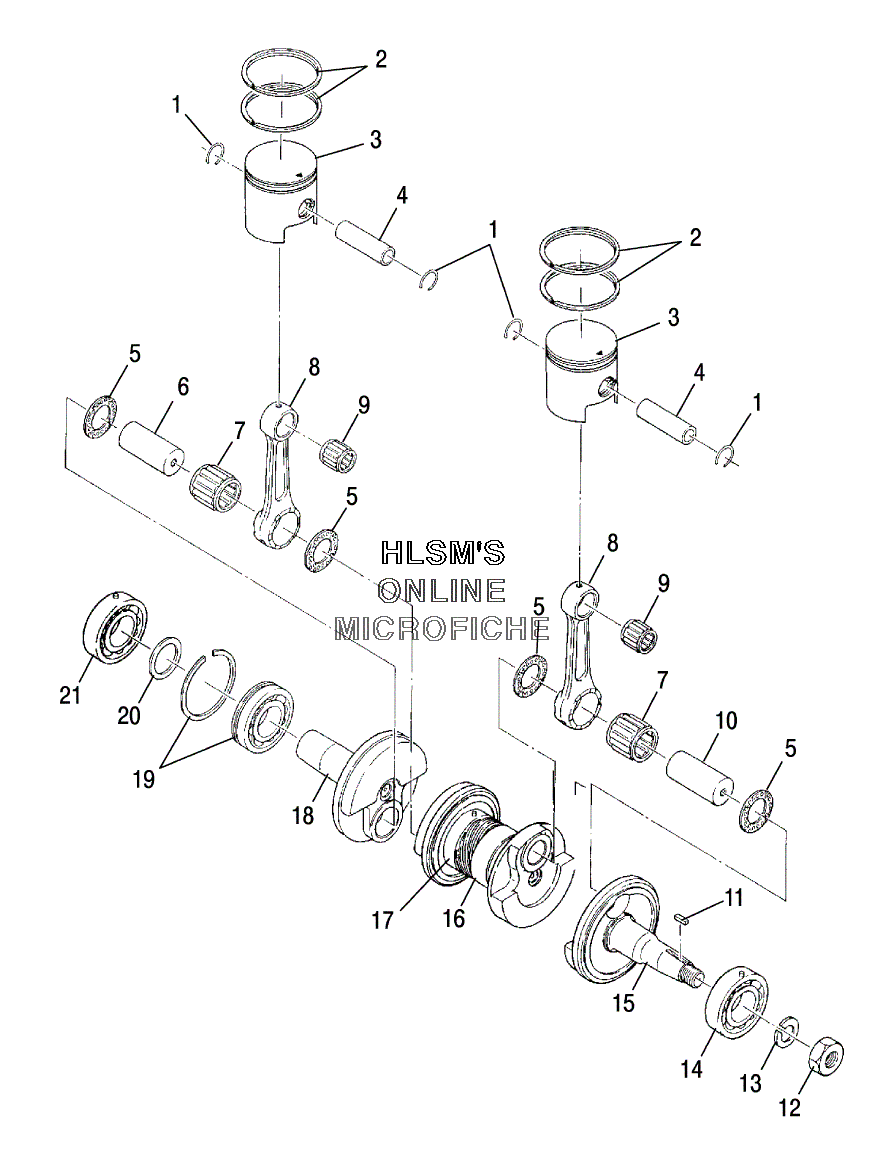

PISTON AND CRANKSHAFT для Polaris 500 CLASSIC (S05ND4BS) - 2005 года выпуска
-
№АртикулНазвание
-
13083839 CLIP, PISTON PINCLIP, PISTON PIN
-
23084342 PISTON, RING (STANDARD)PISTON, RING (STANDARD)
-
23084343 SET, PISTON RING (.010"/.25MM)SET, PISTON RING (.010"/.25MM)
-
23084344 SET, PISTON RING (.020"/.50 MM O/S)SET, PISTON RING (.020"/.50 MM O/S)
-
33084339 SET, PISTON (STANDARD)SET, PISTON (STANDARD)
-
33084340 SET, PISTON (.010"/.25MM O/S)SET, PISTON (.010"/.25MM O/S)
-
33084341 SET, PISTON (.020"/.50MM O/S)SET, PISTON (.020"/.50MM O/S)
-
43083858 PIN, PISTONPIN, PISTON
-
53083277 SPACER, CRANKPINSPACER, CRANKPIN
-
63083456 PIN, CRANK 2 (57MM)PIN, CRANK 2 (57MM)
-
73085628 BEARING, LARGE ENDBEARING, LARGE END
-
83083252 ROD CONNECTINGROD CONNECTING
-
93085595 BEARING, SMALL ENDBEARING, SMALL END
-
103083233 PIN, CRANK 1 (56MM)PIN, CRANK 1 (56MM)
-
113081543 KEY WOODRUFFKEY WOODRUFF
-
123083093 NUTNUT
-
133083094 WASHER SPRINGWASHER SPRING
-
143086878 BEARING, BALLBEARING, BALL
-
153087260 CRANKSHAFT AYCRANKSHAFT AY
-
153086835 CRANKSHAFT 1 (MAG SIDE)CRANKSHAFT 1 (MAG SIDE)
-
163083713 CRANKSHAFT 2 (INCL. 6, 10)CRANKSHAFT 2 (INCL. 6, 10)
-
173084601 BEARING, BALLBEARING, BALL
-
183087261 CRANKSHAFT 3 (PTO SIDE)CRANKSHAFT 3 (PTO SIDE)
-
193085204 BALL BEARINGBALL BEARING
-
203085203 SPACERSPACER
-
213085205 BALL BEARINGBALL BEARING
