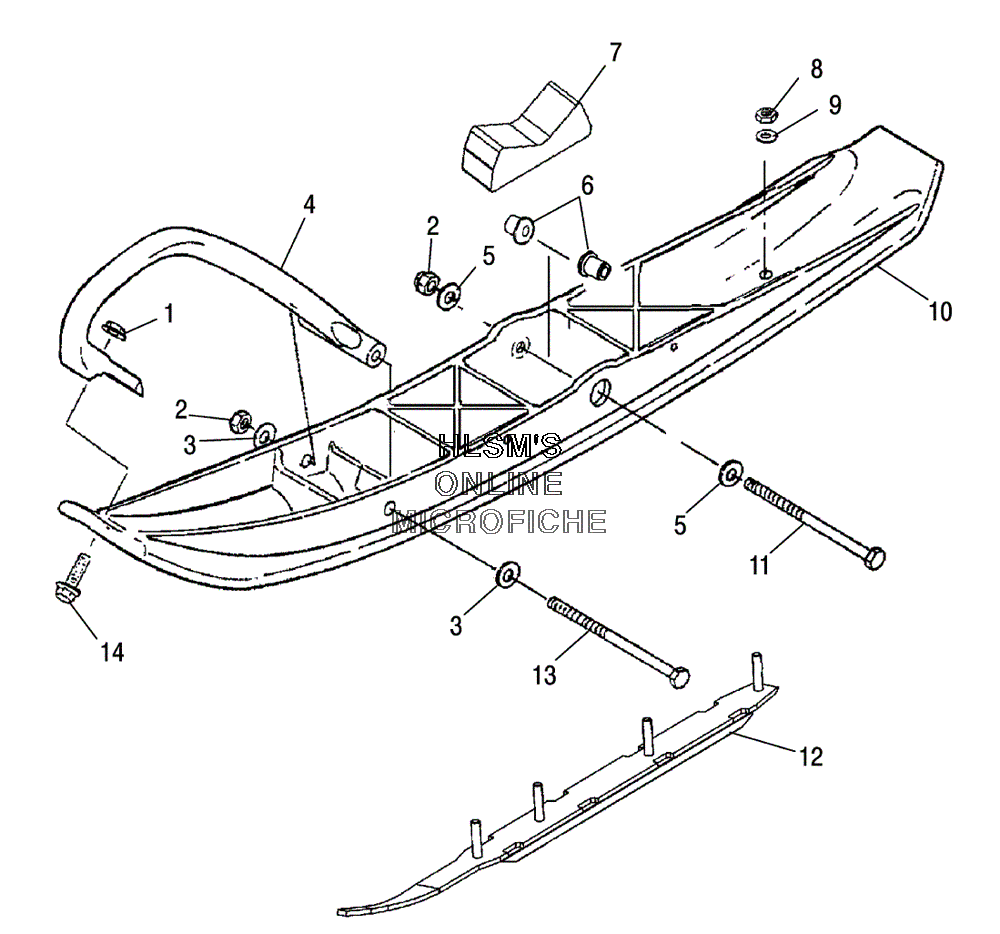

SKI ASSEMBLY для Polaris 500 CLASSIC (S05ND4BS) - 2005 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542439 NUT, NYLOKNUT, NYLOK
-
37555832 WASHERWASHER
-
45434165-385 TOE PLASTIC SKI (CLOUD SILVER)TOE PLASTIC SKI (CLOUD SILVER)
-
57556130 WASHERWASHER
-
65132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
75412018 STOP, RUBBERSTOP, RUBBER
-
87542324 NUT, NYLOK (QTY. 8 FOR DUAL, QTY. 6 FOR STD.)NUT, NYLOK (QTY. 8 FOR DUAL, QTY. 6 FOR STD.)
-
97556175 WASHER (QTY. 8 FOR DUAL, QTY. 6 FOR STD.)WASHER (QTY. 8 FOR DUAL, QTY. 6 FOR STD.)
-
101820929-070 COMPRESSION SKI, BLANK SERVICE ASSY (BLACK)COMPRESSION SKI, BLANK SERVICE ASSY (BLACK)
-
117517968 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
122874752 SKAG ACCU TRAC DUALSKAG ACCU TRAC DUAL
-
137515514 BOLTBOLT
-
147515307 BOLTBOLT
